2-5. Presser foot Up/Down (TMBR-SC only)
When the machine stops, the movement of the presser foot can be switched to three steps by the operation
panel. It is also possible to start the operation in the state that the presser foot has lowered.
This function can be operated also at "F4-1: Presser foot Up/Down". (p.153)

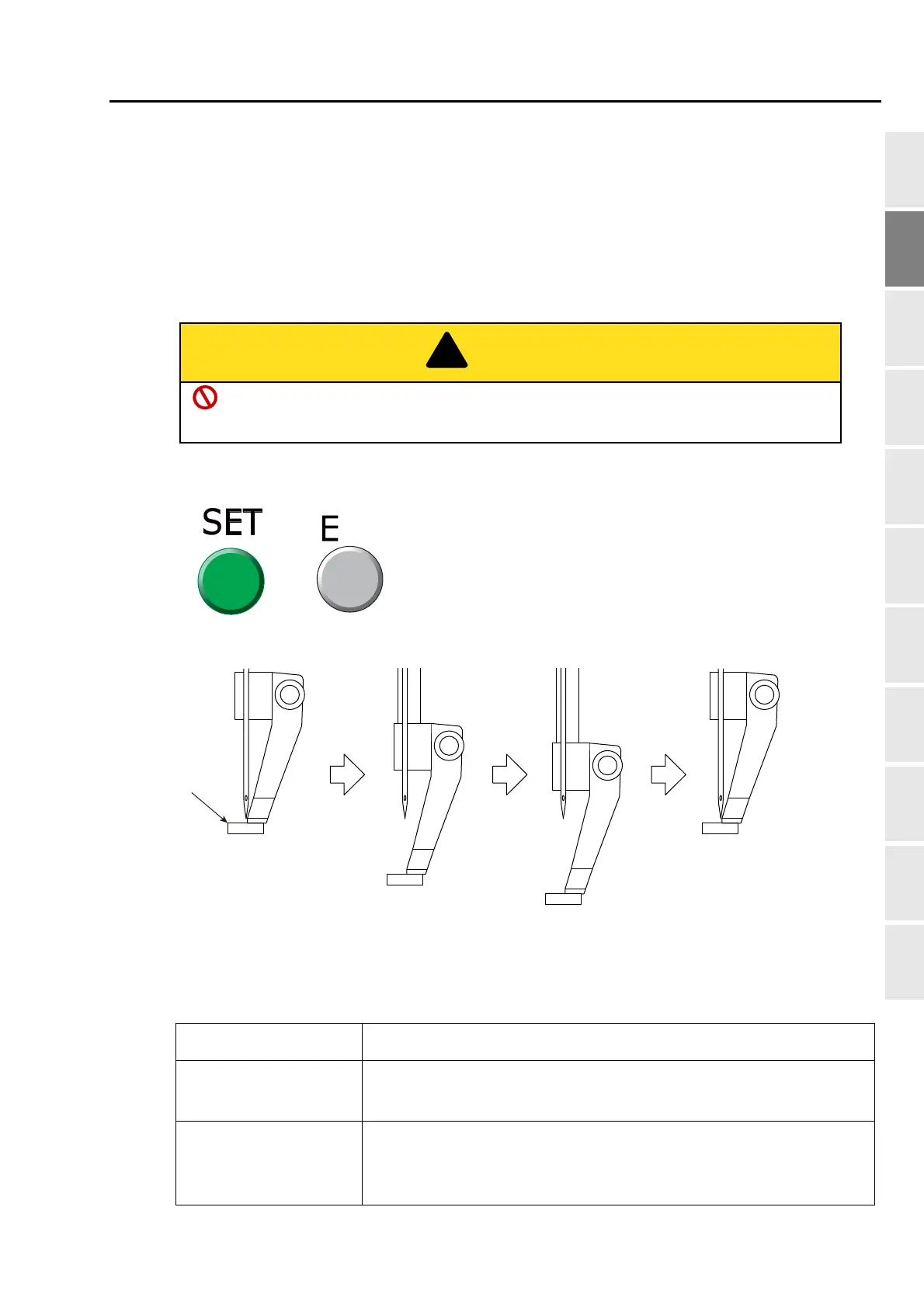

[Method of Presser foot Up/Down]
Press E key while pressing SET key.
By repeating this operation, the presser foot will perform the following movements.
When performing this operation, do not put your hands, etc near the needle or on the
table. Moving up/down of the presser foot could injure you.
Retractable position When the machine stops, the presser foot is at this position.
FB position
The presser foot on the head with thread broken is located to this
position when performing Frame Back.
Lower dead point
It means the lower dead point of the presser foot. (The position that
lowered most) When you want to check the current selected needle bar
No. and thickness of the fabric, set to this position.
CAUTION
!
Retractable position
FB position
Lower dead point
Presser foot
(Frame Back position)
The lower dead point and FB position will be applied by
values of "F4-2: Presser foot". (p.63)
