191
OPTIONS

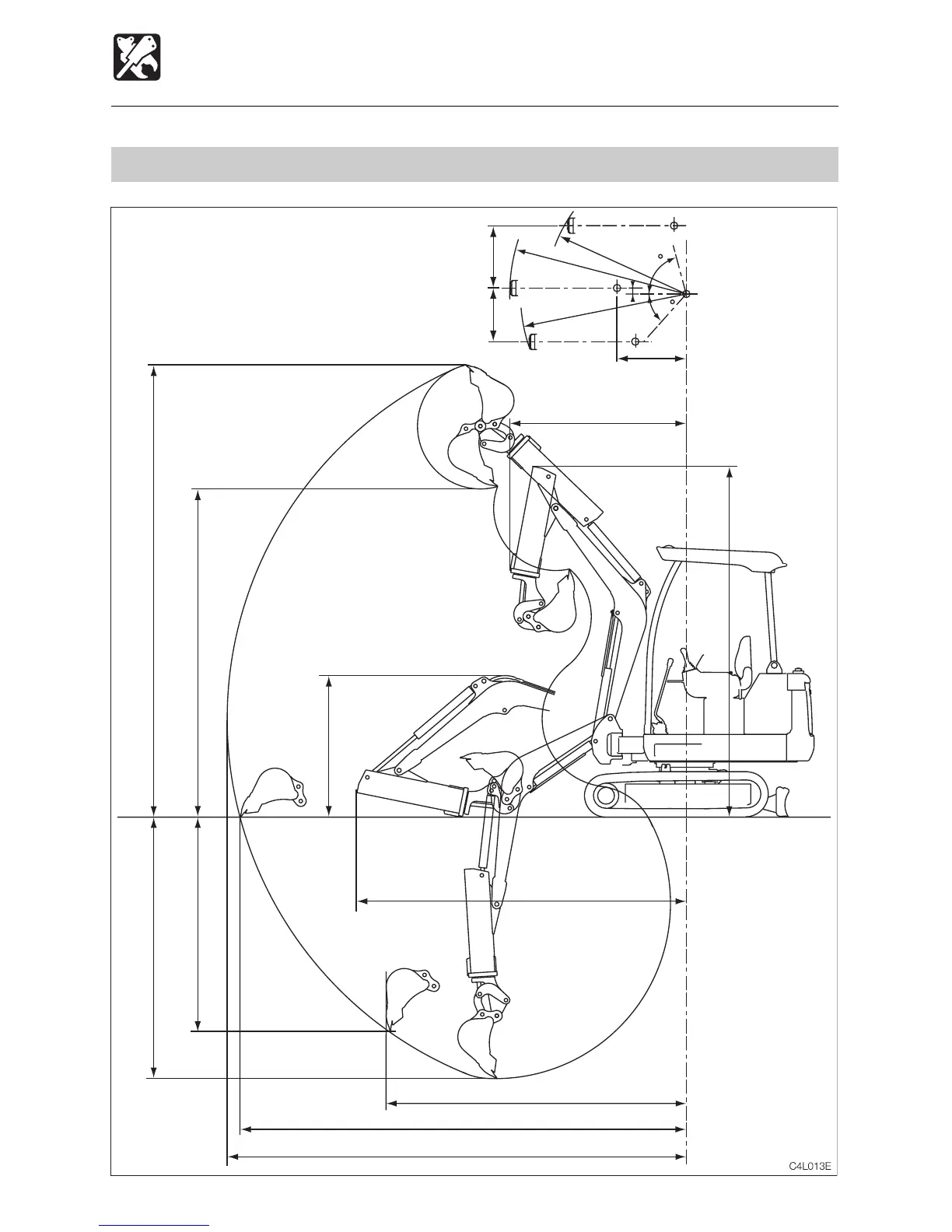

Operating Ranges TB016 Canopy (Fully Retracted Arm)
Telescopic Arm
3755(147.8) Max. digging height
2170(85.4) Max. digging depth
1775(69.9) Max. vertical digging depth
2490(98.0)
3810(150.0) Max. digging radius
3705(145.9) Max. ground digging radius
2735(107.7) in Transport position
2725(107.3) Max. dumping height
1175(46.3) in Transport position
2910(114.6)
Values are indicated in units of mm, inches in( ).
Bucket offset
520(20.5)445(17.5)
R1160(45.7)
R1465(57.7)
R1375(54.1)
50(2.0)
575(22.6)
1465(57.7)
Front slewing radius
75
50
