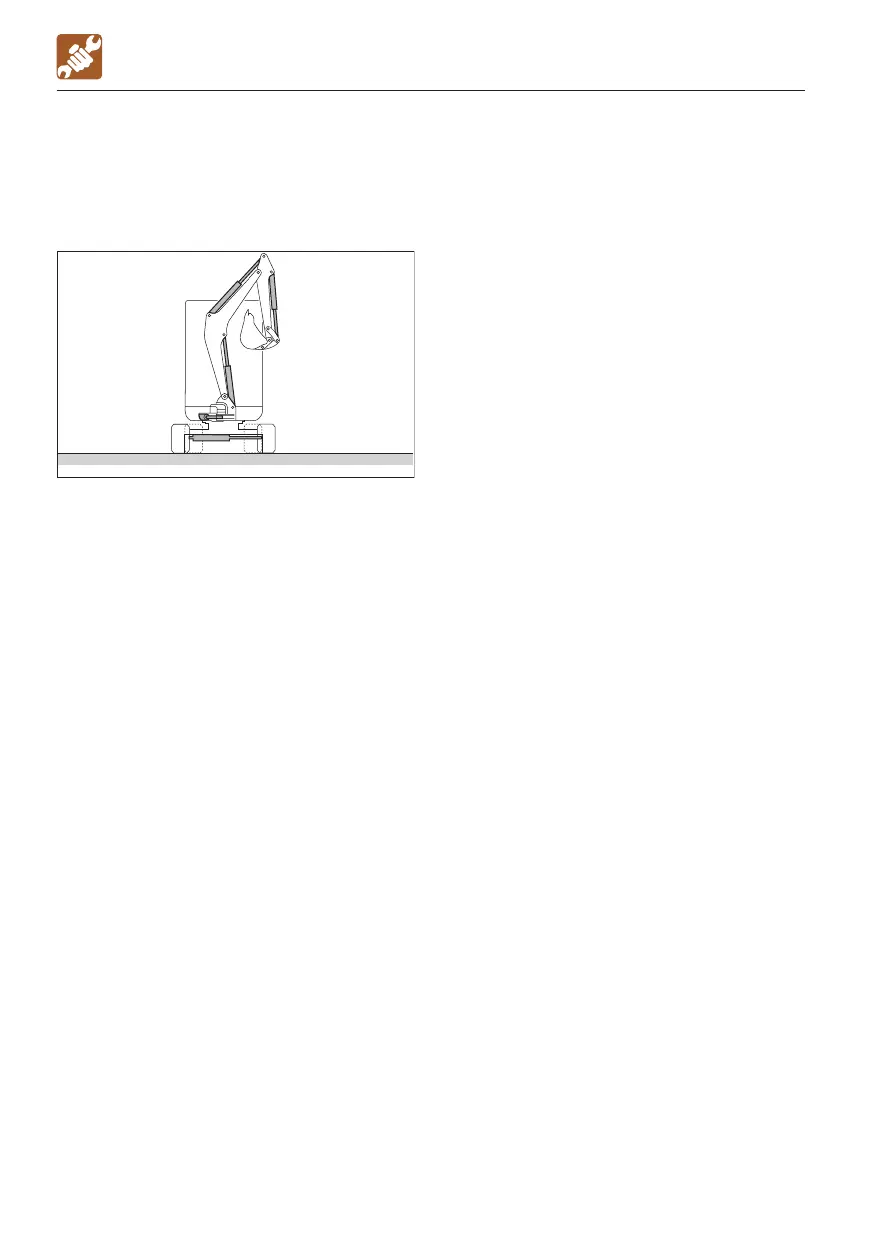

5-20
MAINTENANCE
DAIL
Y INSPECTION (EVER
Y 10 HOURS)
Pressurizing the hydraulic tank
1.
Start the engine and run it at low speed.
2.
W
ith the vent plug (2) removed, set the
safety lock levers to the released position.
·
Hydraulic tank pressurization postur
e
3.
Fully extend the bucket, arm, boom, swing
and span cylinders.
4.
Stop the engine and raise the left safety
lock lever to engage the lock.
5.
Tighten the vent plug (2), and then
pressurize by r
etracting the cylinders.
AD6G009
