2-20
CONTROLS

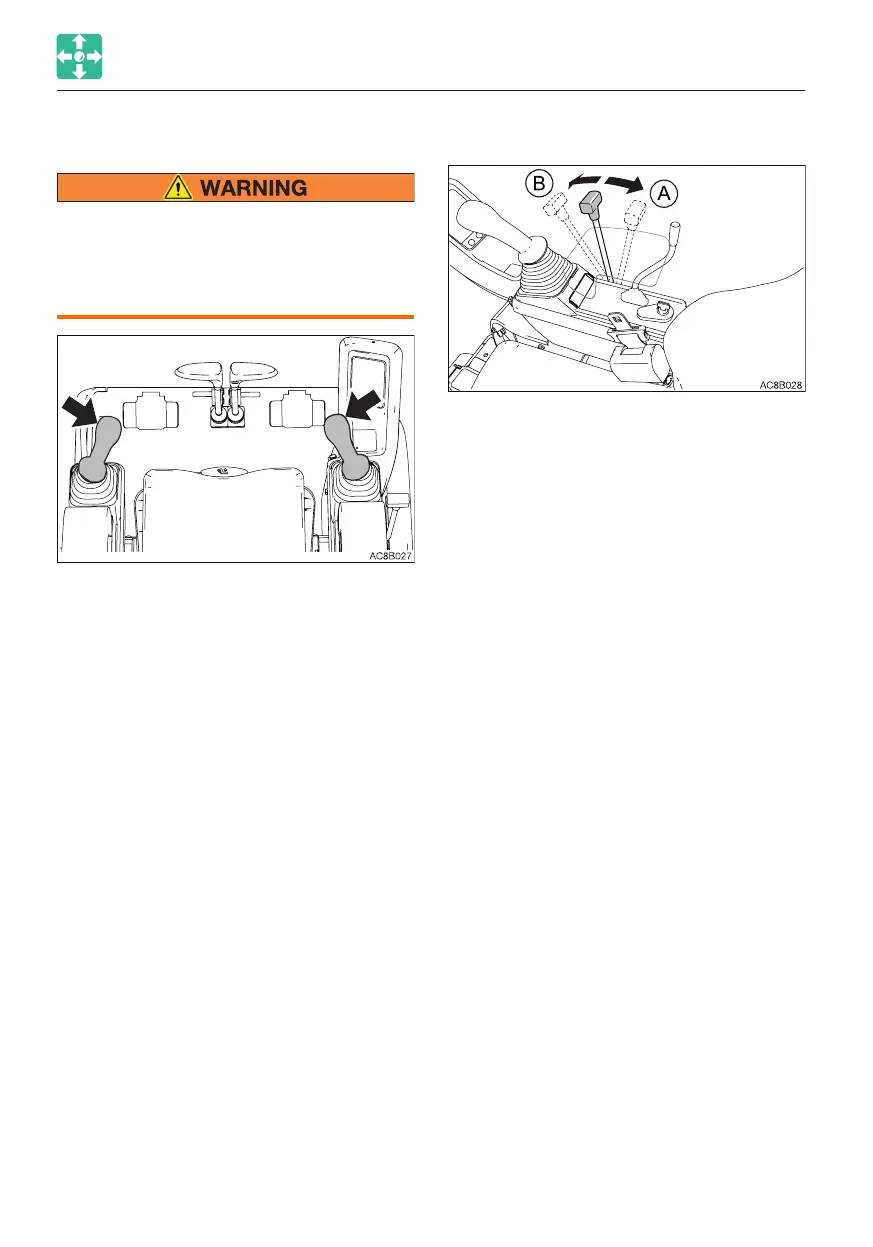

OPERATING LEVERS
• Before starting operation, carefully
check which lever pattern you are going
to use.
•
It is described using the ISO pattern in
this manual.
Use these levers to operate the boom, arm,
bucket and upperstructur
e.
Refer to “Lever pattern” on pages 3-6 and
3-7.
Refer to “Operating the working equipment”
on pages 3-16 and 3-17.
BLADE LEVER
LEVERS AND PEDALS
Use this lever to operate the dozer blade.
(A) .......Blade up
(B) ......Blade down
Refer to “Operating the dozer blade” on
page 3-17.
