CONTROLS
SEAT AND SEAT BELT
SEAT (IF EQUIPPED)
Adjust and secure the seat.
SEAT AND SEAT BELT
(A) Adjusting the backrest angle
1. Sit up and sit back in the chair.
2. Set the backrest to the desired angle by
turning the handle (1).
(B) Fore-and-aft adjustment
1. Pull up the lever (2) and slide the seat
backward or forward to the desired
position for operation of machine.
2.
Release the lever (2) at the desired
position to secure the seat.
Adjustment range: 10 positions, in 150
mm (5.9 in.)
(C) Adjusting accor
ding to operator’s
weight
1.
Move the lever (3) to set it according to
the weight of operator.
Position of the lever (3)
Upper ...... Light weight operator
Middle ..... Medium weight operator
Lower ...... Heavy weight operator

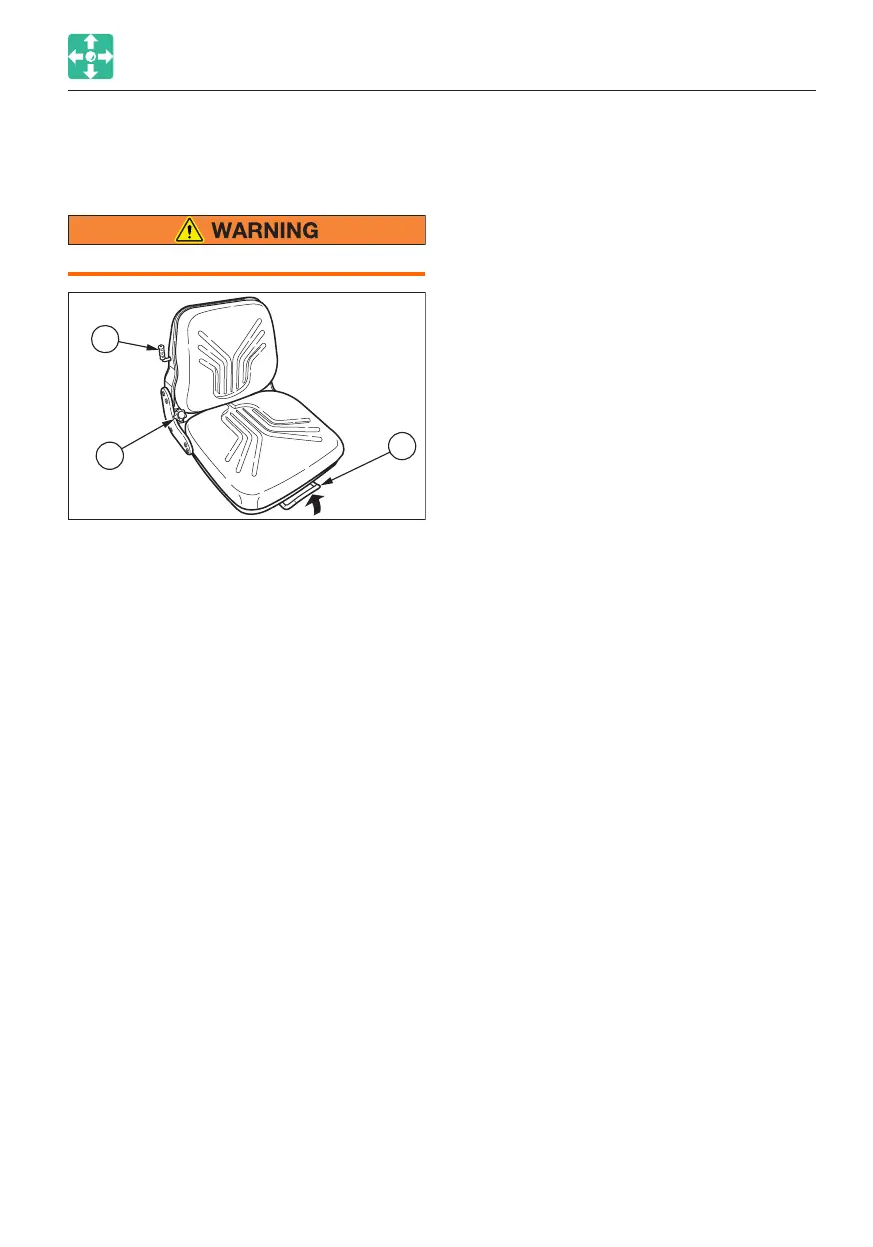

AD6B017
3
1
2
