5-25
MAINTENANCE
AFTER THE INITIAL 50 HOURS (ONL
Y FOR NEW MACHINES)
4.

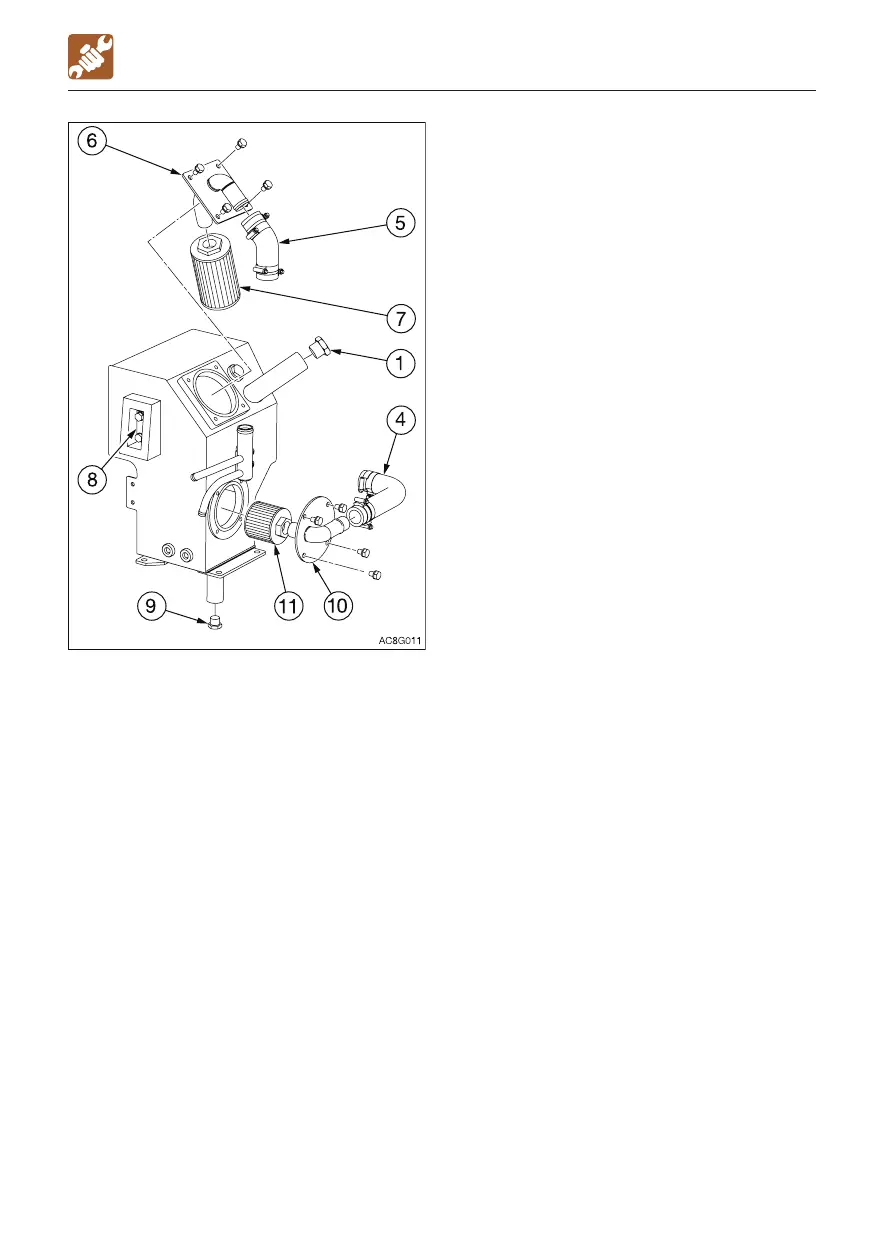

Loosen the hose bands and remove the
hose (5) from the flange (6).
5.
Loosen the bolts to take out the flange (6).
6.
Remove the return filter (7).
7.
Install a new return filter
.
8.
Reassemble the flange (6) and the hose
(5).
9.
Inspect the level with the sight gauge (8),
and replenish if the level is too low
.
Refer to “Inspecting the hydraulic oil tank
level and replenishing” on page 5-19.
