Takeuchi TB215R User Manual

2-25
CONTROLS
• When disconnecting hoses, stand to the
side and loosen them slowly to
gradually release the internal pressure
before removing.
These lines deliver the hydraulic oil necessary
for operating a hydraulic breaker, crusher or
other attachments.
(1)........First auxiliary hydraulic lines
(2)........Second auxiliary hydraulic lines
(3)........Thir
d auxiliary hydraulic lines
Stop valve
(S) : Closed
(O) : Open
Connecting the hydraulic cir
cuits
To connect the attachment hydraulic lines,
observe the following procedures:
1. Release the pressure remaining in the
lines, and then close the stop valve.
Refer to “Releasing the residual pressure”
on page 2-26.
2.
Remove the plugs.
3. Connect the attachment hydraulic lines to
ports (a/c) and (b/d). When installing a
hydraulic breaker, connect the supply
circuit to the port (a) and the return circuit
to port (b).
4.
Open the stop valves. When installing a
hydraulic breaker, open the selector valve
(1). Refer to “Selector valve” on page
2-26.
5.
When connecting is complete, purge air
from the hydraulic lines.
a. Start the engine and run it at a low idle
speed with no load for 10 minutes.
b.
With the engine running in low idle,
operate the auxiliary hydraulic switches
repeatedly (approx. 10 times) to purge
air from the hydraulic lines.
c. Stop the engine and wait for at least 5
minutes until bubbles escape from the
hydraulic oil in the tank.
IMPOR
TANT: Follow the procedures for
purging air as instructed by the
attachment manufactur
er, if applicable.
6. Check for oil leaks.
Disconnecting the hydraulic circuits
1. Release the pressure remaining in the
lines, and then close the stop valve.
Refer to “Releasing the residual pressure”
on page 2-26.
2.
Disconnect the lines from the ports (a/c)
and (b/d).
3.
Install the plugs.
Operating
ACCESSORIES
AD6B033
B
A

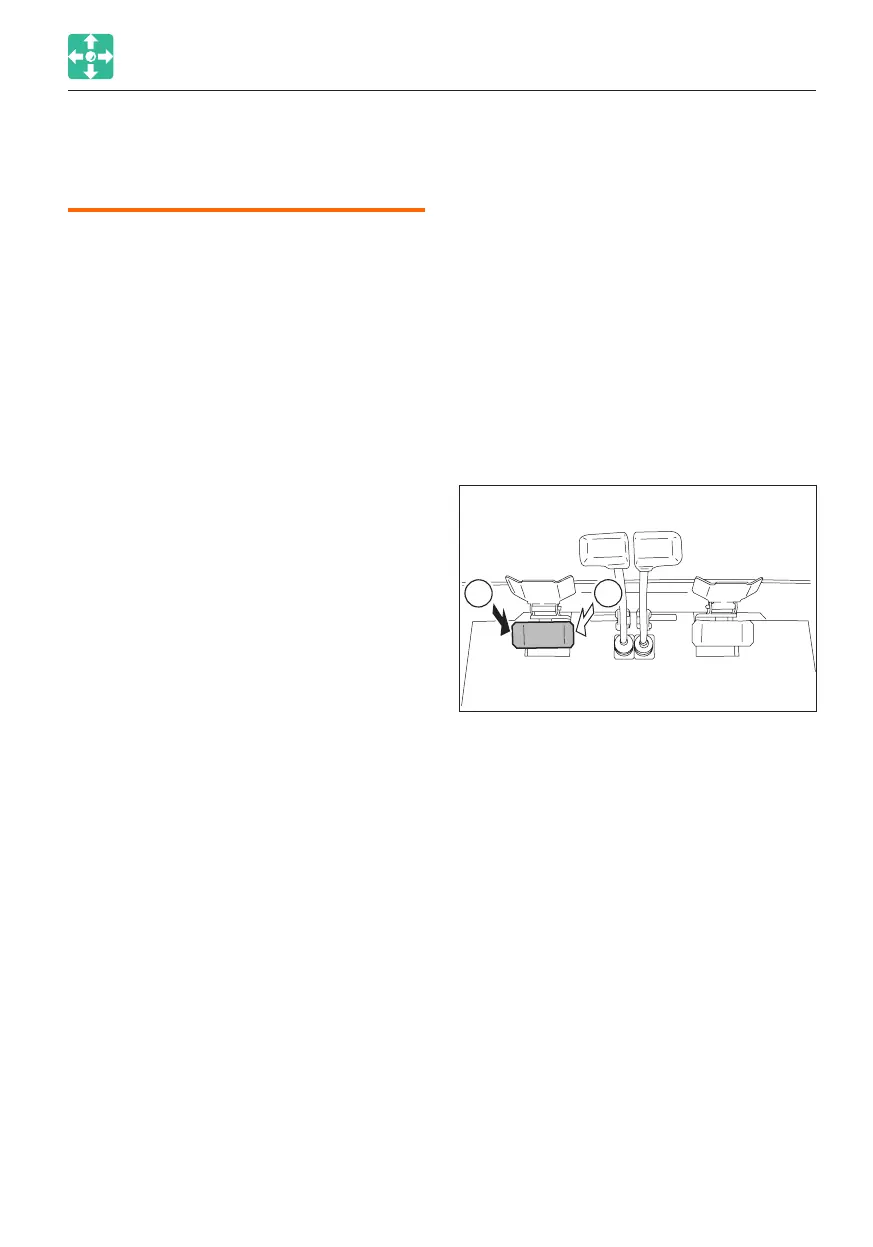

Press this pedal to control the flow of the oil
in the auxiliary hydraulic lines.
(A) ...... Hydraulic oil flows to left auxiliary line
(a).
(B) ..... Hydraulic
oil flows to right auxiliary line
(b).
Releasing the r
esidual pressure
After the auxiliary hydraulic circuits have
been used, pressure remains in the circuits.
This is called the residual pressure. Release
this residual pressure before disconnecting
the lines.
1.
When the engine is stopped, depress the
auxiliary hydraulic pedals from side to side
several times.
