8-5
OPTIONS

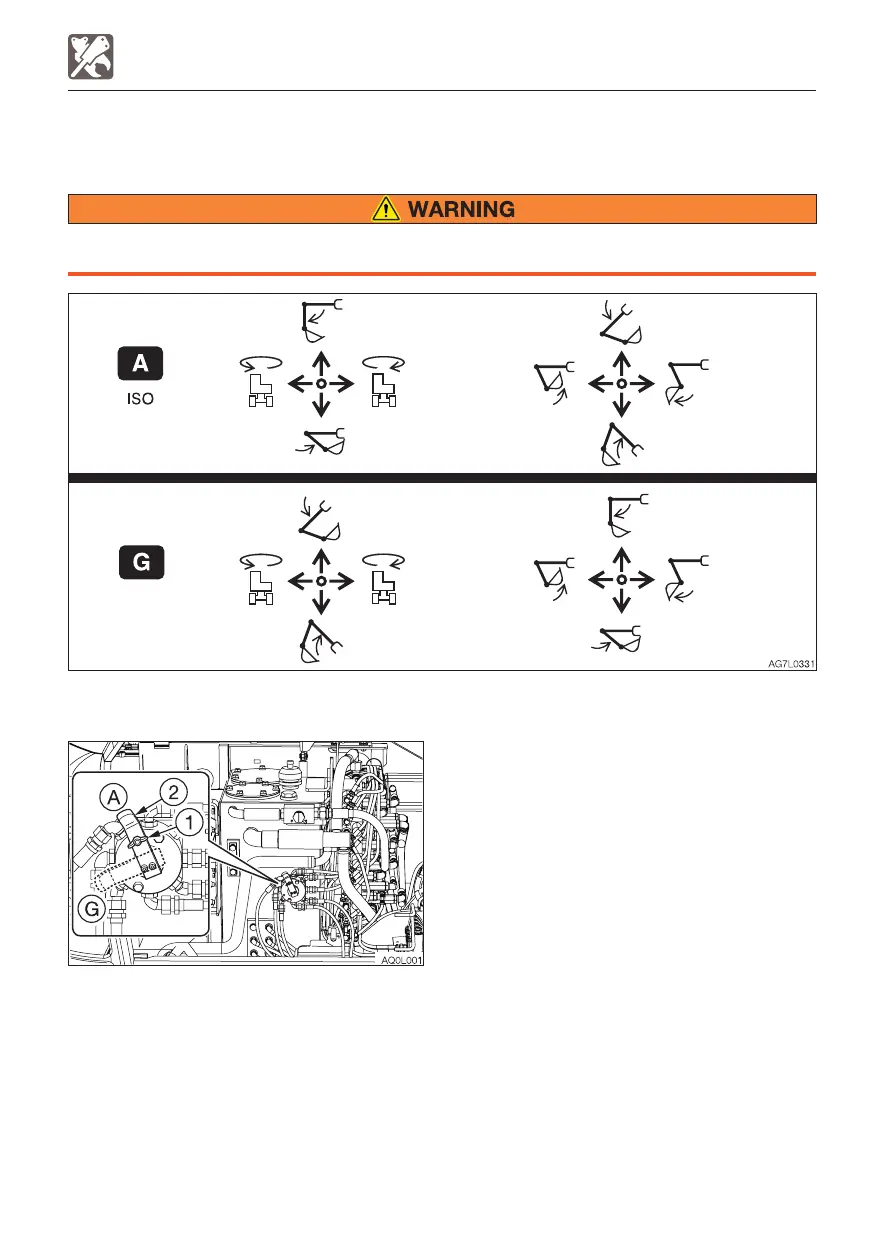

SELECTING A LEVER PATTERN
The operating pattern of the left and right operating levers can be changed.
Before starting the engine, check the selector to see which operating pattern the left
and right operating levers are set.
SELECTING A LEVER PATTERN
SWITCHING THE LEVER PATTERN
(A) : ISO pattern
(G) : G pattern
1. Park the machine on a flat and rigid
ground, and stop the engine.
2. Open the right side cover.
3. Loosen the wing bolt (1).
4. Turn the selector valve lever (2) to change
the pattern.
5. Tighten the wing bolt (1) and fasten the
lever (2) in place.
6. Close the right side cover.
7. Confirm the lever pattern.
