2-9
CONTROLS
COVERS
FUSE BO
X COVER

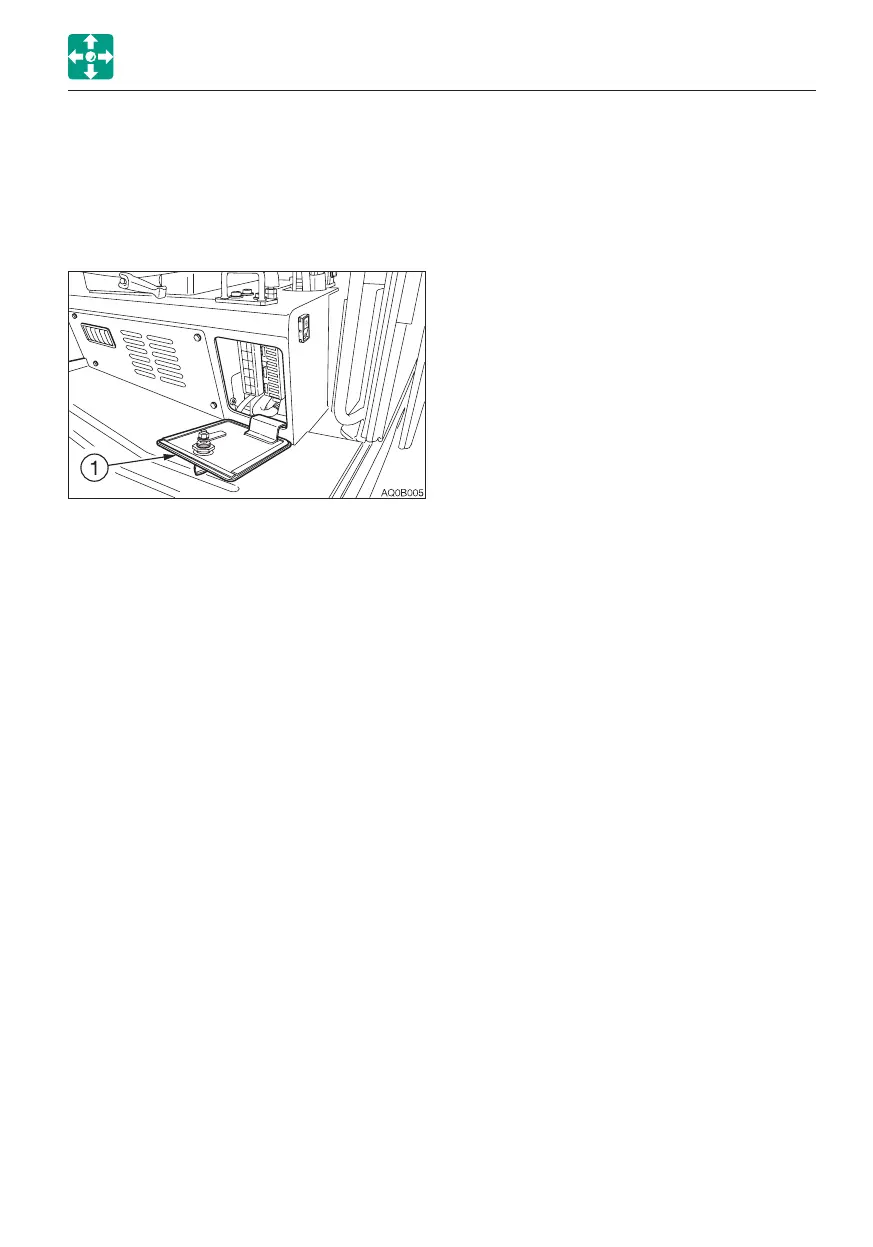

For inspection and maintenance of the fuse,
open this cover
.
Opening
1.
Insert the starter key and turn it
counterclockwise to unlock the fuse box
cover (1).
2.
Tilt the fuse box cover (1) forward.
Closing
1.
Close the fuse box cover (1) and turn the
key clockwise to lock it.
