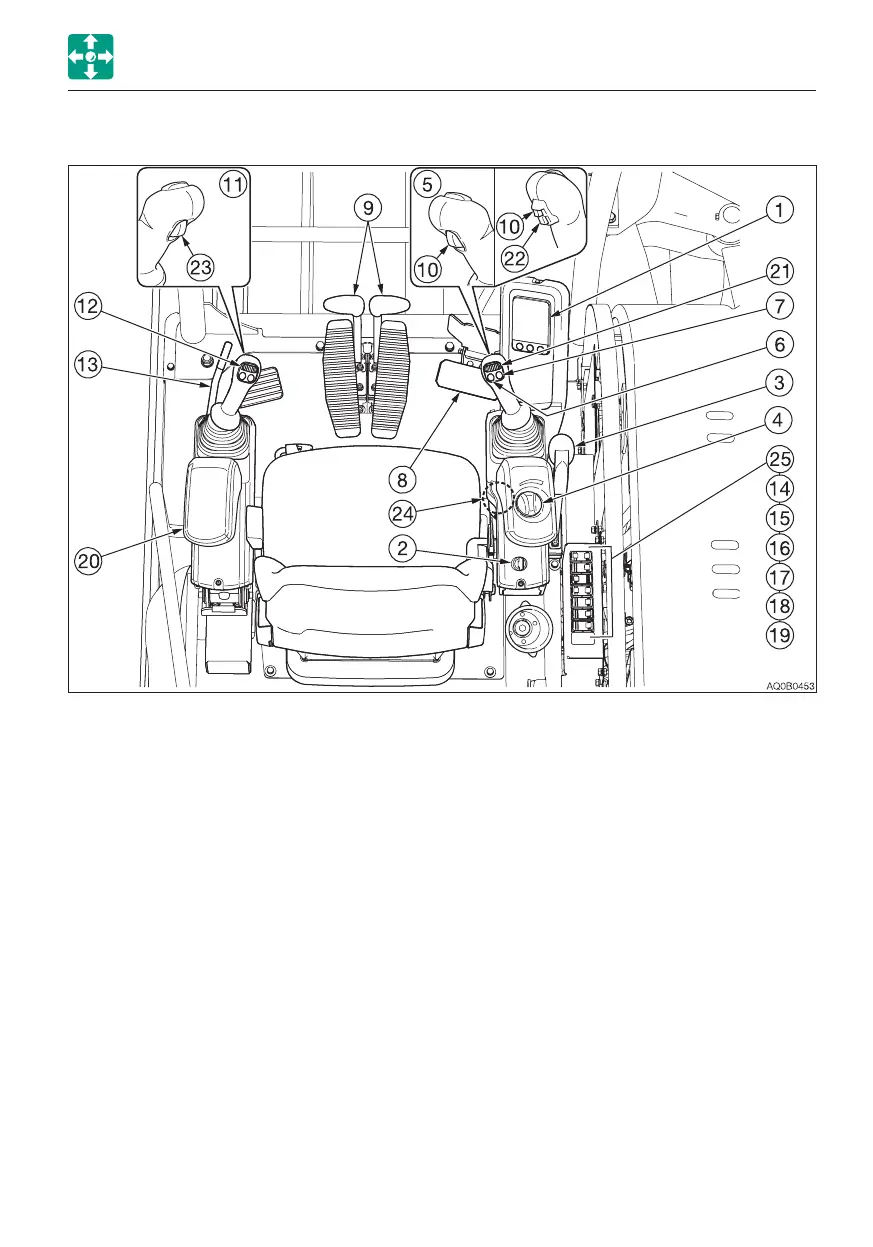

CONTROLS
1. Instrument cluster
2. Starter switch
3. Blade lever
4. Throttle controller
5. Right operating lever*
6. Horn button
7. Deceleration button
8. Boom swing pedal
9. Travel levers/pedals
10. Travel speed button
11. Left operating lever
12. Auxiliary 1st switches
13. Safety lock lever
NAMES OF COMPONENTS
14. Light switch
15. Automatic deceleration switch
16. Power/Highland mode switch
17. Detent mode switch
18. Lift overload warning switch*
19. Beacon lamp switch*
20. Engine shutdown switch*
21. Auxiliary 2nd/4th switch*
22. Auxiliary 2/4 select button*
23. Third auxiliary hydraulic button*
24. Third auxiliary hydraulic switch*
25. DPF manual regeneration/inhibit select
switch <Applicable machine models
126100003 or later>
*: Subject to the specifications or optional products selected
