Takeuchi TB260 User Manual

2-45
CONTROLS
INSTRUMENT CLUSTER

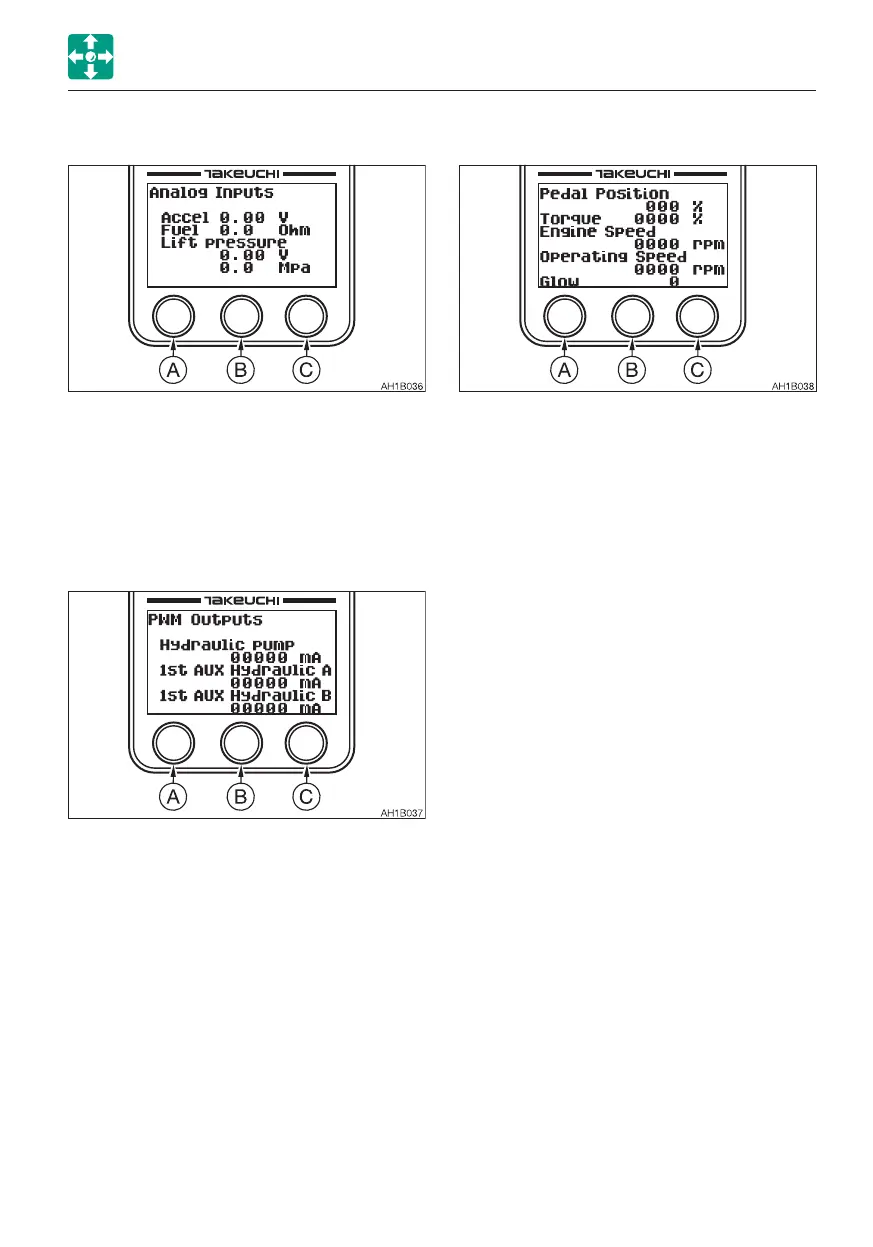

· Analog inputs (ANALOG INPUTS) · Engine Control Module (ECM)
Displays the analog input information in
one page.
Accel 0.00 V
Fuel 0.0 Ohm
Lift pressure 0.00 V
0.0 Mpa
· PWM outputs (PWM OUTPUTS)
Displays the output information on the
pump and the auxiliary circuits in two
pages.
Page 1
Hydraulic pump 00000 mA
1st AUX Hydraulic A 00000 mA
1st AUX Hydraulic B 00000 mA
Page 2
2/4 AUX
Hydraulic C/G 00000 mA
2/4 AUX
Hydraulic D/H 00000 mA
Displays the engine output information in
three pages.
Page 1
Pedal Position 000 %
Torque 0000 %
Engine Speed 0000 rpm
Operating Speed 0000 rpm
Glow 0
Page 2
Coolant Temp. 000 °C
Fuel Temp. 000 °C
Oil Pressure 0000 kPa
Fuel Rate 0000 L/h
Barometric Pressure 000 kPa
Page 3
Air Inlet Temp. 000 °C
Boost Pressure 000 kPa
Boost Temp. 000 °C
Battery Voltage 0000 V
