2-20
CONTROLS
INSTRUMENT CLUSTER
OTHER DISPLAY

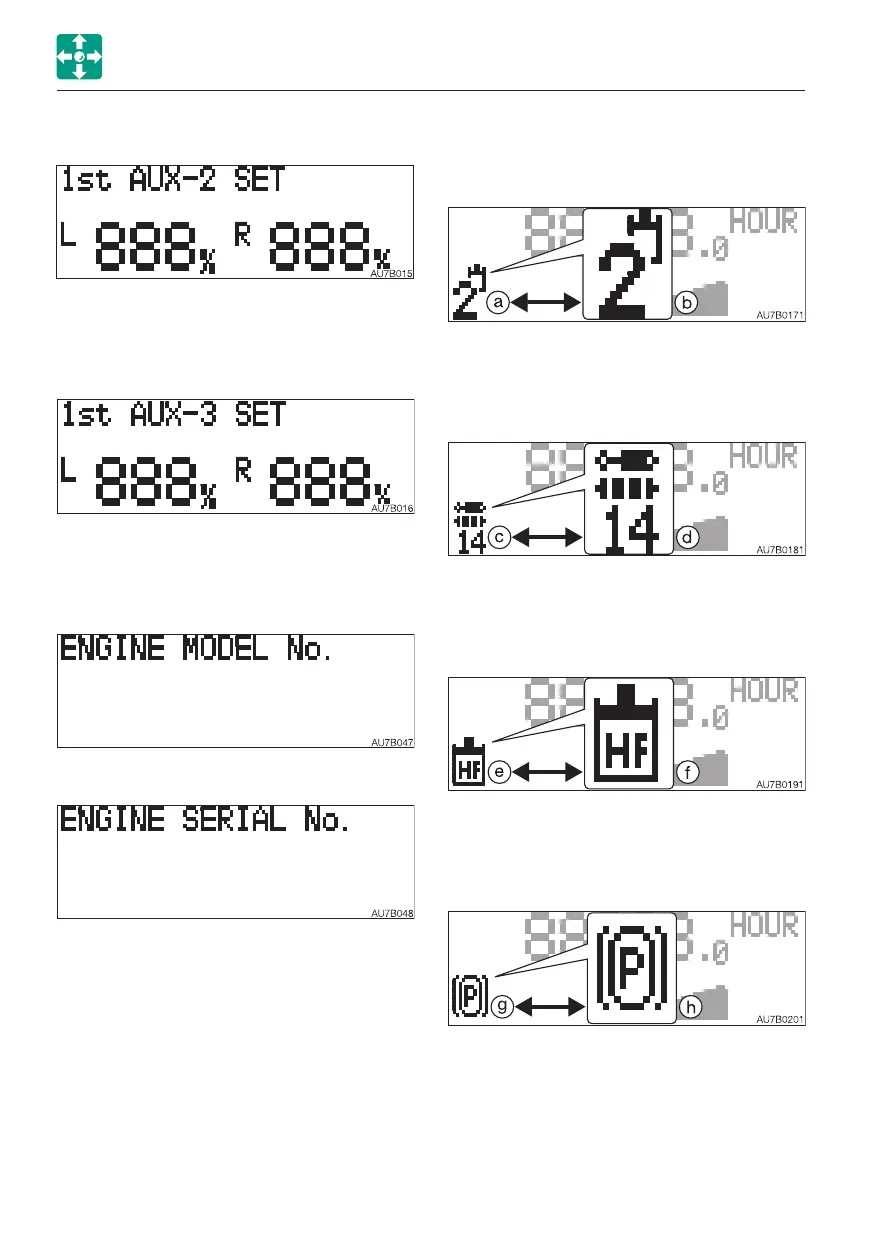

1. Aux. 2nd display (TL10/TL12 optional)
a: Aux. 2nd is selected.
b: Enlarged view
2. 14-pin connector display (optional)
c: 14-pin connector is selected.
d: Enlarged view
3. High-flow display (optional)
e: High-flow is selected.
f: Enlarged view
4. Parking brake display (TL12 optional)
g: Parking brake is on.
h: Enlarged view
Refer to “Auxiliary 1st-1 setting
information” above.
5. Auxiliary 1st-3 setting information
Refer to “Auxiliary 1st-1 setting
information” above.
6. Engine model
7. Engine serial number
8. Returns to the vehicle error code page.
4. Auxiliary 1st-2 setting information
To Next Page
