2-21
CONTROLS

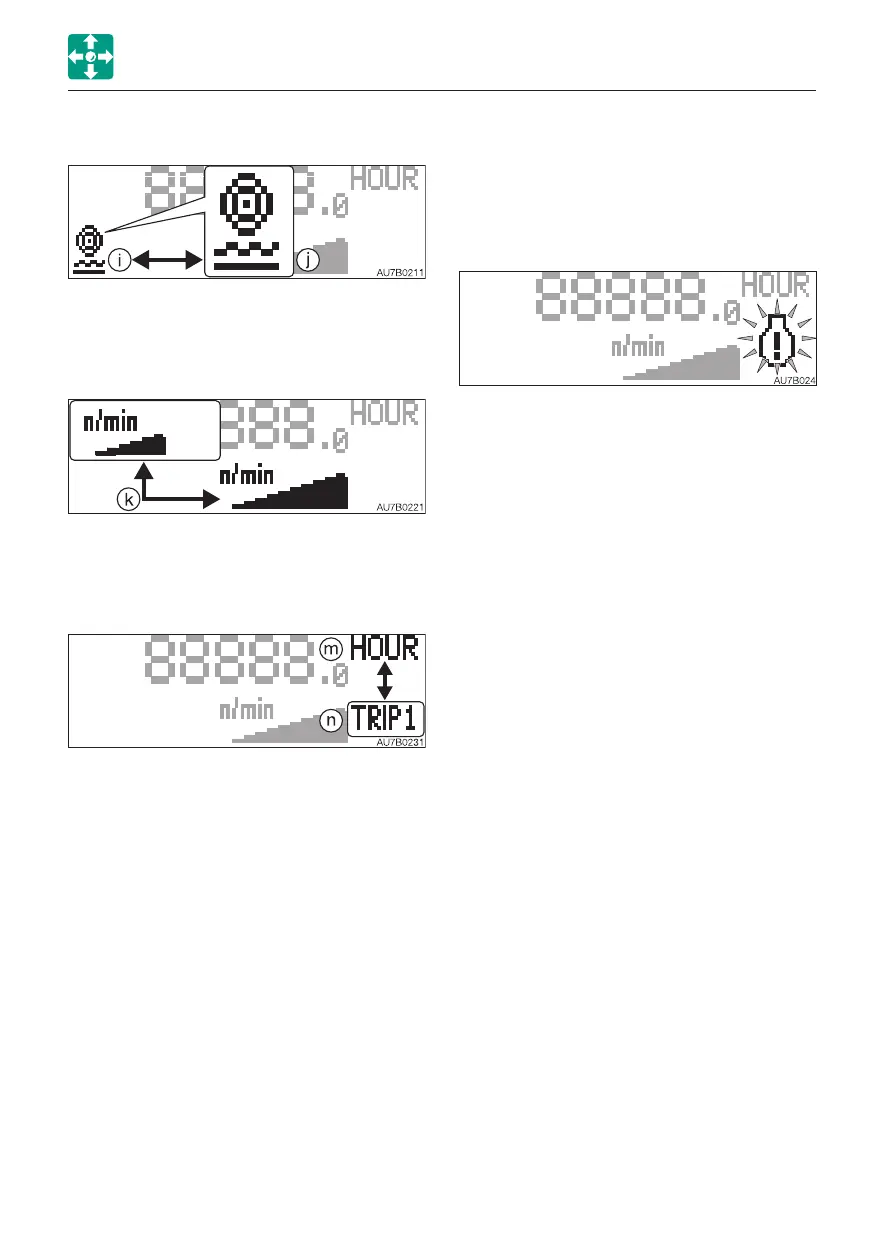

INSTRUMENT CLUSTER
i: Ride control is on.
j: Enlarged view
6. Engine RPM display
k: The graph changes as the engine RPM
changes.
7. Hour meter/Trip meter display
m: Hour meter is selected.
n: Trip meter is selected.
This warning display flashes if the
Electronic Control Module (ECM) detects
an engine problem while the ignition
switch is in the ON position. The data
screen appears with an ECM error code
indicating the problem just detected.
Refer to “Engine error code list” on pages
6-13 to 6-15.
8-1. PCD warning display
If the particulate after-treatment system
such as the DPF detects any error, the
ECM warning display turns on and the
alarm sounds.
If errors in the PCD system and other
sources are detected at the same time,
cycles of 5-second solid light and
5-second flashing are repeated while
the alarm is sounding.
PCD: Particulate Control Diagnostic
system
5. Ride control display (TL10/TL12 optional) 8. ECM warning display
IMPORTANT: If the ECM warning display
flashes and a number appears on the
engine error code screen, refer to the
“Engine error code list” and contact your
sales or service dealer for help.
