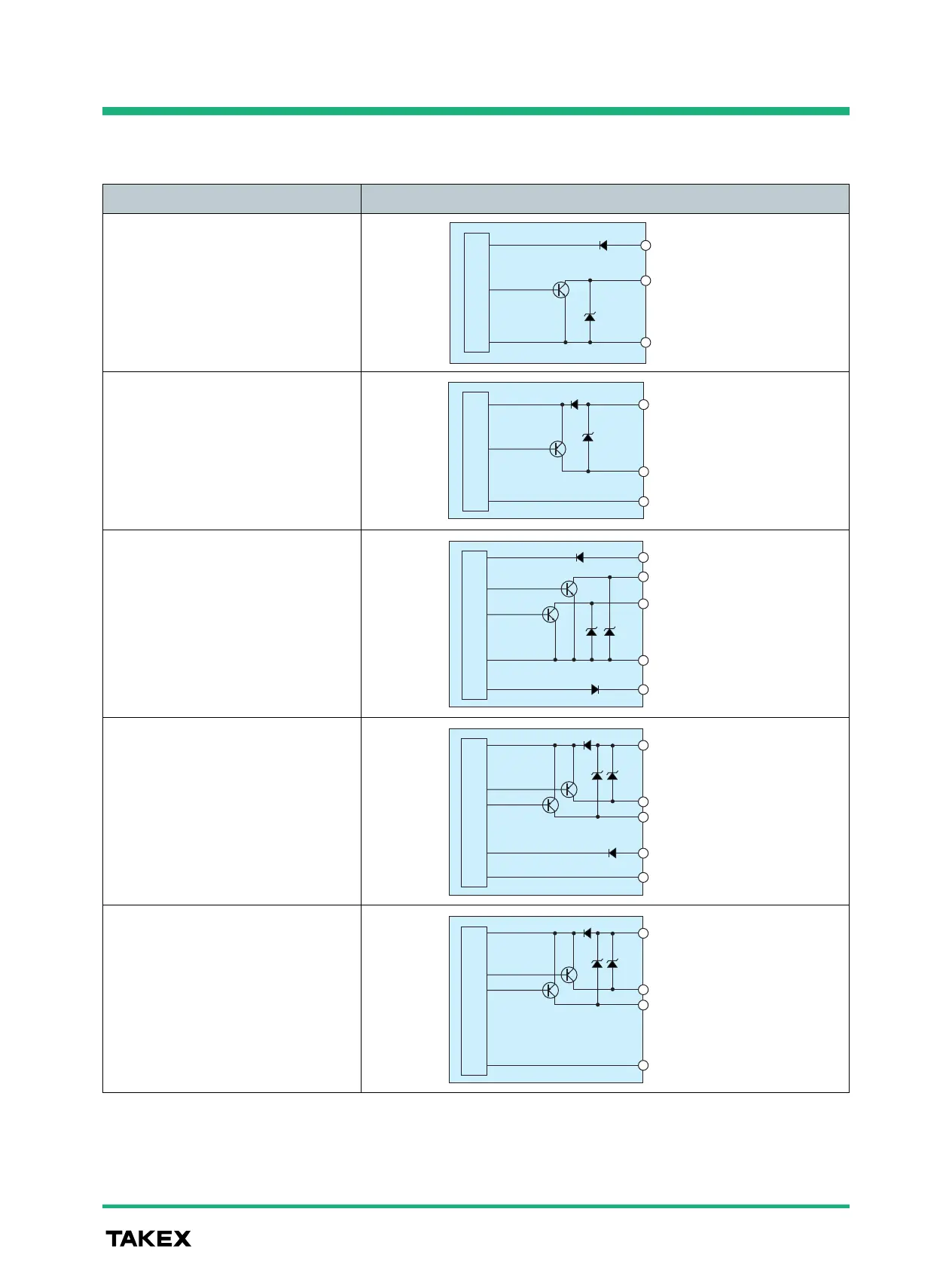

Output circuit diagramModel
NPN output type
F70AR F70ABK
F70AG F70AWK
F70AB
F70AW
F70ARK
F70AGK
Input/Output Circuit and Connection
PNP output type
F70ARPN F70ABKPN
F70AGPN F70AWKPN
F70ABPN
F70AWPN
F70ARKPN
F70AGKPN
NPN output type
F70R
F70G
F70B
F70W
PNP output type
F70RPN
F70GPN
F70BPN
F70WPN
PNP output type
F70RKPN
F70GKPN
F70BKPN
F70WKPN
Internal circuit
Brown: 12-24 VDC
Black: OUT PUT
Blue: 0V
Internal circuit
Brown: 12-24 VDC
Black: OUT PUT
Blue: 0V
Brown: 12-24 VDC
Pink: external teaching (*)
Black: OUT PUT
Blue: 0V
Orange: STB OUT
Internal circuit
Brown: 12-24 VDC
Pink: external teaching (*)
Black: OUT PUT
Blue: 0V
Orange: STB OUT
Internal circuit
Brown: 12-24 VDC
Black: OUT PUT
Blue: 0V
Orange: STB OUT
Internal circuit
(*) When not using external teaching, cut the pink lead at the
base or connect it to the positive terminal (for NPN type) or 0V
(PNP type) of the power supply.
