3 Construction and function
3.1 Construction Rotary indexer type RTX
3.1.1 Rotary indexer RTX350 – RTX900

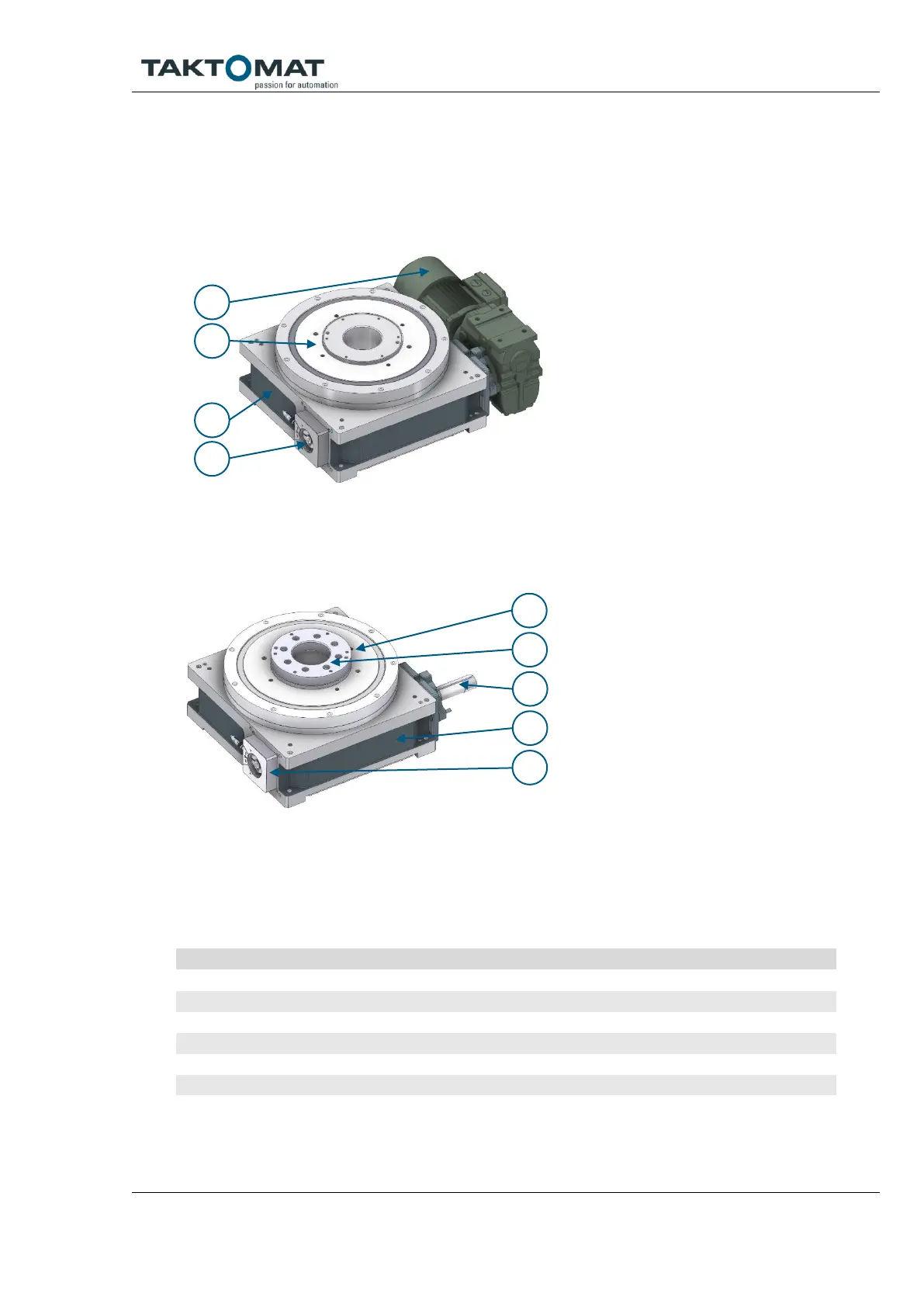

Fig. 3 Rotary indexer
Rotary indexer type RTX
closed circuit
Fig. 4 Distance design
Rotary indexer type RTX
closed circuit
Pos.
Description
1
Indexing ring / output flange (output)
2
Drive
3
Input shaft (drive)
4
Position indicator
5
Housing
6
Centre section (stationary)
5
2
1
4
3
4
1
5
6
