45. Top plate
46. Cutting corner
47. Side plate
48. Gullet
49. Heel
50. Chassis
51. Rivet hole
52. Toe
53. Depth gauge
54. Correct angle on top plate (degree of angle depends
on chain type)
55. Slightly protruding “hook” or point (curve on non-
chisel chain)
56. Top of depth gauge at correct height below top plate
57. Front of depth gauge rounded off

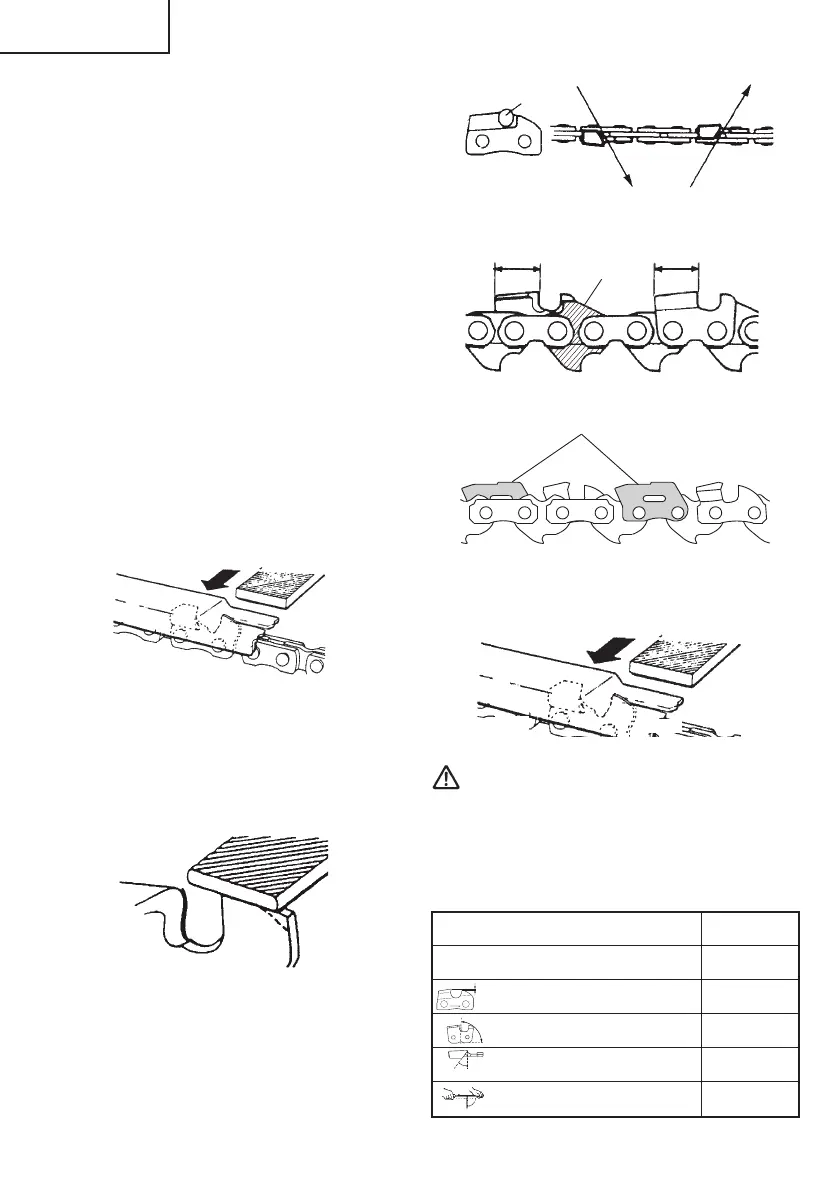

Lowering depth gauges with a fi le
1) If you sharpen your cutters with a fi le holder, check
and lower the depth.
2) Check depth gauges every third sharpening.
3) Place depth gauge tool on cutter. If depth gauge
projects, fi le it level with the top of the tool. Always
fi le from the inside of the chain toward an outside
cutter. (Fig. 47)
Fig. 47
4) Round off front corner to maintain original shape of
depth gauge after using depth gauge tool. Always
follow the recommended depth gauge setting found
in the maintenance or operator manual for your saw.
(Fig. 48)
Fig. 48
General instructions for filing
cutters
File (58) cutter on one side of the chain from the inside
out. File on forward stroke only. (Fig. 49)
54
5454
58
58
58
Fig. 49
5) Keep all cutters the same length. (Fig. 50)
59
Fig. 50
60
Fig. 51
6) File enough to remove any damage to cutting edges
(side plate (61) and top plate (62)) of cutter. (Fig. 52)
61
62
Fig. 52
WARNING
○ Do not fi le or alter the tops of bumper drive links (59)
and guard tie strap (60) (Fig.50, 51).
○ Adjust the depth gauge to the specifi ed setting.
Sharpening angles for sharpening
saw chain
1. Part Number 91VG/91PX
2. Pitch 3/8”
0.025"
3. Depth Gauge Setting 0.025"
80°
4. Side Plate Filing Angle 80°
5. Top Plate Angle 30°
90°
6. File Guide Angle 90°
