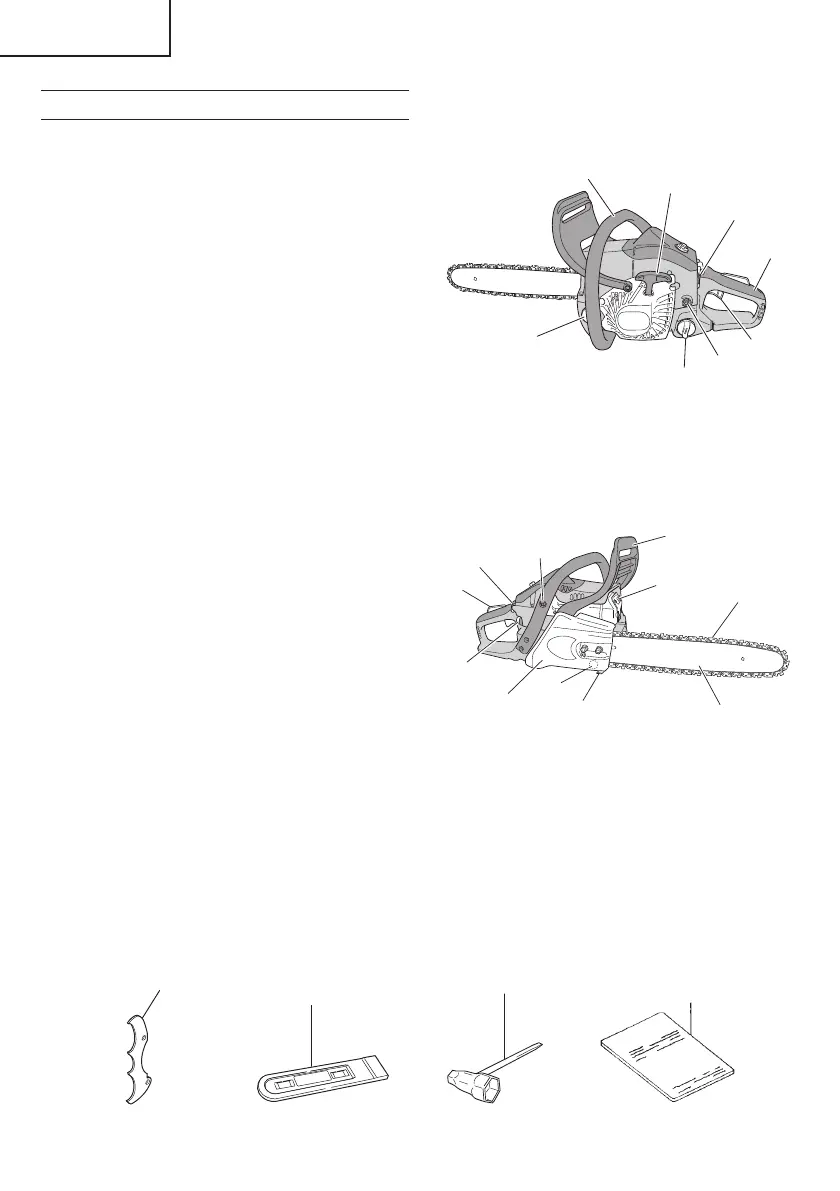

WHAT IS WHAT?
1. Throttle trigger: Device activated by the
operatorʼs fi nger, for controlling the engine
speed.
2. Throttle trigger lockout: Device that prevents
the accidental operation of the throttle trigger
until manually released.
3. Ignition switch: Device for allowing the engine to
be started or stopped.
4. Oil tank cap: For closing the oil tank.
5. Recoil starter: Pull handle to start the engine.
6. Front handle: Support handle located at or
towards the front of the engine housing.
7. Fuel tank cap: For closing the fuel tank.
8. Rear handle: Support handle located at or
towards the rear of the engine housing.
9. Choke control knob: Device for enriching the
fuel/air mixture in the carburetor, to aid starting.
10. Priming pump; Device for supplying extra fuel,
to aid starting.
11. Guide bar: The part that supports and guides
the saw chain.
12. Saw chain: Chain, serving as a cutting tool.
13. Chain brake (Front hand guard): Device for
stopping or locking the chain.
14. Chain catcher: device for restraining the saw
chain.
15. Side case: Protective cover to the guide bar,
saw chain, clutch and sprocket when the chain
saw is in use.
16. Muffl er: Reduces engine exhaust noise and
directs the exhaust gases.
17. Anti-vibration spring: Reduce the transmission
of vibrations to the operator's hands.
18. Spiked bumper : Device for acting as a pivot
when in contact with a tree or log.
19. Guide bar cover: Device for covering the guide
bar and saw chain when the unit is not being
used.
20. Combi box spanner: The tool for removing or
installing a spark plug and tensioning the saw
chain.
21. Handling instructions: Included with unit. Read
before operation and keep for future reference
to learn proper, safe techniques.
18
19
20
21
17
8
3
6
5
1
7
4
9
2
12
16
13
10
17
14
17
15
11
000BookTCS40EAUS.indb4000BookTCS40EAUS.indb4 2012/08/109:30:372012/08/109:30:37
