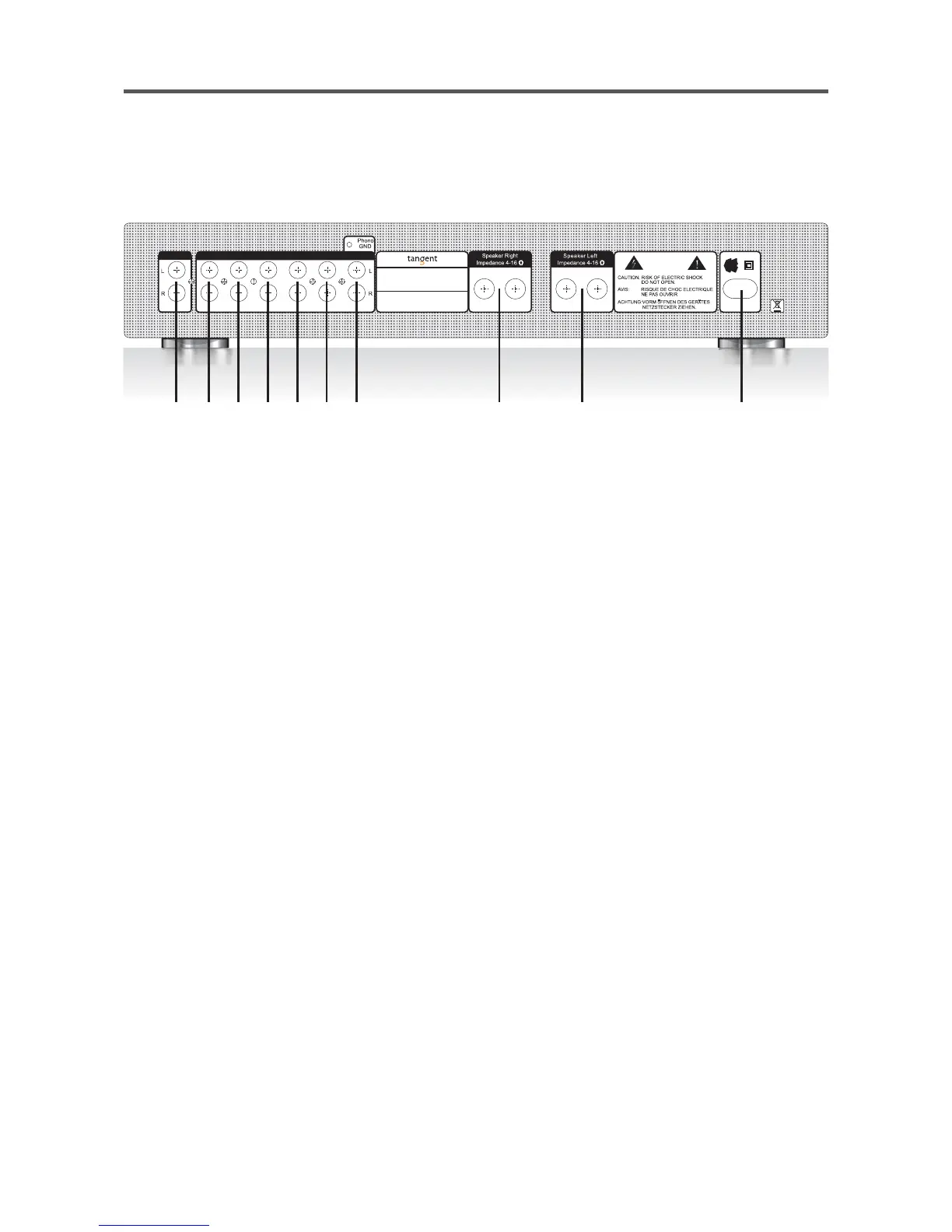

FRONT PANEL AND CONNECTIONS
Connections
1. Line Output:
7. Phono
8. Speaker left & righ
9. AC input:
For connection of an external amplifier.
: For connection of a record player (Note: Additional ground terminal available above inputs).
t: For connection of loudspeakers.
Note: - The speaker impedance must be between 4 and 16 Ohm.
- For optimal sound quality there must be a proper connection between the speaker terminals and
the amplifier terminals.
- The cable ends must not be frayed to avoid that they come into contact with each other or the
cabinet back panel.
For connection of mains voltage. Make sure that the plug is correctly inserted, and that the
voltage corresponds to the text printed on the cabinet back panel.
2. AUX 2
3. AUX 1
4. CD
5. DVD
6. Tuner
: For connection of optional equipment.
: For connection of optional equipment.
: For connection of CD player.
: For connection of DVD player (Note: Analogue stereo input).
: For connection of FM/DAB radio.
TUNER
AUX 2
AUX 1
CD
DVD
PHONO
Item No.:
Power Rating 230-240 V AC~50Hz
Model: AMP-100
Max Power Consumption: 150W
Serial No.:
LINE OUT
~AC INPUT
230-240V 50Hz
12
12 934567 8 8
