CONNECTIONS
PHONO

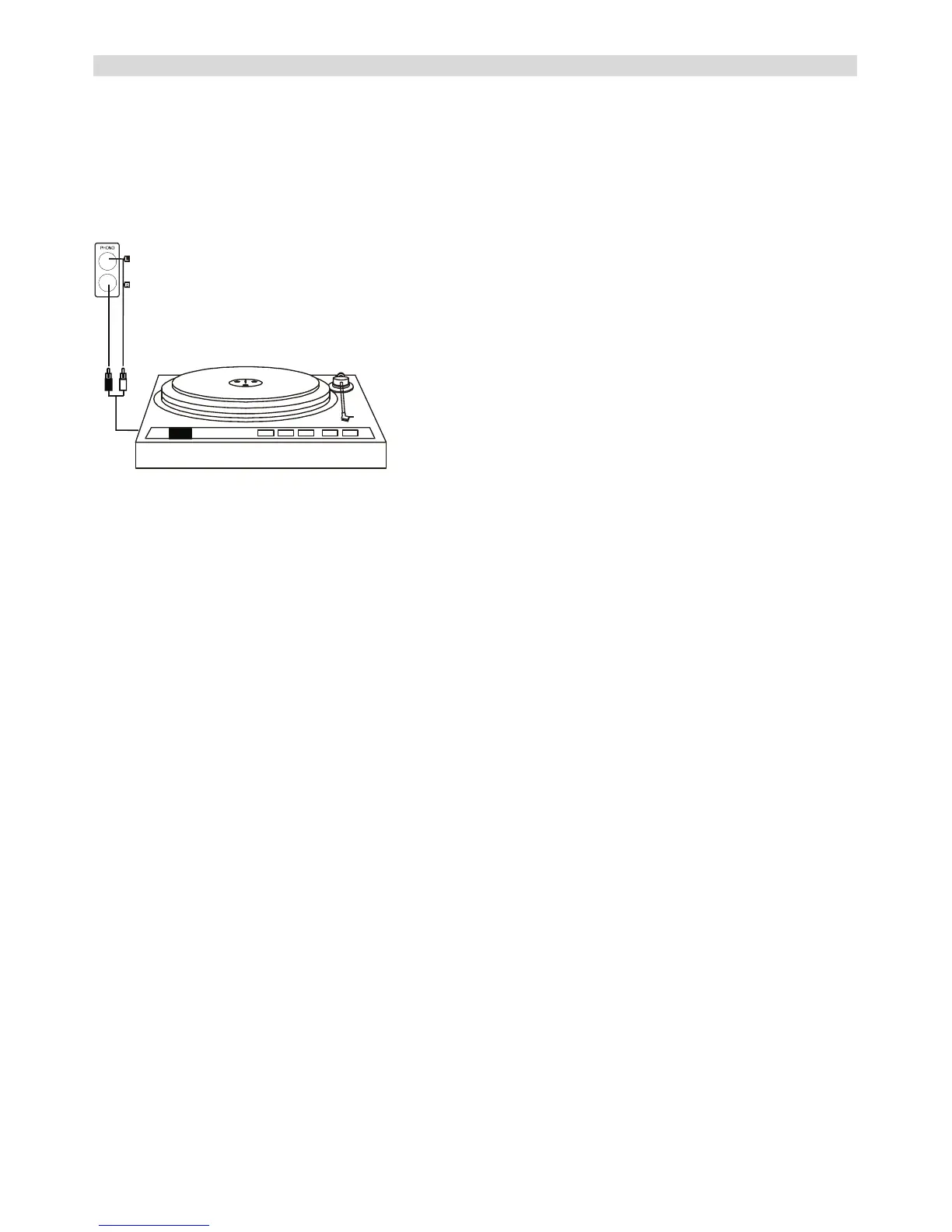

Connect the turntable’s output cord L (white) plug to the L PHONO terminal and the R (red) plug to the R PHONO terminal.
If your turntable is equipped with a grounding cable, connect it to the unit’s GND terminal. But disconnect it if you notice increased
humming.
AUDI O
AUX1 terminals
This terminal have an electrical performance which is equivalent to that of the CD terminals which means that it can be used as the
audio output terminals for a line level source. Connect this terminal to the OUTPUT terminal on the component using the pin-plug
cord.
AUX2 terminal
This terminal has an increased sensitivity (x4) compared to the other line level inputs.
Headphone terminal
For connection of a pair of headphones.
