17
CONNECTION AF SPEAKERS
Before Connection
Before connection turn off the power of all the equipment.
Read instructions of each component you intend to connect to this unit.
- Be sure to insert each plug securely. To prevent hum and noise, do not bundle the interconnection leads
with power cord or speaker leads.

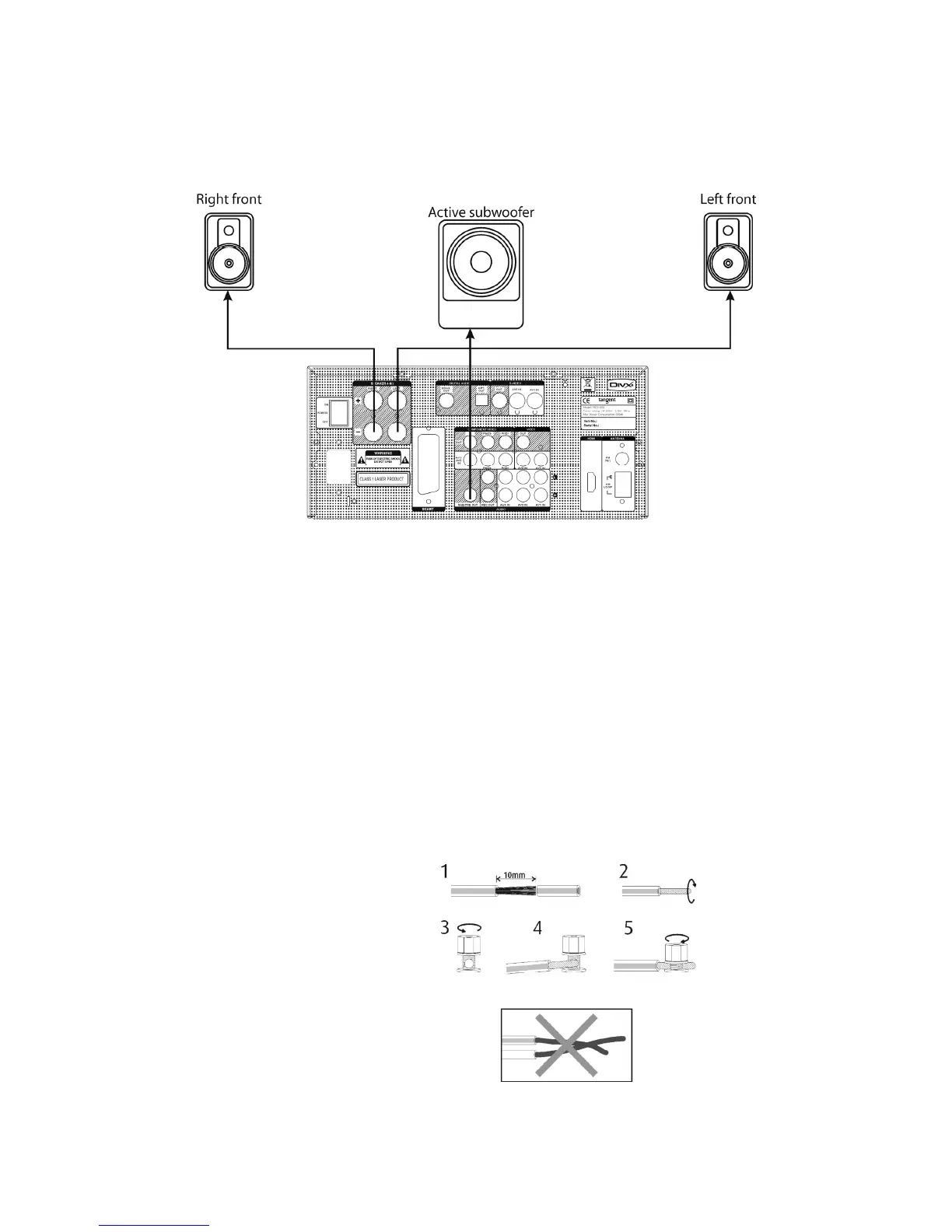

Speaker Connections
To avoid damaging the speakers with a sudden high-level signal, be sure to switch the power off before
connecting the speakers.
- Check the impedance of your speakers.
Connect speaker with an impedance between 8 and 4 ohms. The amplifier's colored speaker terminals
are the + (positive) terminals and the black terminals are the (negative) terminals.
- The + side of the speaker cable is marked to make it distinguishable from the side of the cable. Connect
this marked side to the colored + terminals and the unmarked side is the black terminal.
- Prepare the speaker cords for connection by stripping off approximately 10 mm or less (no more as this
could cause a short-circuit) of the outer insulation. Twist the wires tightly together so that they are not
straggly.
How to connect
Colored: positive (+)
Black: negative (-)
1. Unscrew the knob
2. Insert the speaker cable.
3. Tighten the knob and secure the cable.
