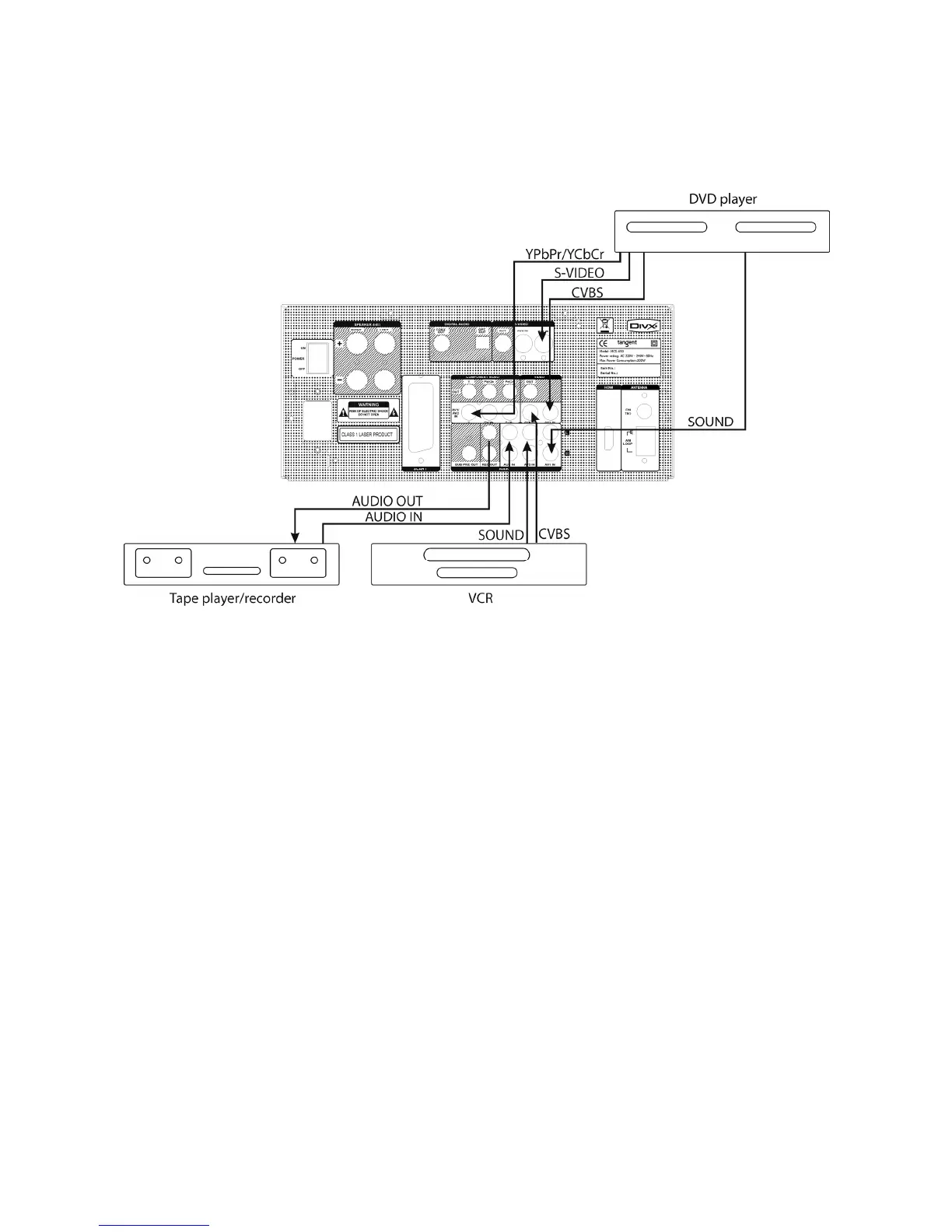

Rear panel inputs

The rear panel has one analog stereo auxiliary input/output (AUX) and two AV inputs.

- The AUX connection contains an analog stereo line input and an analog stereo line output (REC OUT)

Use this input to connect a tape recorder or similar products. Connect to source equipment using phono

cables (stereo 2RCA-2RCA). Choose the AUX input by pressing the AUX button on the remote.

- The AV1 and AV2 inputs both contains an analog stereo input, a composite video input (CVBS), a S-

video input and a component video input.

Choose the AV1 or AV2 inputs by pressing the AV1 or AV2/TV button on the remote. Please notice that

if the AV2/TV button is pressed twice, the sound and picture from the TV set will be played instead of the

sound and picture from the AV2 input.

Note: The AV1 and AV2 inputs share the component video input. That means only one source can be

connected to the MCS-650 through component video in. Also please notice that if you connect the AV1

or AV2 through the component video input, you must connect your TV set via the component video

output.

Note: Do not plug in the mains power lead or turn on the unit before all connections have been made.
