INSTALLATION AND ASSEMBLY
3.2 Field preparation
Turnstile dimensions differ according to the selected turnstile. It can be placed in the

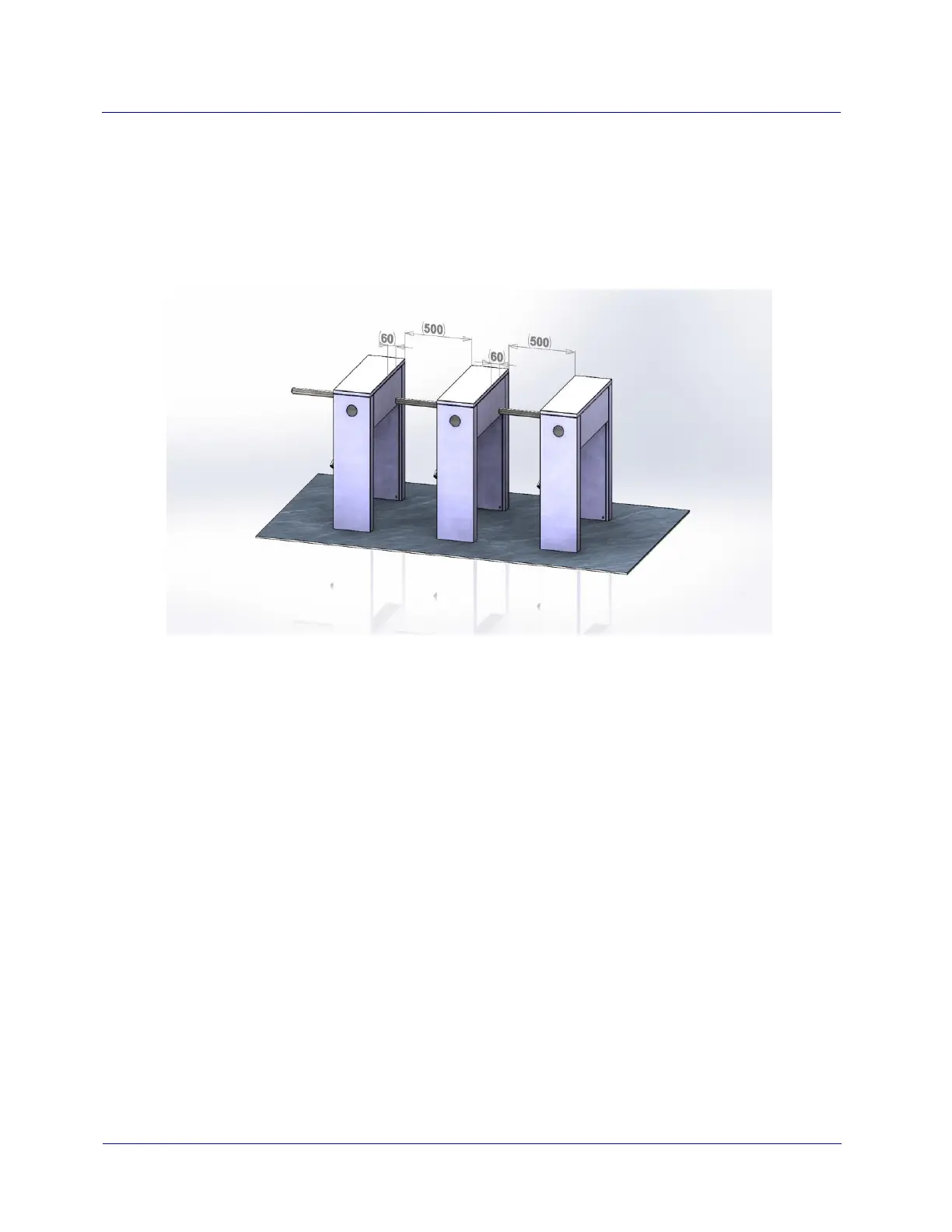

specified area in desired way and position. Figure 3.1 shows a section of LTT 303's layout.
Figure 3.1 Turnstile layout
There are some instructions to place the turnstiles.
Instructions:
• The floor where the turnstiles are to be mounted must be completely flat and balanced.
Installation should not be done if there is any bumps and slopes on the floor.
• Under the floor, which the turnstile is to be mounted, must not be empty. No mounting
should be done on non-durable floors such as plasterboard, gypsum, sand etc.
• There should be no installation or cable under the floor where the turnstile is to be mounted.
If necessary, it should be specified as a plan or project and mounted according to this
information.
• No dust should be left in the holes while mounting of the turnstile on the floor. If possible,
please remove the dust with a pneumatic hose or similar tools.
• Chemical mixture epoxy should be used while mounting the turnstile on ground and no
work should be done before the freezing time (30 min) is completed.
• Mounting rods of 10 mm thickness and 150 mm length must be used to mount turnstiles on
the floor.
• Before starting the installation of the turnstile, make sure that the conditions described in
the "installation and assembly" chapter are present.
