Tansa LTT 313 - XL5 Terminal Connections

ELECTRICAL CONNECTIONS
5.4 Control card terminal descriptions (XL5)

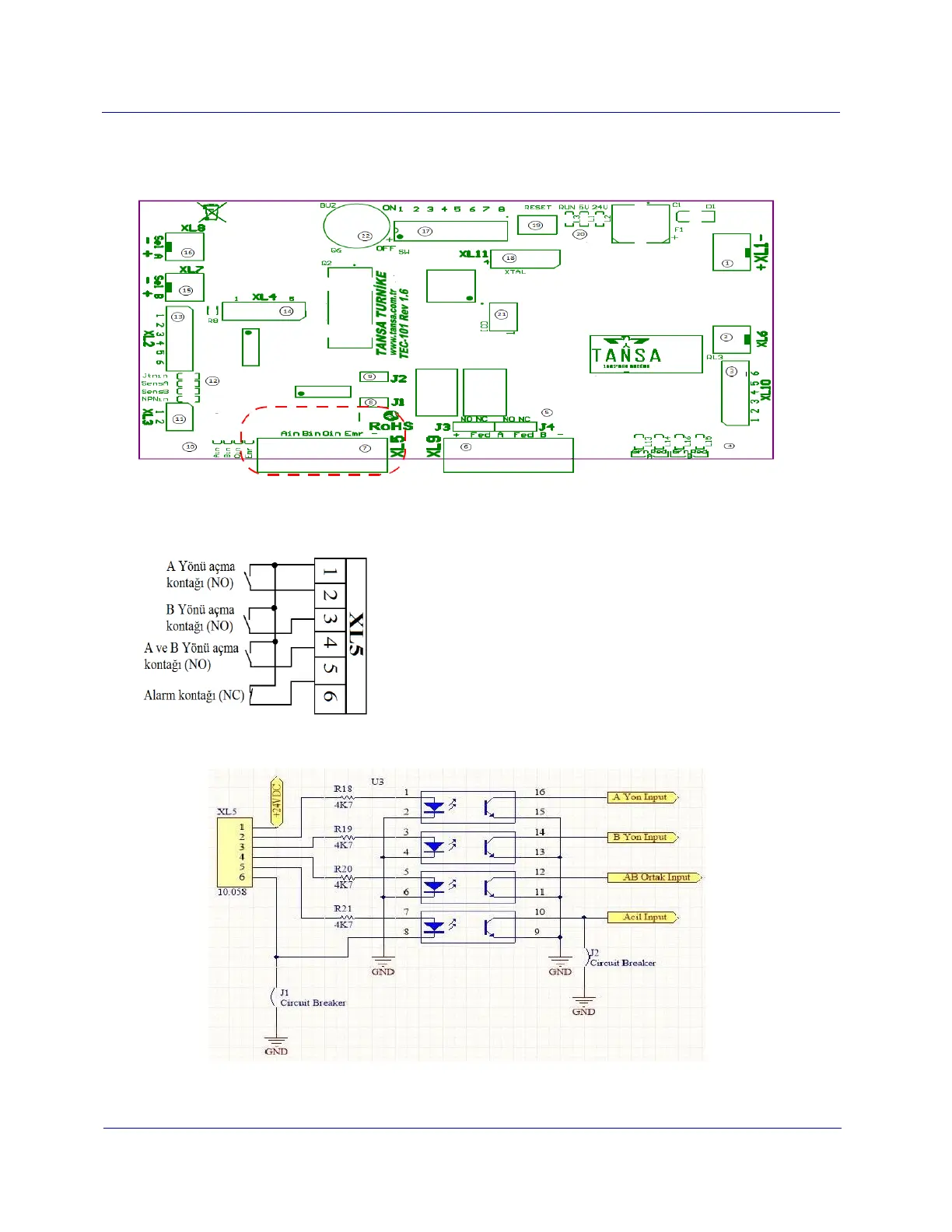

Figure 5.5 Circuit diagram of XL5 terminal.
| 30|
Figure 5.4 shows the connection diagram of the XL5
terminal on the TEC-101 Control Card.
Figure 5.4
