4.1 Internal parts
Open the turnstile cover, to see the internal mechanism shown in Figure 4.1. There is a main
board, power supply and main mechanism in the turnstile mounted on the main body. Guiding
indicators and LED plexis are mounted on the inside of the turnstile legs with rivets.

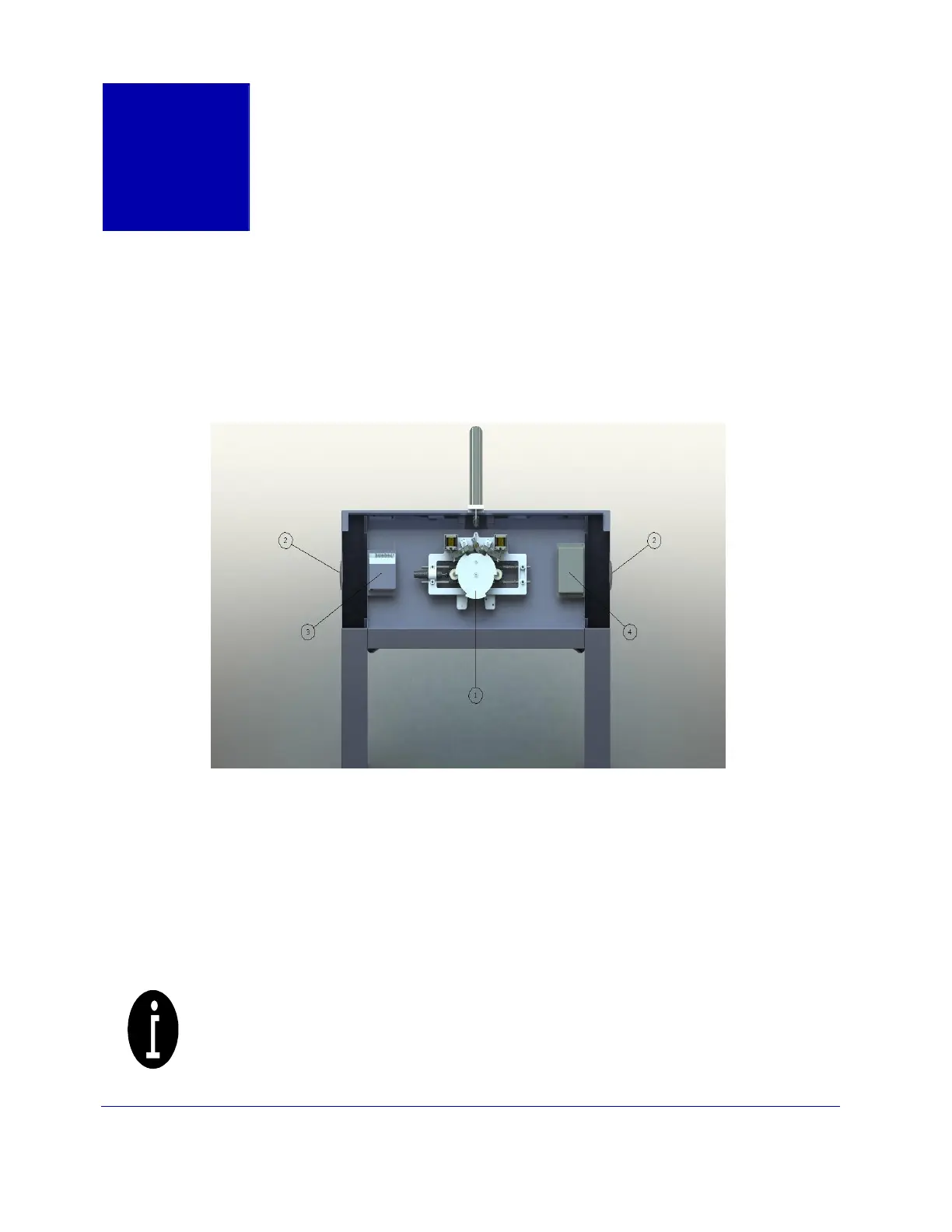

Figure 4.1 Turnstile internal mechanism
1. Main mechanism
2. A- B direction pass indicator
3. Power supply
4. Main board
| 18 |
The figure shows the internal parts of the single tripod turnstile. There are two pass
indicators, power supplies and motherboards in the double tripod turnstile mechanism.
