INSTALLATION AND ASSEMBLY
Place the power cable and control cables through the turnstile in a way to leave the brackets inside
the turnstile. Tighten the previously unscrewed M6 hex keys. You have now completed the
mechanical installation of turnstiles. (Figure 3.6 and Figure 3.7) The next step is connecting the
power cable and control cables.

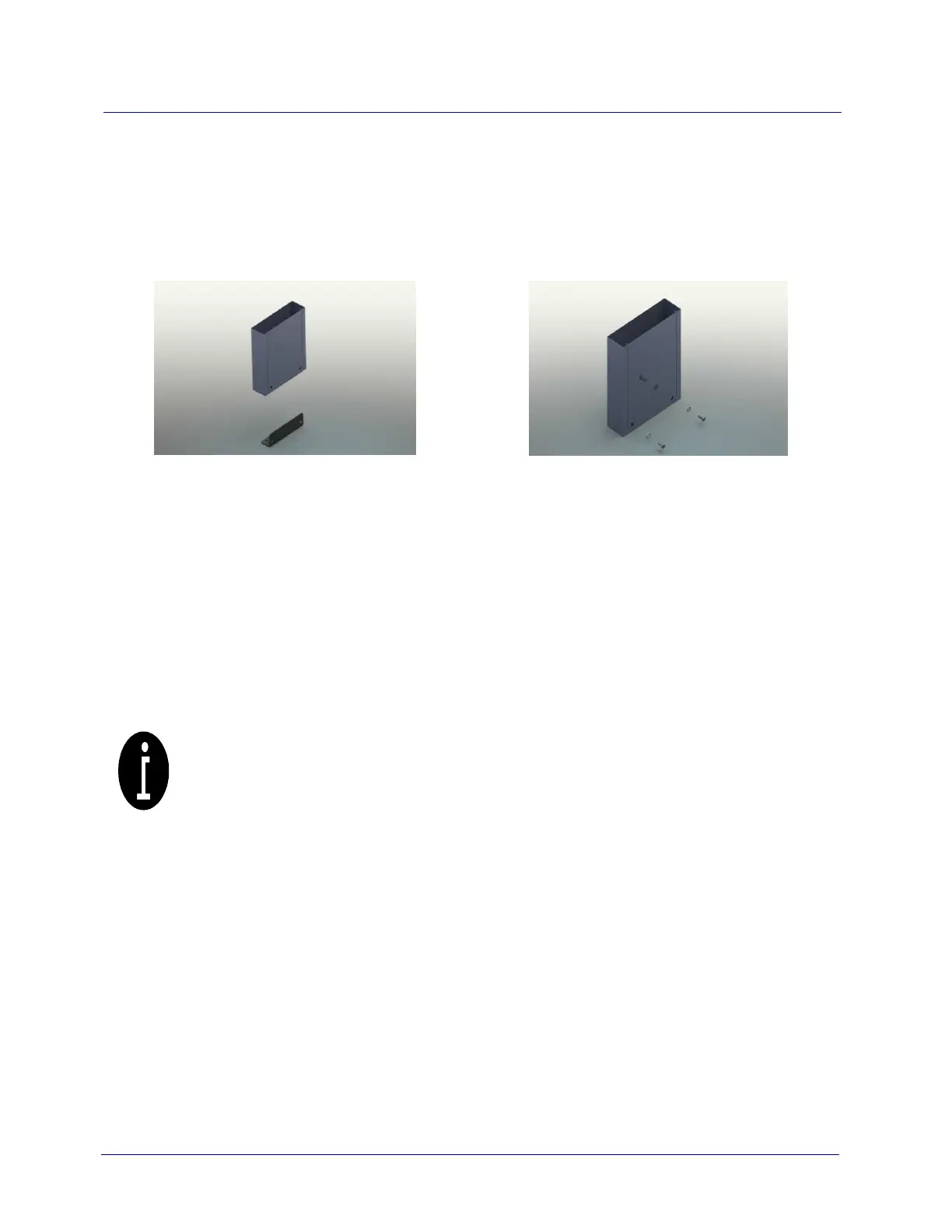

Figure 3.6
Figure 3.7
3.2.2 Cabling
Use a 3x1.5mm TTR power cable and 6A fuse for the turnstile supply. Grounding must be at
least 25 amperes. A separate cable line must be installed for data and fire contact cables to card
readers or other turnstile control devices to be connected to the turnstile. Data and fire cables must
be installed in the same with electric cables.
In places where a large number of turnstiles are installed side by side, emergency cables
must be installed from one turnstile to the other. This parallel connection must be made in
accordance with the emergency connection diagram.
|15 |
