Assembly Instructions
The heater is packaged with the casters unattached. You shall at-
tach them before operating the heater.
Important: Do not plug in and operate the heater if the casters are
not assembled correctly in place. The heater must always be used in
an upright position (casters at bottom, controls on top).
1.Carefully take out the radiator body from the box and remove all
packaging materials.
2.Take out the caster assemblies and turn the radiator body upside
down on a scratch-free location. Make sure it is stable and will not fall.
3.Rear Casters: Unscrew the wing nuts from the included U-shaped
bolt, attach the U-bolt to the U-facing flange between the last two fins.
Insert the threaded ends of the U-bolt into the mounting holes on the
plate. Screw the wing nuts back to the U-bolt and tighten properly.
Note: The rear casters must be mounted between the last two fins.

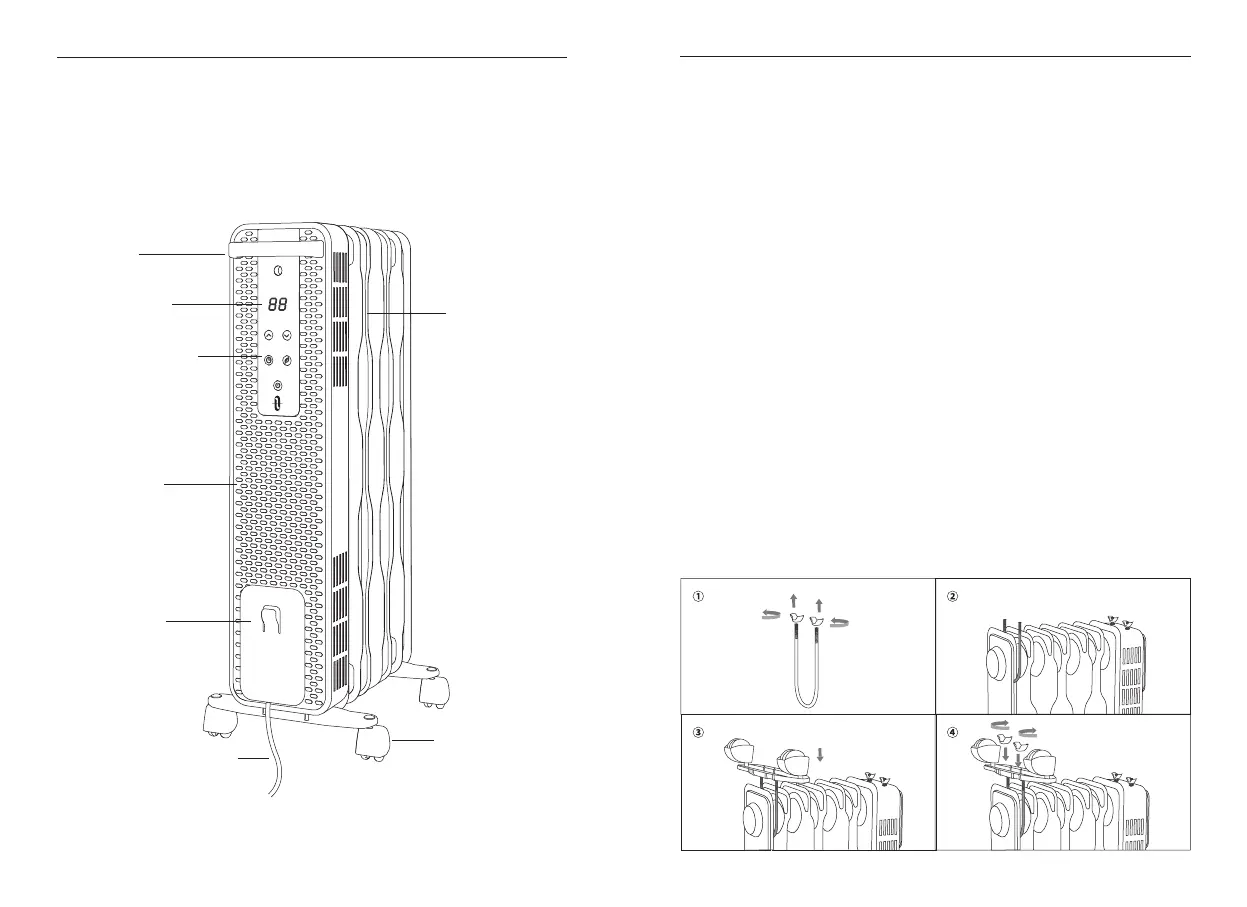

Product Diagram
Handle
LED Display
Control Buttons
Front Panel
Cord Wrap
Caster Assembly
Power Cord and Plug
Radiator Fins
To Next Page
