irlS[alla[iorl irlstrucuorl_5

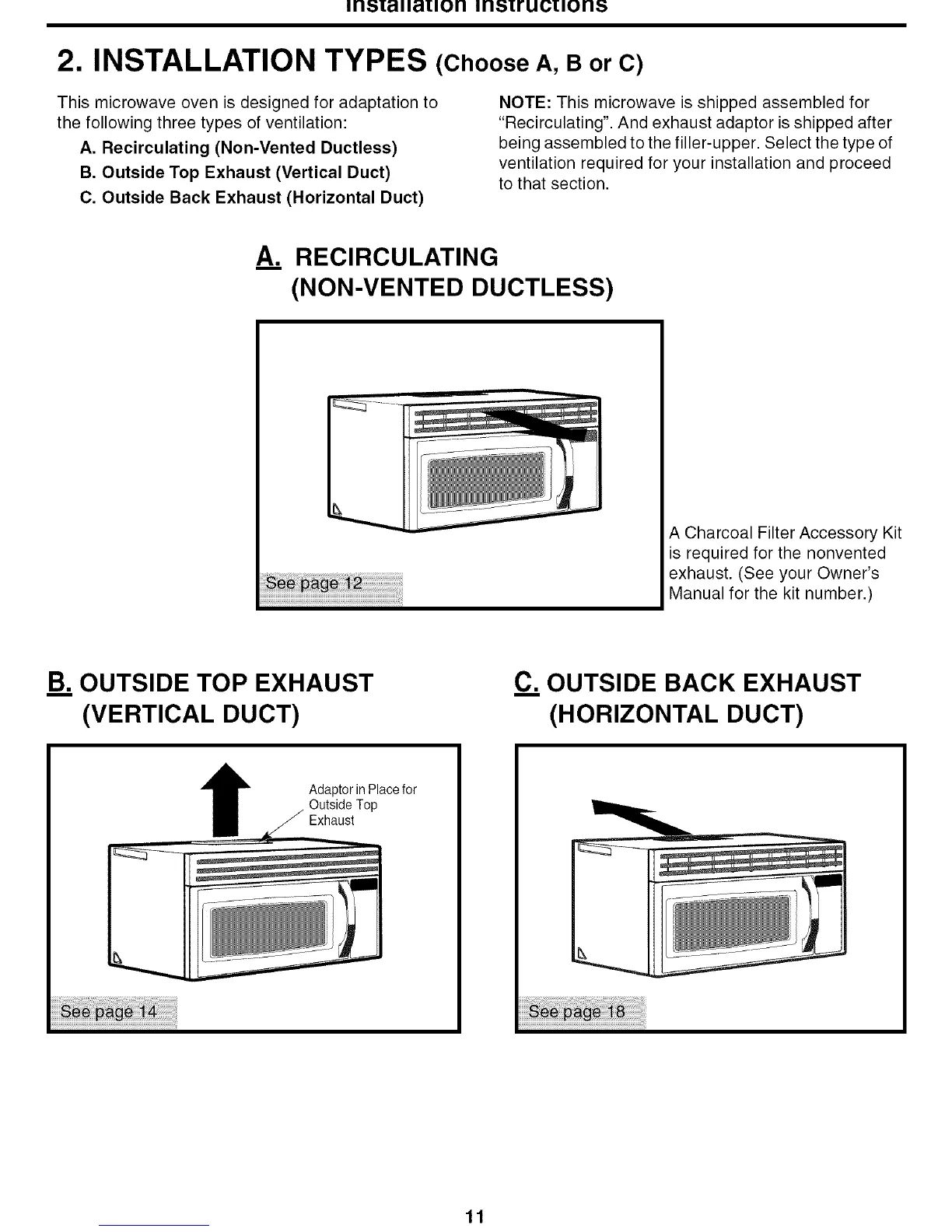

2. INSTALLATION TYPES (Choose A, B or C)
This microwave oven is designed for adaptation to
the following three types of ventilation:
A. Recirculating (Non-Vented Ductless)
B. Outside Top Exhaust (Vertical Duct)
C. Outside Back Exhaust (Horizontal Duct)
NOTE: This microwave is shipped assembled for
"Recirculating". And exhaust adaptor is shipped after
being assembled to the filler-upper. Select the type of
ventilation required for your installation and proceed
to that section.
A_ RECIRCULATING
(NON-VENTED DUCTLESS)
A Charcoal Filter Accessory Kit
is required for the nonvented
exhaust. (See your Owner's
Manual for the kit number.)
B. OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
C. OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
Adaptor in Place for
Outside Top
Exhaust
11
