irlS[alla[iorl irlstrucuorl_5

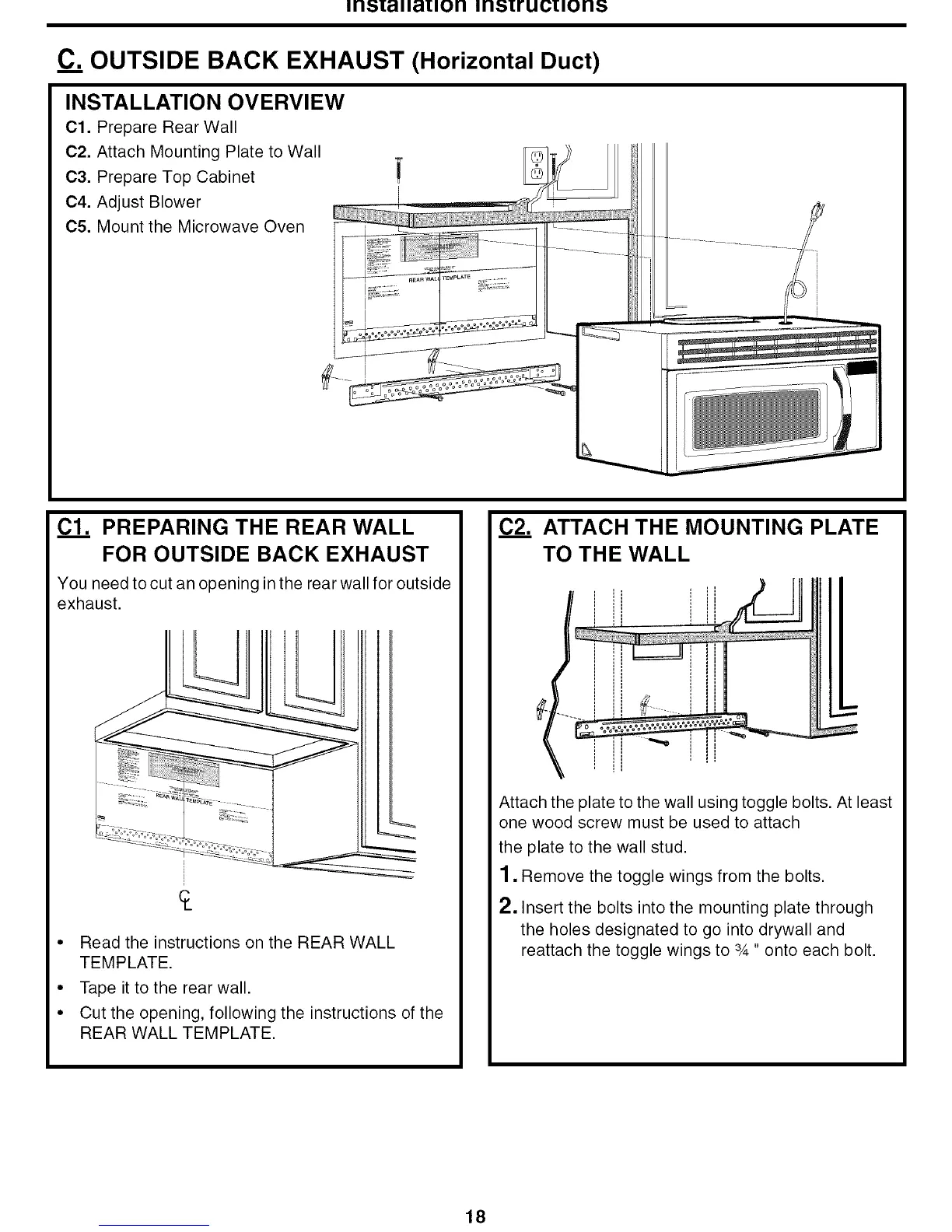

C_ OUTSIDE BACK EXHAUST (Horizontal Duct)
INSTALLATION OVERVIEW
01. Prepare Rear Wall
02. Attach Mounting Plate to Wall
03. Prepare Top Cabinet
04. Adjust Blower
05. Mount the Microwave Oven
01._,.PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall for outside
exhaust.
£
• Read the instructions on the REAR WALL
TEMPLATE.
• Tape it to the rear wall.
• Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
02_ ATTACH THE MOUNTING PLATE
TO THE WALL
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach
the plate to the wall stud.
1, Remove the toggle wings from the bolts.
2, Insert the bolts into the mounting plate through
the holes designated to go into drywall and
reattach the toggle wings to 3_, onto each bolt.
18
