irlS[alla[iorl irls[rucuorl_5

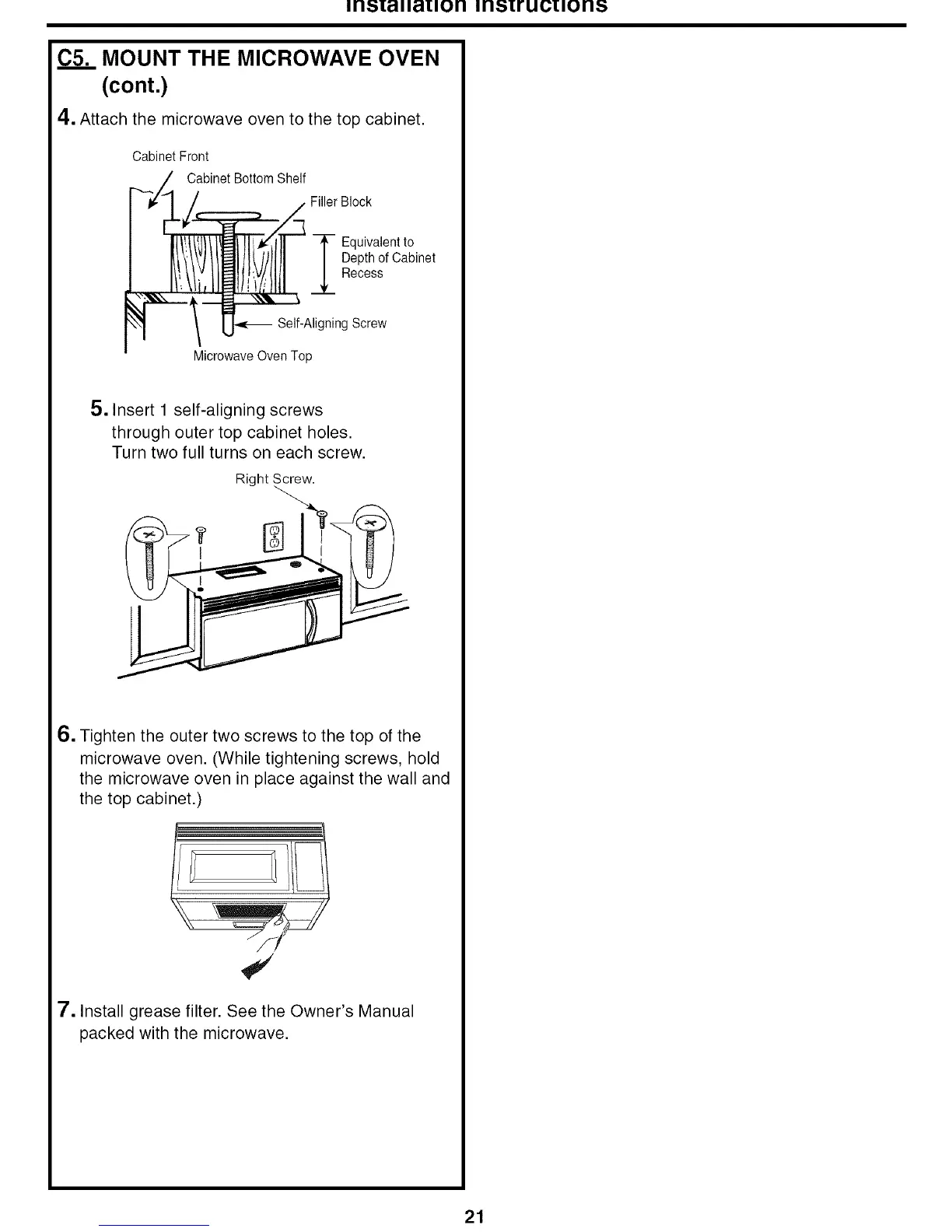

C5._..MOUNT THE MICROWAVE OVEN
(cont.)
4. Attach the microwave oven to the top cabinet.
Cabinet Front
/ Cabinet Bottom Shelf
F/q / / Filler Block
/ Equivalent to
1 I_l\'l_'lllf_l/I[llllll / DepthofCabinet
Jk\...\1/', \)', IIN_ '1_ttl I Recess
"__ Self-Aligning Screw
Microwave Oven Top
5. Insert 1 self-aligning screws
through outer top cabinet holes.
Turn two full turns on each screw.
Right Screw.
6. Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
7. Install grease filter. See the Owner's Manual
packed with the microwave.
21
