Tapworks AD11 User And Installation Instructions

11
Connecting to electrics
ELECTRICAL INSTALLATION
The water softener works on a 24 volt, 50Hz electric power supply.
You must use the transformer supplied into a 240 volt outlet only. Be sure
that the electrical outlet you plug the transformer into is inside, as the
transformer is not designed for outdoor use.

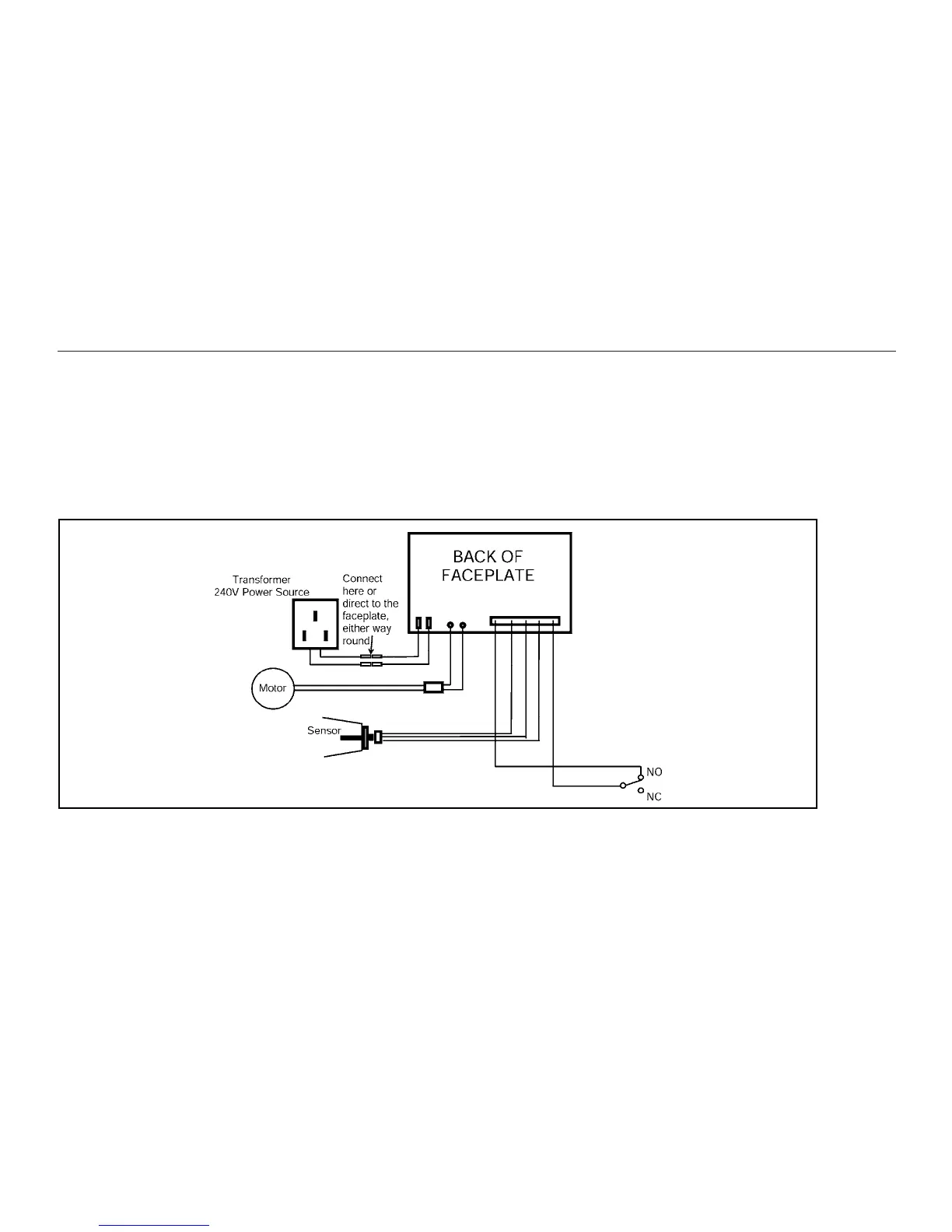

To connect the transformer to the controller board, push the female end
plugs on to the male connectors as indicated below.
Should the faceplate fail to display or indicate an error code, please
check that the connections are as per the diagram below, you will need
to remove the valve cover to do this.
Please Remember – Only use tablet or pellet salt in your softener!
9
Fitting drain and overflow
Please Remember – Only use tablet or pellet salt in your softener!
DRAIN OUTLET/OVERFLOW CONNECTION
See page 5 on drain and overflow before fitting.
Cut tubing for drain and overflow to the required lengths.
Fitting overflow hose
Insert the rubber grommet into the overflow socket situated 2/3 of the way up the rear of the water softener cabinet, using the slilcone grease
provided. Insert the overflow elbow. Fit hose onto the overflow elbow and secure with metal clamp. Pass the overflow through an outside wall so that the
end can be seen.
Fitting drain hose
Turn the drain line adaptor so that a straight connection can be made. Secure with supplied metal clamp. The drain hose may be connected directly into
an open drain or via the waste outlet similar to a washing machine. When connecting to a drain the regulation air gap is required to prevent backflow.
Make sure the hose is not kinked as this will stop the operation of the softener.
8
Please Remember – Only use tablet or pellet salt in your softener!
Connecting to electrics
ELECTRICAL INSTALLATION
The water softener works on a 24 volt, 50Hz electric power supply. You
must use the transformer supplied into a 240 volt outlet only. Be sure that
the electrical outlet you plug the transformer into is inside, as the
transformer is not designed for outdoor use.
To connect the transformer to the controller board, push the female end
plugs on to the male connectors as indicated below.
Should the faceplate fail to display or indicate an error code, please
check that the connections are as per the diagram below, you will need
to remove the valve cover to do this.
