Step-by-step guide to plumbing the softener (cont)
ELECTRICAL INSTALLATION
The water softener works on a 24 volt, 50Hz electric power
supply. You must plug the transformer into a 240 volt outlet
only. Be sure that the electrical outlet you plug the transformer
into is inside, as the transformer is not designed for outdoor use.
To connect the transformer to the controller board, push the
female end plugs on to the male connectors as indicated
below. The two flat ends of the female connectors should face
each other to allow for an easy connection.

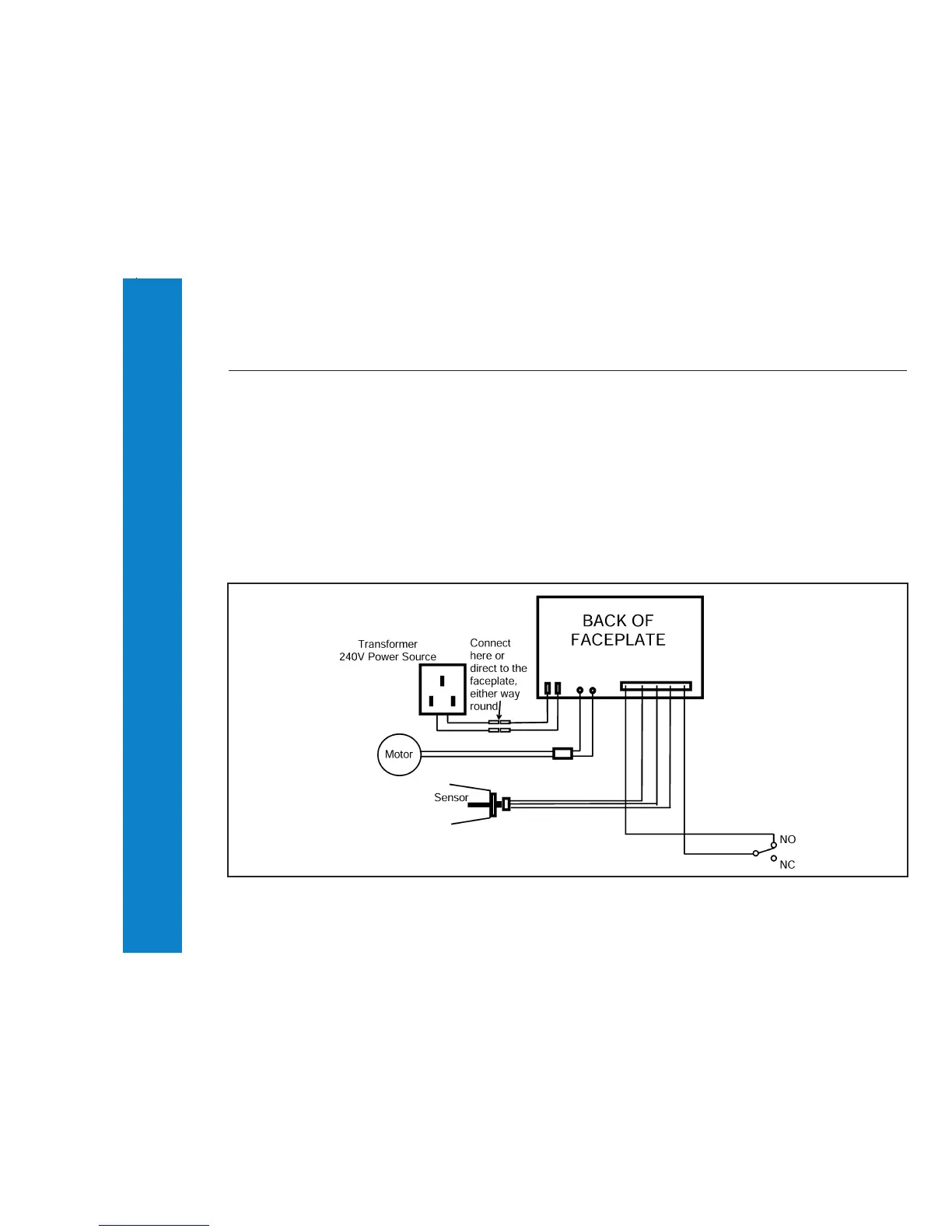

Should the faceplate fail to display or indicate an error code,
please check that the connections are as per the diagram
below, you will need to remove the valve cover to do this.
Installation of Tapworks Softener models Ultra 9, AD11 & AD 15
Please Remember – Only use tablet or pellet salt in your softener!
