Step-by-step guide to plumbing the softener (cont)
FIT THE INLET AND OUTLET ADAPTOR ELBOWS
Remove the plastic plug from the outlet port on the water softener valve, if present.
Adaptor elbows are pre-fitted with a single ‘O’ ring to the outer groove. Push the
adaptors into the valve inlet as far as they will go. Lightly lubricate using the silicone
grease provided.
Note: Do not use petroleum jelly or oil based lubricants

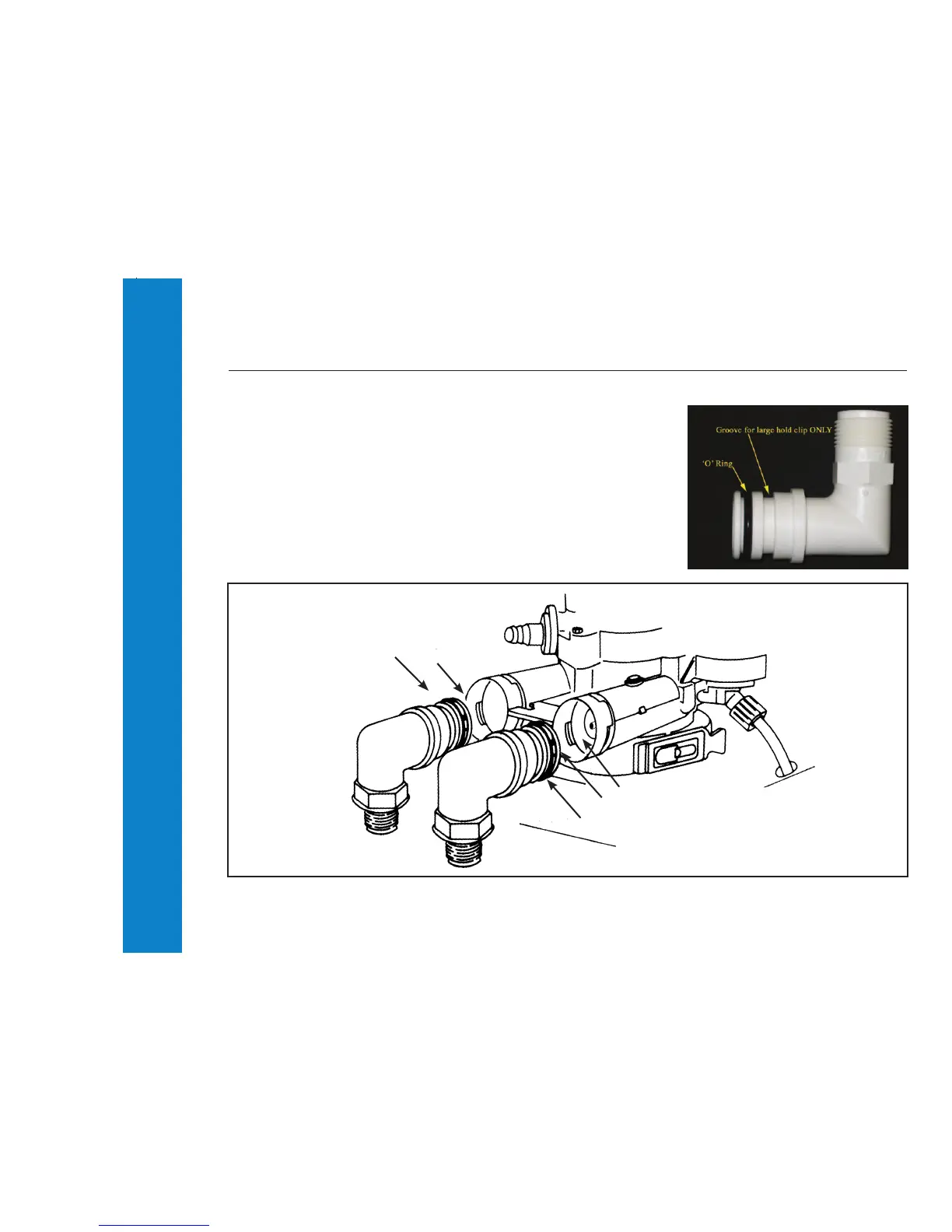

Note: See diagram opposite for ‘O’ Ring location (pre-fitted)
Spare ‘O’ rings are supplied only if required.
Installation of Tapworks Softener models Ultra 9, AD11 & AD 15
Please RememberOnly use tablet or pellet salt in your softener!
7
Turbine Located
Inside
‘O’ Ring
‘O’ Ring
Inlet
Outlet
