Contents
• Targus USB-C Universal Dual Video 4K Docking Station with 100W Power
• USB-C Cable
• AC Power adapter
• USB-C to USB-A adapter with Tether
• DC Output Cable
• Power Tips - 3A, 3H, 3H2, 3I2, 3P, 3W, 3X9
• USB-C mount bracket (for selected models)
Power Setup

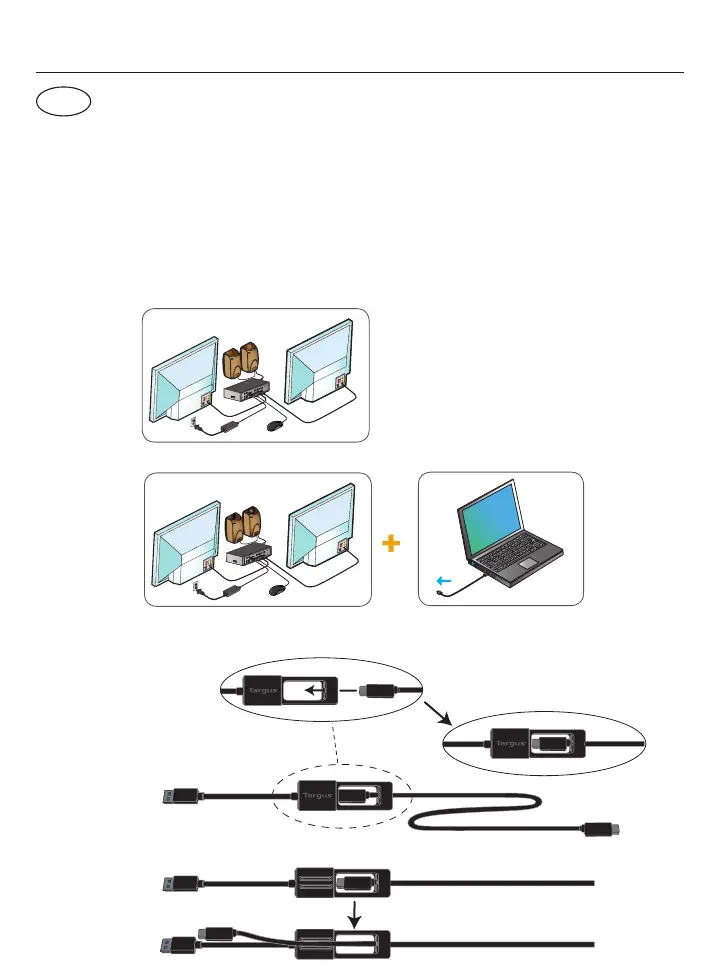

Workstation Setup
1. Connect all peripheral devices to the docking station.
2. Connect the Targus Universal Docking Station to your host device.
3. If your host device does not connect via USB-C, use the included USB-C to
USB-A adapter as shown below.
1.Locate the correct power tip
(test fit in laptop if needed)
2. Connect to the
power cord
3. Connect to your
laptop
GB
Targus USB-C Universal Dual Video 4K Docking Station with 100W Power Targus USB-C Universal Dual Video 4K Docking Station with 100W Power
Specications
• 2 x DisplayPort (DP++; DP1.2) / HDMI Port (HDMI 2.0)
• 4 x USB 3.0 downstream ports (port marked with supports BC 1.2 and
iOS device charging at 2.4A max)
• 1 x USB-C upstream port with supporting Power Delivery 2.0 Profile 5
(up to 100W max. charging)
• 1 x USB-C downstream port (USB 3.0, data transfer only)
• Gigabit Ethernet
• Audio In/Out ports (3.5mm headset connector)
• Security lock slot
• USB-C cable
• LED Power Indicator
• Power ON/OFF button
• DC Power In: 20.5V, 150W
• DC Power Out: 19.5V 90W max
Docking Station Diagram
Gigabit Ethernet HDMI HDMIDP++ DP++
USB 3.0
USB 3.0 Port (supports charging) USB-C Port
Lock Slot
Audio Headset Connector
USB to
Laptop Port
DC Power Out
DC Power In
Power On / O
For USB-A
connection
to laptop
Attach to
DOCK190
For USB-C
connection
to laptop
Back of the Adapter
Front of the
Adapter
To Next Page
