Task Force ZE04 - Replacement Parts and Diagram

17

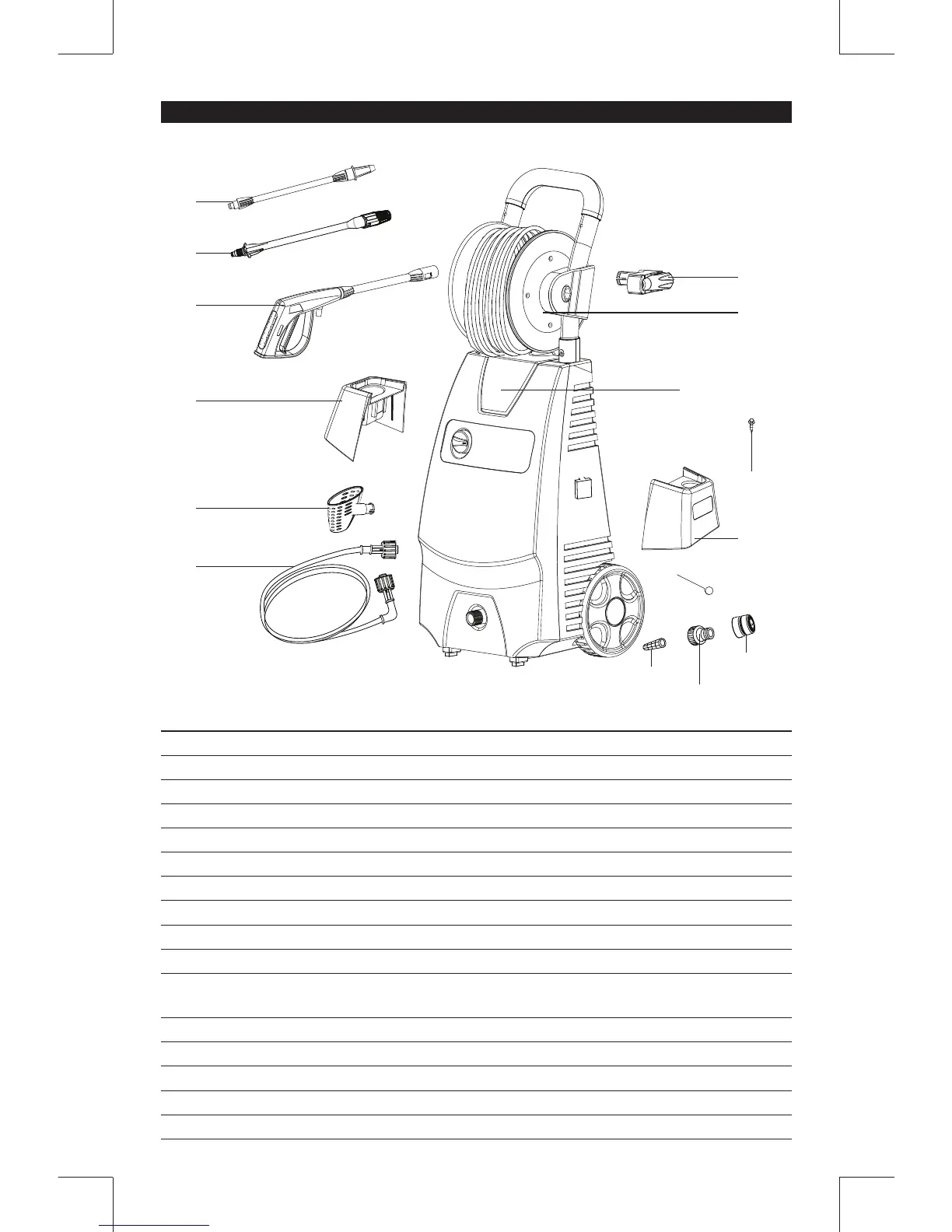

REPLACEMENT PARTS AND DIAGRAM
A
B
C
D
E
F
G
H
Q
J
K1
K2
L
M
N
Manual
P
Parts List
Item No. Quantity Part Name Part No.
A 1 Turbo wand (ZE04-090-0004)
B 1 Adjustable wand (ZE01-090-0003)
C 1 Gun Assembly (ZE01-090-0001)
D 1 Left Wing (Gun holder) (ZE04-090-0007)
E 1 Gun holder (ZE04-000-0001)
F 1 Extension hose (ZE04-090-0008)
G 1 Hand crank (ZE04-090-0009)
H 1 Hose Reel (ZE04-090-0005)
I 1 High-pressure hose (ZE04-090-0002)
J 1 Right Wing (Wand holder) (ZE04-090-0006)
K1 1 Quick-connect coupling (ZE01-050-0000)
K2 1 Inlet adaptor
L 1 Water lter (ZE01-000-0003)
M 1 User manual (ZE04-900-0002)
N 1 Needle (ZE01-900-0001)
P 2 Wing Screw (ZE04-000-0006)
Q 1 Detergent container (ZE04-090-0010)
