All nuts and screws are brought in from the front to back - with the nut on the backside.
Required parts for step 3:

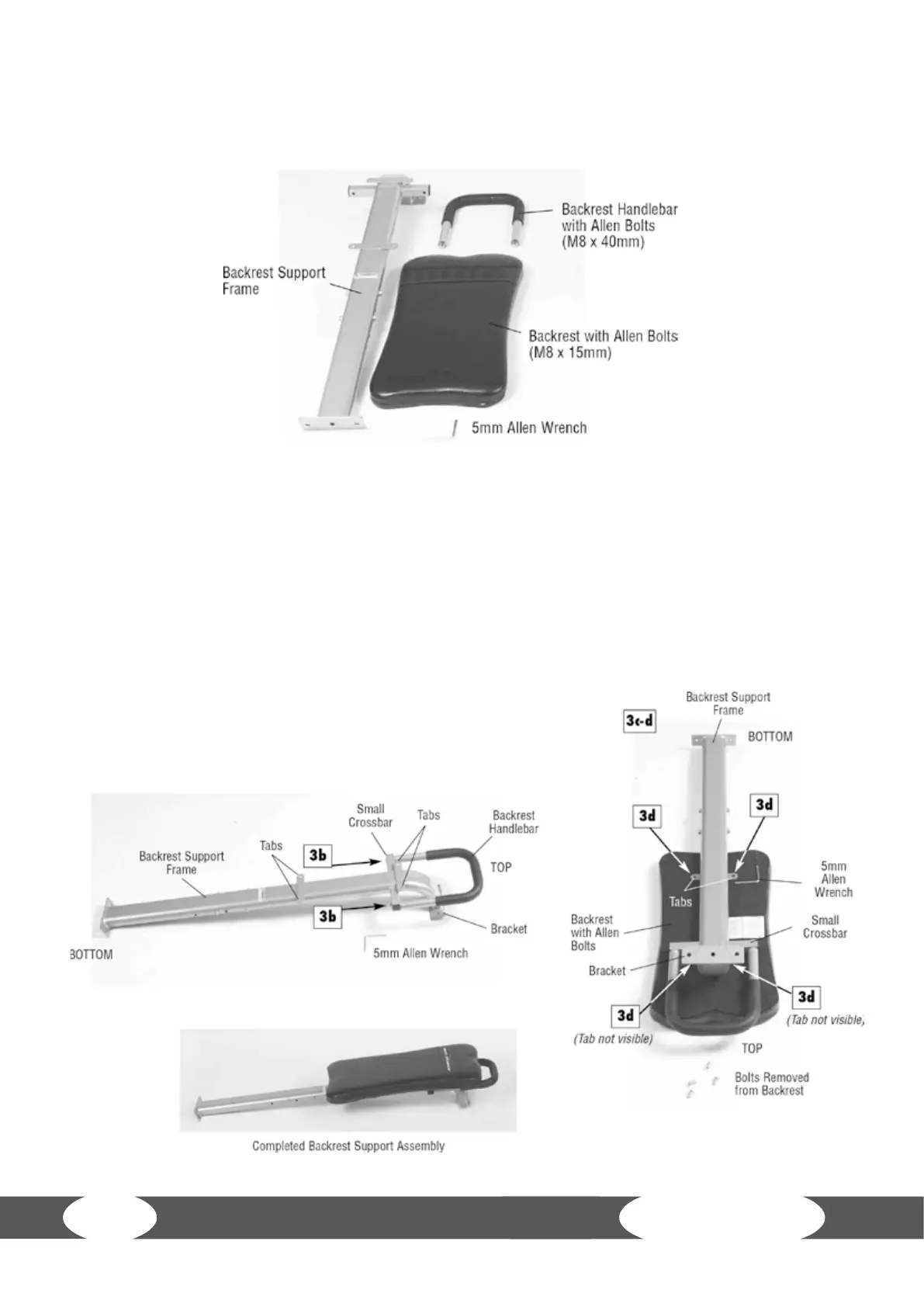

Step 3: Assembly backrest supporting frame
1. Loosen the screws from the handle of the backrest.
2. Mount the handle with the previously loosened screws on the small crossbar on the upper
end of the backrest frame. Tighten the screws with the Allen wrench.
3. Turn the backrest and remove the pre-mounted backside.
4. Turn the backrest frame so that the brackets are at on the backrest. Make sure that the
upper end of the backrest (end with the logo) is on the upper end of the frame (end with
handle) (see bottom right). Mount the backrest in this position by tightening the Allen
screws previously loosened in step 3c.
