Models 340, 341, 342 Operator Parts Identification
040826

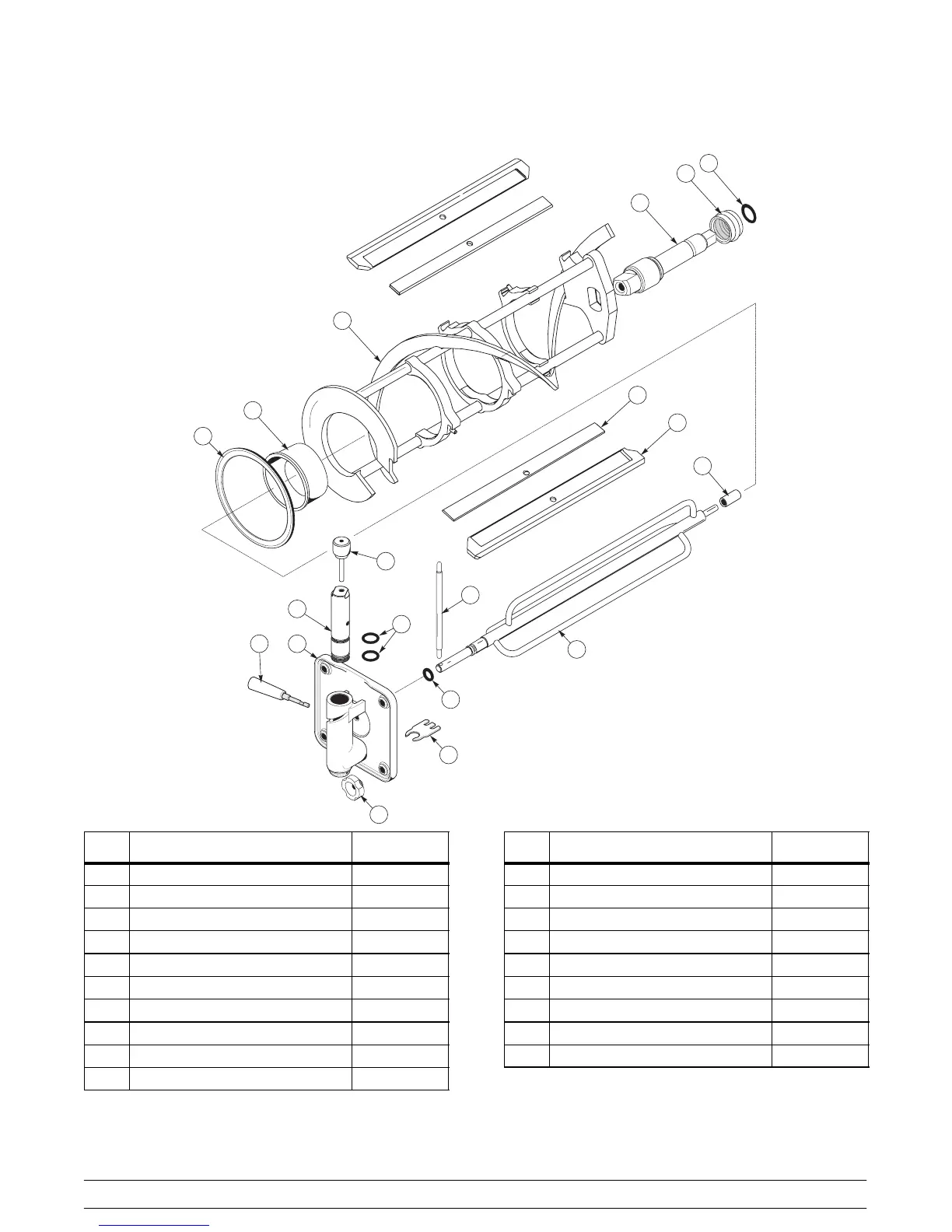

Models 340, 341, 342 Beater Door Assembly
2
1
6
7
8
9
10
11
12
13
15
16
17
3
4
5
14
18
19
Item Description Part No.
1 Door A.-Partial X39248
2 Handle A.-Draw-Slush X25124
3 Valve-Draw 047734
4 Valve A.-Handle Pin X25929
5 O-Ring -1 OD x .139 W 032504
6 Buster-Ice 047735
7 O-Ring -.291 ID x .080 W 018550
*8 Torque Assembly X14488
9 Bearing -Guide 014496
10 Gasket-Door-5.109 D x 5.63 OD 014030
Item Description Part No.
11 Bearing-Front 013116
12 Beater A. -7 QT-1 Pin Support X46233
13 Clip -Scraper Blade*8.75”* 046238
14 Torque Arm 014500
15 Shaft-Beater 035418
16 Seal-Drive Shaft 032560
17 O-Ring-7/8 OD x .139 W 025307
18 Stud Nut 029880
19 Blade-Scraper-Plastic 9 -13/16L 046237
*Note: Use optional Torque Assembly X27027 --1,
Arm--Torque 029549, and Spring --Torque*Red* 020232
for soft slush application.
