Taylor 369 - Page 7

Models 369/370/371 7
ENGLISH

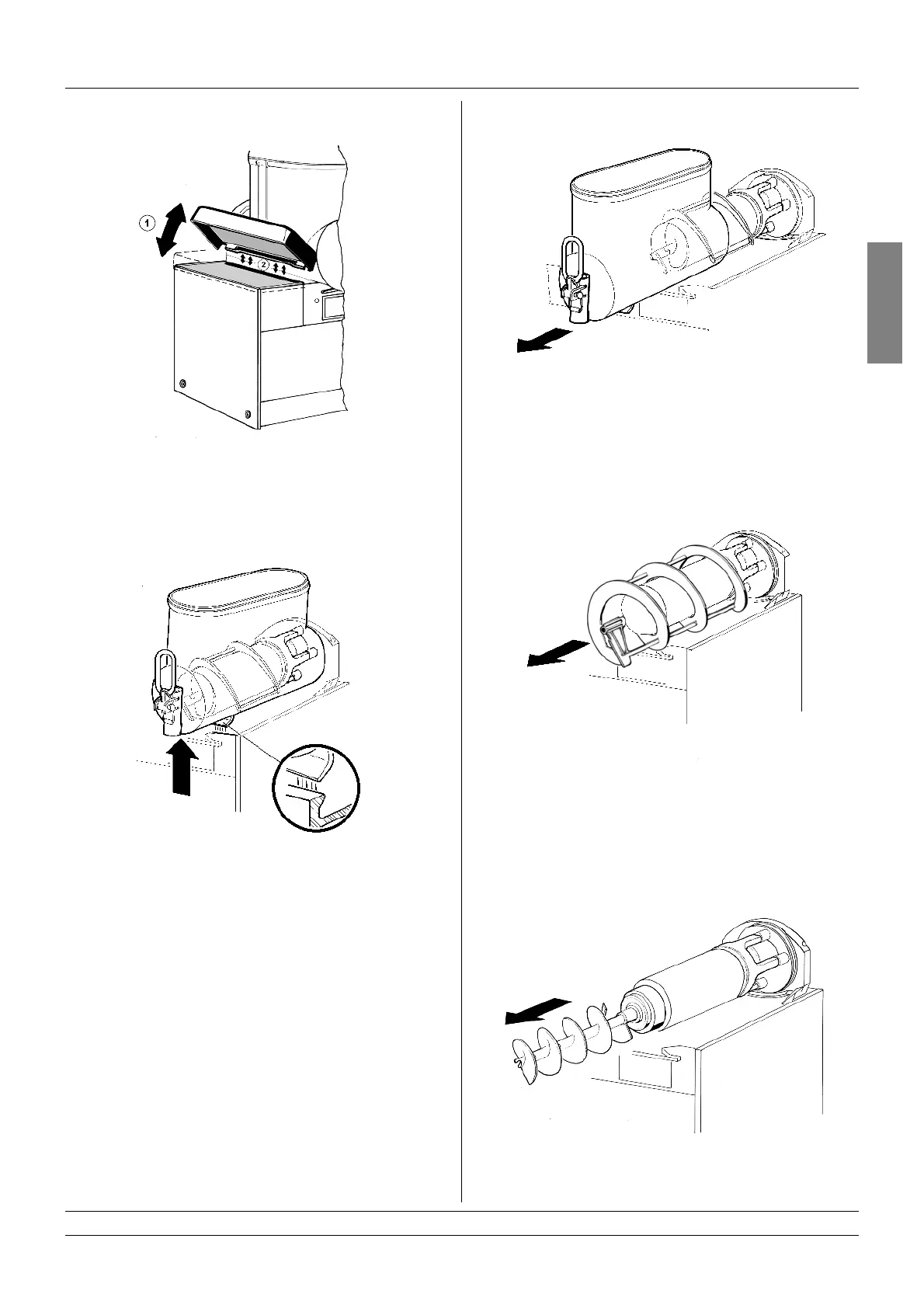

side up and off the hook located on the opposite side (see
figure 6).
figure 6
3 - Remove the bowl by lifting its faucet side up and off the
fastening hooks (see figure 7) and slide it out (see figure
8).
figure 7
figure 8
4 - Slide the outer spiral out (see figure 9) and then the inside
auger (see figure 10).
figure 9
figure 10
