Model 390Operator Parts Identification

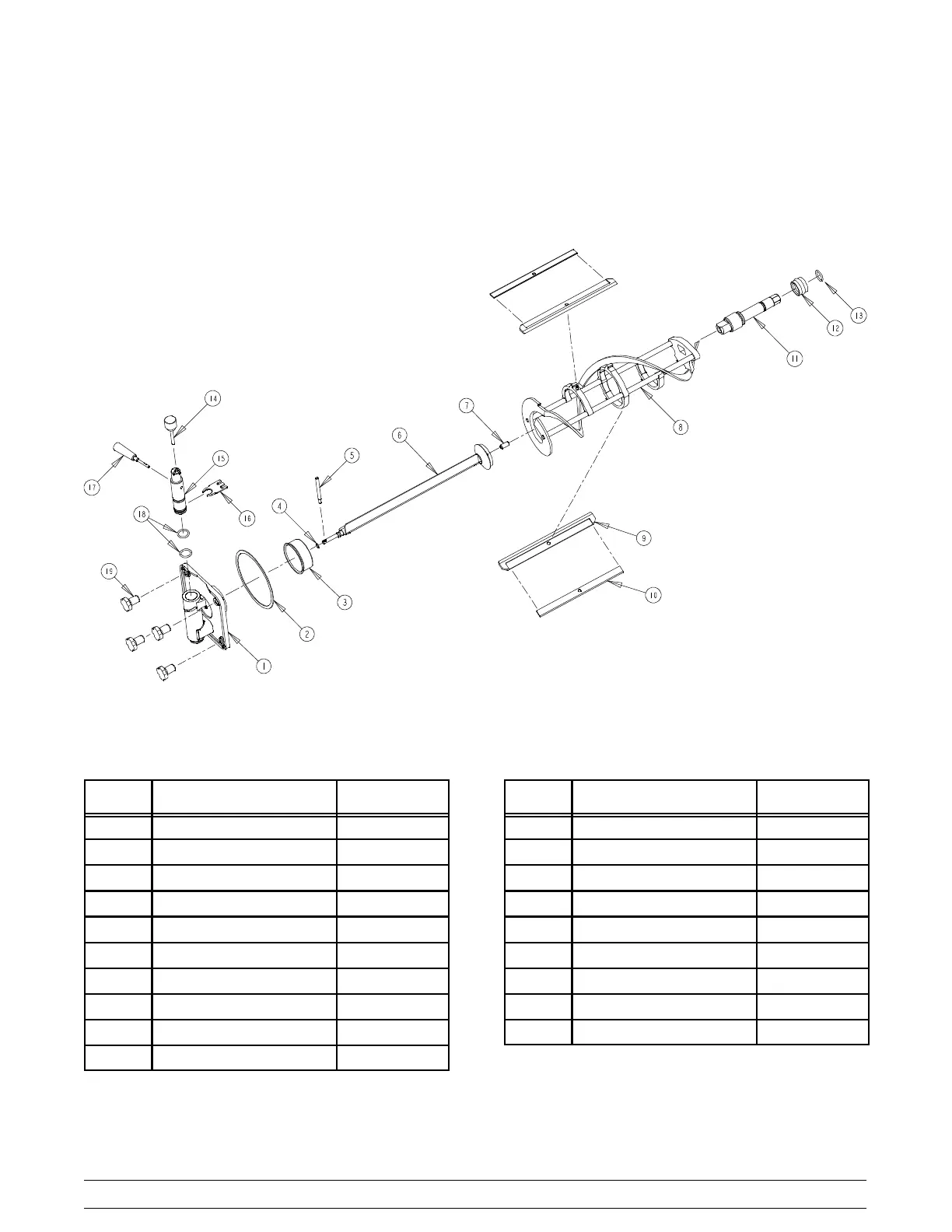

Beater Assembly
Item Description Part Number
1 Freezer Door X47982
2 Gasket- Door 014030
3 Front Bearing 013116
4 O- Ring- Baffle 018550
5 Baffle Arm 047729
6 Baffle X47731
7 Guide Bearing 014496
8 Beater X46233
9 Scraper Blade 046237
10 Clip- Scraper Blade 046238
Item Description Part Number
11 Beater Shaft 036412
12 Seal- Beater Shaft 032560
13 O- Ring- Beater Shaft 025307
14 Valve Handle Pin X25929
15 Draw Valve 047734
16 Ice Buster 047735
17 Draw Handle X47384
18 O- Ring- Draw Valve (2) 032504
19 Stud Nut 029880
