Taylor 754 Operator's Manual

Section 4
4-1
Models 750, 751, 754, 774, 791, and 794
Operator Parts Identification
4
Operator Parts Identification
Model 750

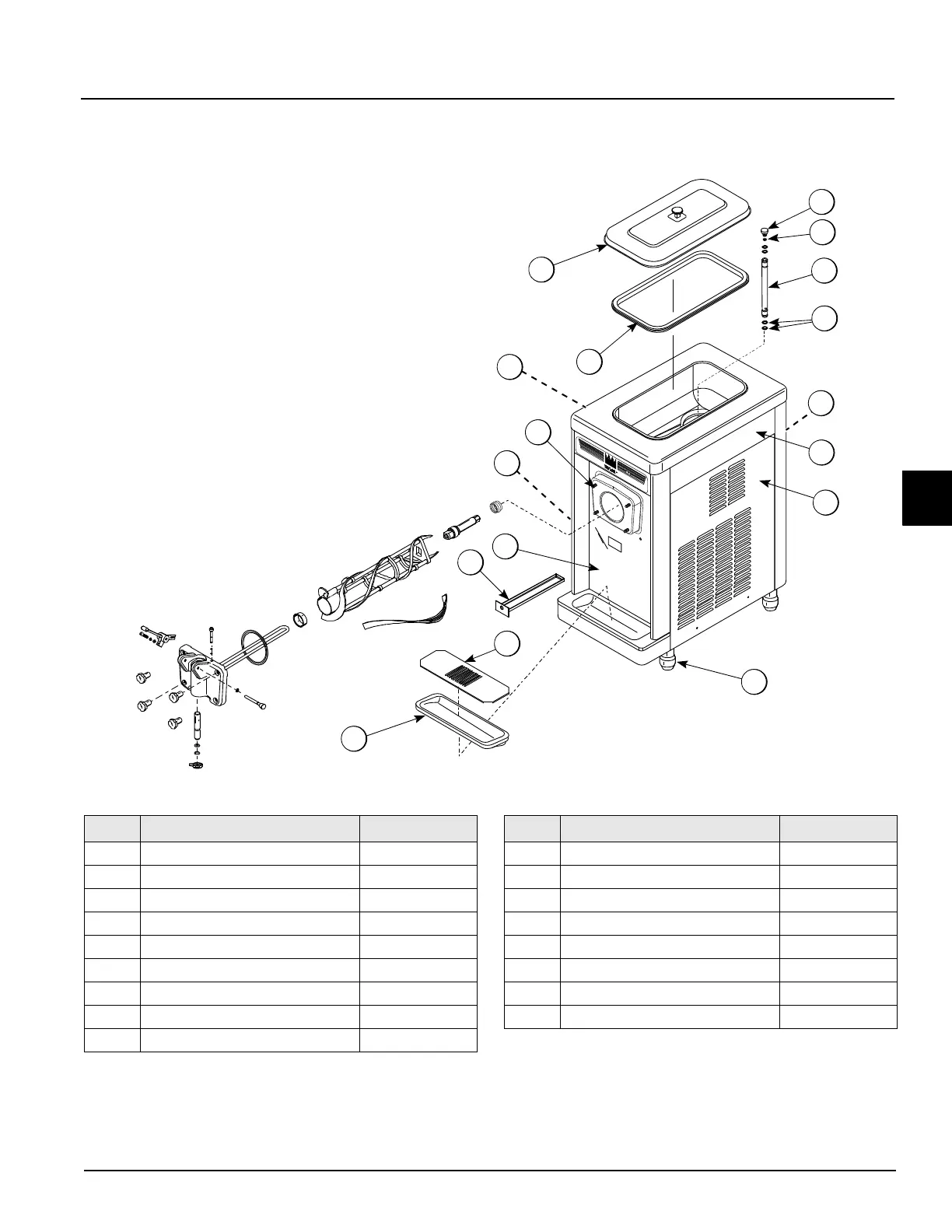

Figure 4-1
14
6
13
8
9
10
11
7
5
4
12
2
1
15
3
16
17
Item Description Part No.
1 Cover A.-Hopper X38458-SER
2 Gasket-Hopper Cover 038375
3 Tube A.-Feed X29429-2
4 Panel-Rear 020891
5 Panel-Upper Side Right 042317
6 Pan-Drip 050766
7 Panel-Right Side 050742
8 Shield-Splash 022763
9 Tray-Drip 013690
Item Description Part No.
10 Panel-Side Left 050741
11 Leg-4” SS w/O-ring 013458
12 Louver-Side 051192
13 Stud-Nose Cone 022822
14 Panel A.-Front X50754
15 O-ring-.643 OD x .077 W 018572
16 O-ring-3/8 OD x .070 W 016137
17 Orifice 022465-100
