Taylor 754 Operator's Manual

OPERATOR PARTS IDENTIFICATION
4-9
Models 750, 751, 754, 774, 791, and 794
Operator Parts Identification
4

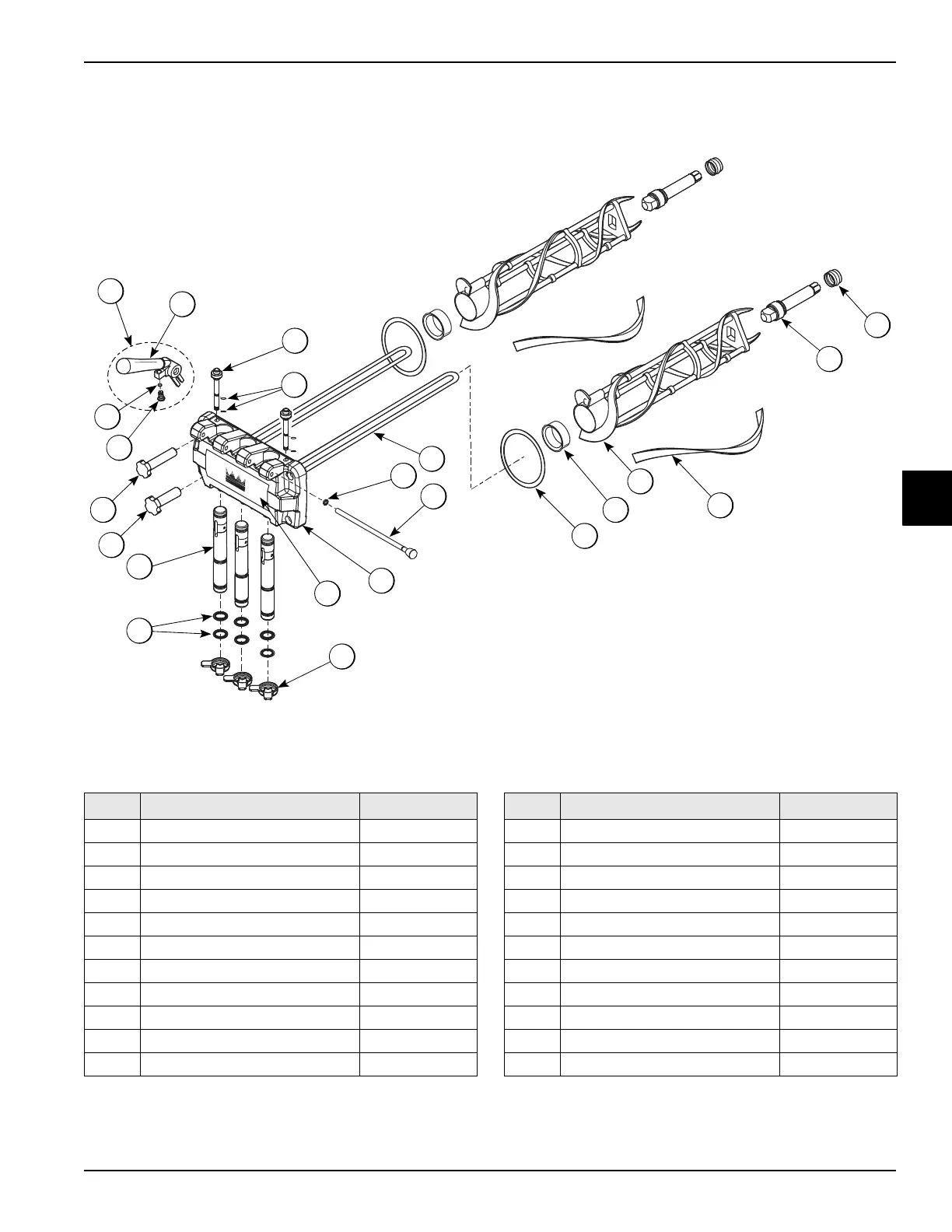

Models 754, 774 and 794 Three-Spout Door and Beater Assembly
Figure 4-9
14
6
13
5
9
12
18
2
1
15
3
16
17
1a
11
4
7
10
8c
8b
8a
8
Item Description Part No.
1 Door A.-3 Spout X51532-12
1a Baffle A.-Long 4 IN X50882
2 Decal-Door-3 Spout 021521
3 Valve A.-Draw X69539
4 O-ring-7/8 OD x .103W-SIL 083693
5 Cap-Design 1.010" ID-6 Point 014218
6 Plug-Prime 028805
7 O-ring-3/8 OD x .070W 016137
8 Handle A.-Draw *White X81010-SP
8a Handle-Draw-White 056248-1
8b Screw-ADJ.-5/16-24 056332
Item Description Part No.
8c O-ring-1/4 OD x .070W 50 015872
9 Nut-Stud *Long 034382
10 Nut-Stud *Short 034383
11 Rod A.-Pivot X20683
12 O-ring-5/16 OD x .070W 016272
13 Gasket-Door HT 4"-Double 048926
14 Bearing-Front 050216
15 Beater A.-3.4QT-Helicore X31761
16 Blade-Scraper-Plastic 035174
17 Shaft-Beater 032564
18 Seal-Drive Shaft 032560
