Taylor C832 Service Manual

127
McDonald's Intelligap Grills
Parts

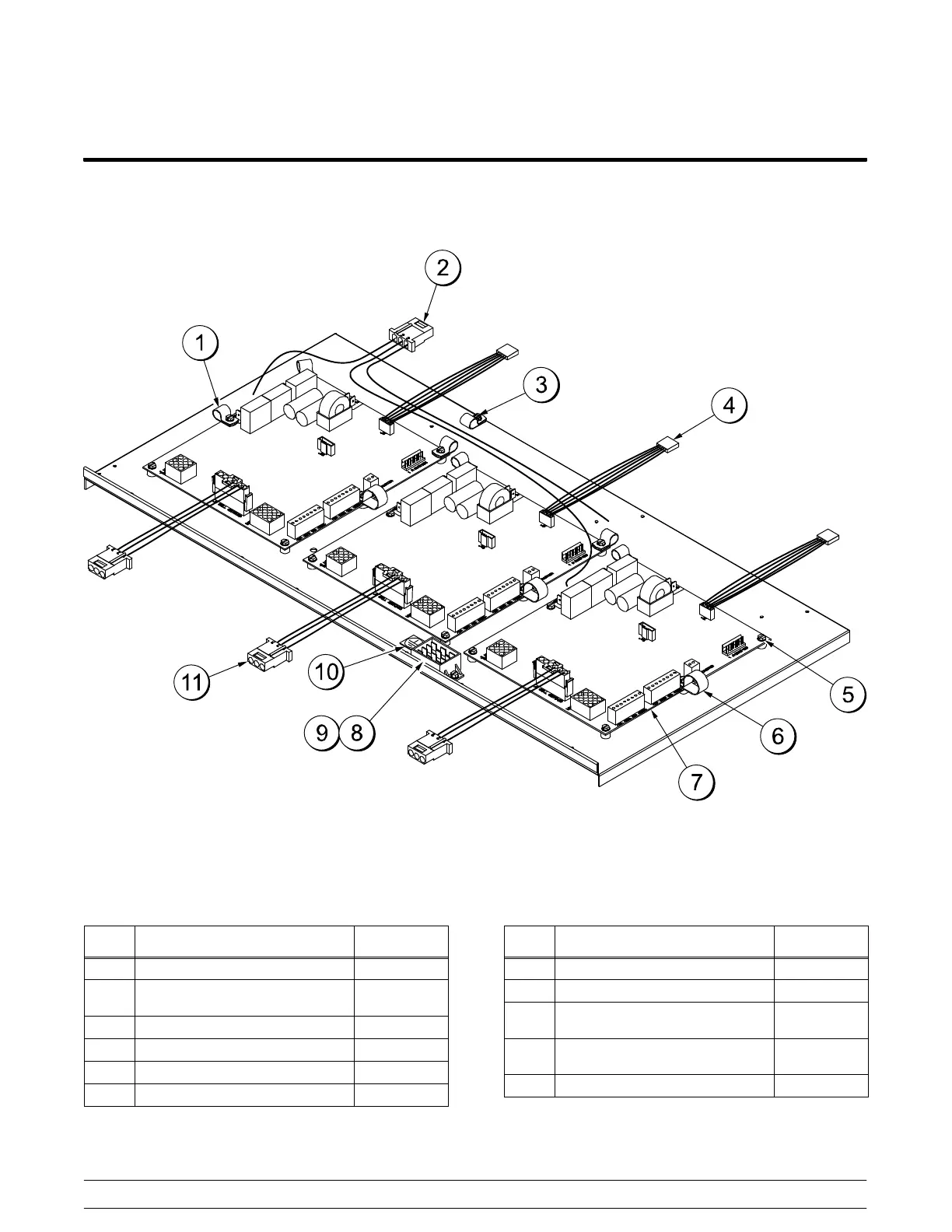

Control A.-Lower - X73383-23 (60 Hz) -75 (50 Hz) (C845)
Figure 70
ITEM DESCRIPTION PART NO.
1 CLAMP-CABLE 3/8" PLASTIC 000290
2 HARNESS A.-CNTL BOX
(60 HZ)
X74157
3 SCREW-6-32X3/8 SLTD HWH 042022
4 HARNESS-PCB/LOGIC 072527
5 SCREW-6-32X5/8 UNSLTD 041363
6 CLAMP-LOOP 3/4 ID WHITE 036622
ITEM DESCRIPTION PART NO.
7 CONTROL-MOTOR INTERFACE X72436-SER
8 BLOCK-TERMINAL 1P 073423
9 SCREW-8X1/2 SLTD HEX
WASHER
075763
10 LABEL-PROTECTIVE EARTH
GROUND
017669
11 HARNESS-PCB/GR SWITCH 072529
