Taylor C832 - Springs (C832;C834;C835;C836;C838)

149
McDonald's Intelligap Grills
Parts
140423
Springs (C832/C834/C835/C836/C838)

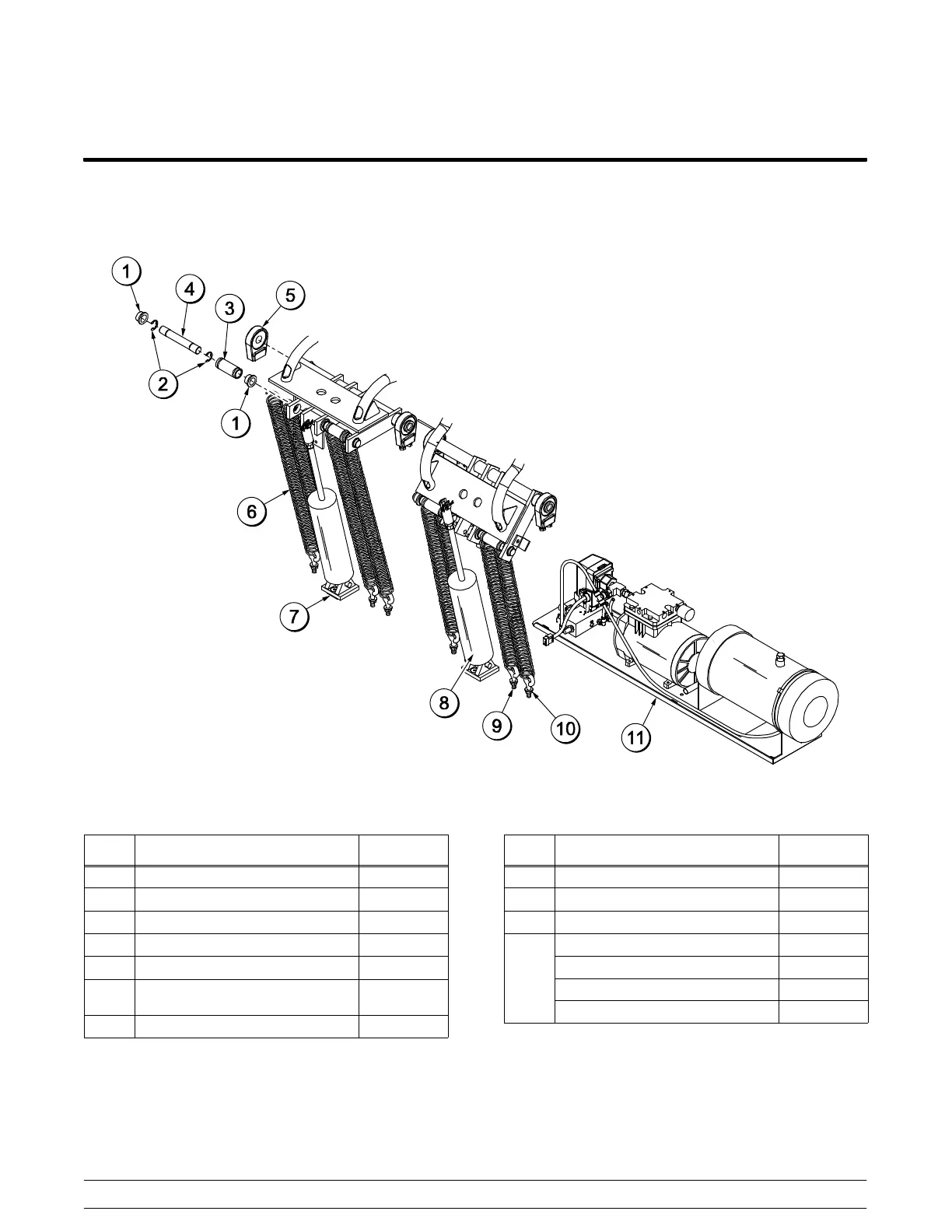

Figure 85
ITEM DESCRIPTION PART NO.
1 BEARING-FLANGE 3/4 X 15/16 077042
2 E-RING-3/4 STEEL 077046
3 BEARING .753 X 1.000 X 2.500 074398
4 PIN-SPRING UPPER 074399
5 BEARING 3/4 ID-SELF ALIGN 078730
6 SPRING-EXTENSION
1.4X.12X8.8
074396
7 BRACKET-PIVOT 076451
ITEM DESCRIPTION PART NO.
8 CYLINDER-AIR 6IN STROKE 079160
9 SCREW-EYE 3/8-16X1 BOLT 074397
10 NUT-3/8-16 WHIZ FLANGE LOC 017329
11
COMPRESSOR A.-AIR (C832) X73128-
COMPRESSOR A.-AIR (C834) X73288-
COMPRESSOR A.-AIR (C835) X73143-
COMPRESSOR A.-AIR (C836) X83304-34
