28
C801/C801R/F802/P802/C803/C803R/C804Operating Procedures

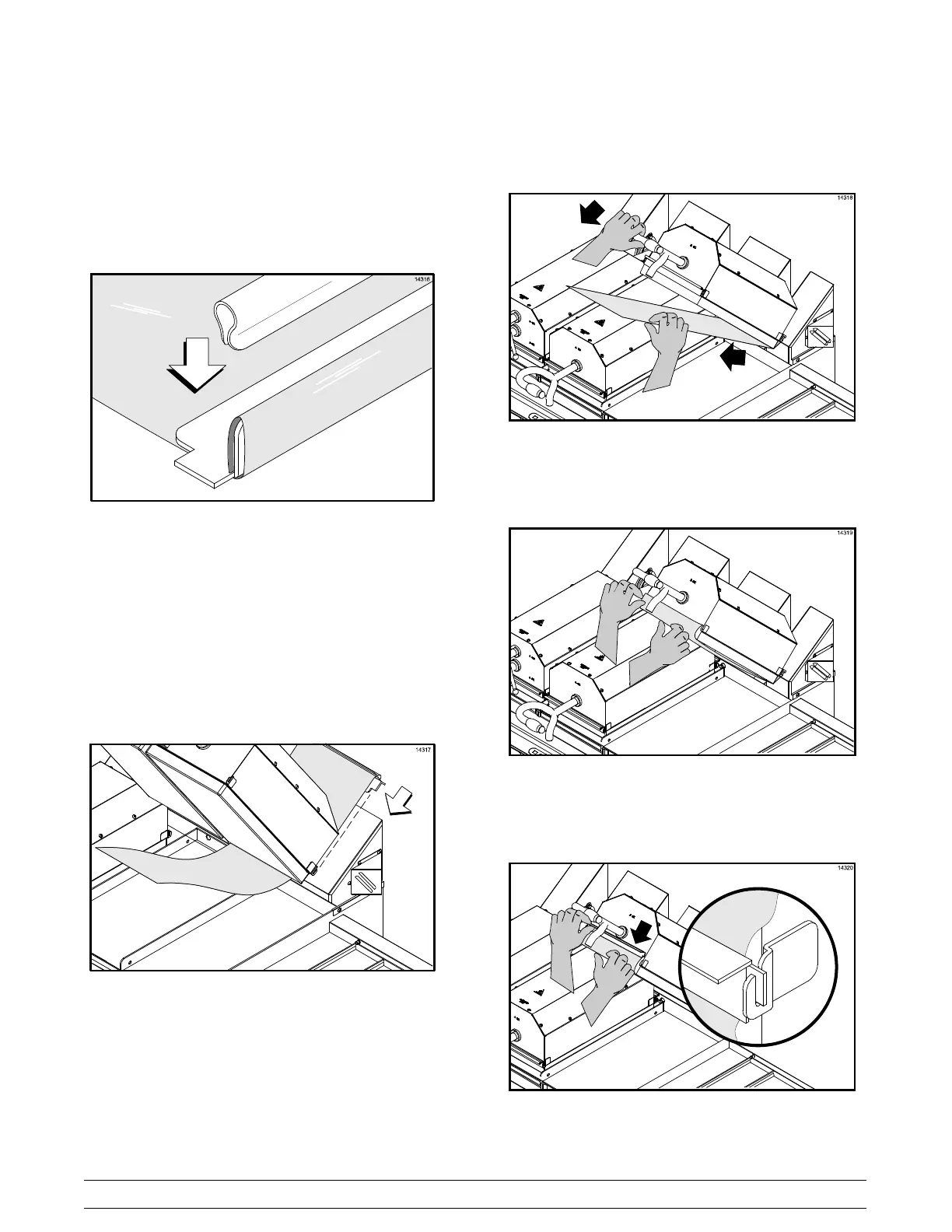

Step 4
Hold the release sheet in place using downward
pressure. Roll the release sheet bracket forward 90°.
Re-attach the retainer clip, making sure the clip is
centered on the release sheet bracket.
Figure 25
Step 5
With the release sheet bracket notches facing down
and the retainer clip facing the back of the grill, slide
the notches of the release sheet bracket onto the
rear release sheet bracket.
Figure 26
Note: Lower the platen(s) next to the platen being
worked on to ease the installation of the rear release
sheet bracket.
Step 6
Close the platen while pulling back on the release
sheet.
Figure 27
Step 7
Lift the release sheet up against the front of platen
and hold it in place.
Figure 28
Step 8
Install the release sheet bracket onto the front
release sheet bracket.
Figure 29
