31
Model SB25
Controls and Systems

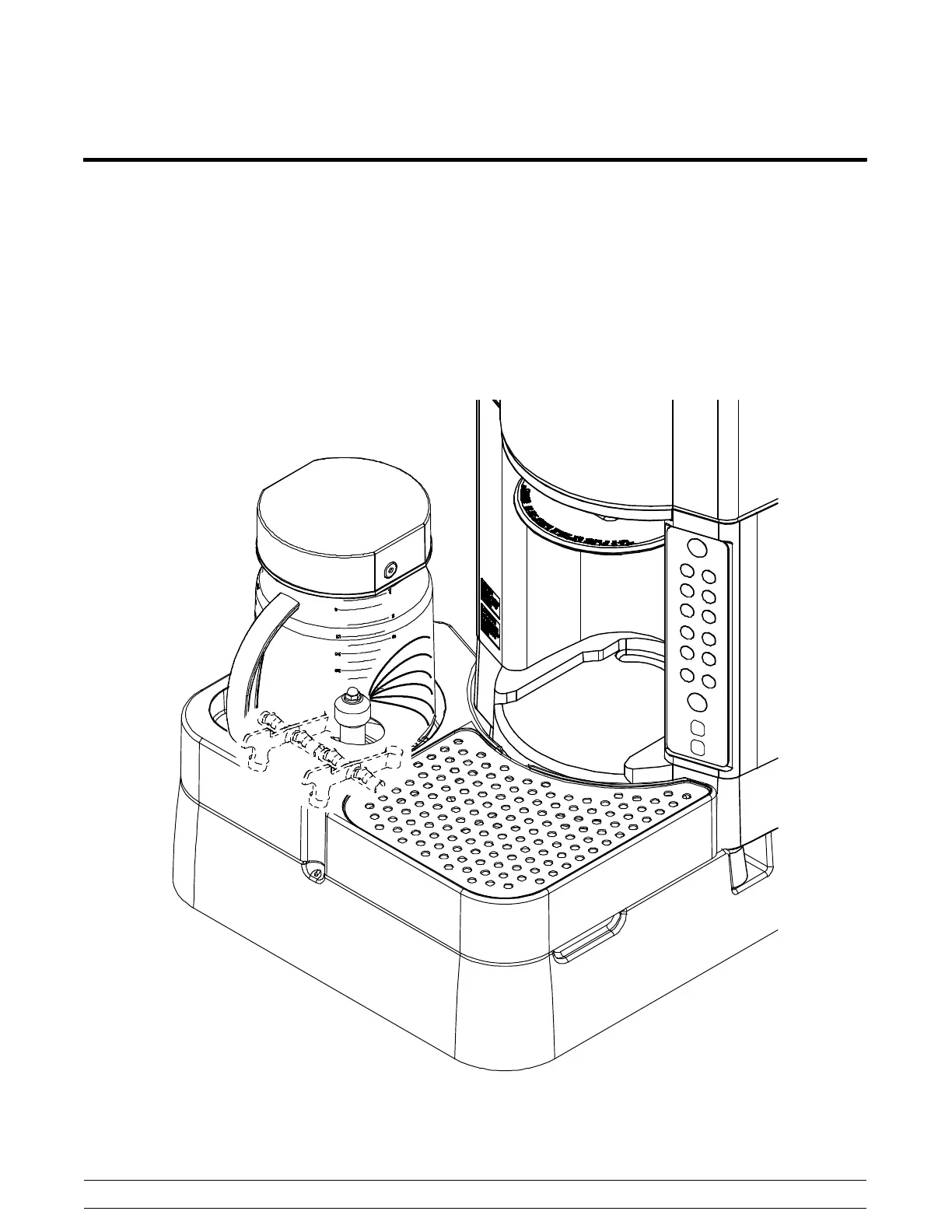

Blender Pitcher Rinse Station
The blender pitcher rinse station is activated when a
pitcher is properly placed in position, which lowers
the actuator. When the actuator is lowered, the
magnet inside the actuator closes a reed switch
beneath the bowl. After a short delay, rinse water
begins to flow from the spray rinse nozzle.
If the water pressure to the unit is correct, the water
will flow for approximately six seconds and dispense
approximately 25 ounces of water.
Note: The rinse duration setting is adjustable and
can be set to 5, 7, 9, or 12 seconds. (See page 32.)
To repeat this cycle, the pitcher must be removed,
allowing the actuator to rise to its natural “up”
position. This action opens the reed switch. Once
the reed switch is open, the rinse cycle resets. This
allows the cycle to repeat when another pitcher is
placed on the rinse station.
Figure 41
