Taylor SB25 - Blender Drive Board

30
Controls and Systems
Model SB25

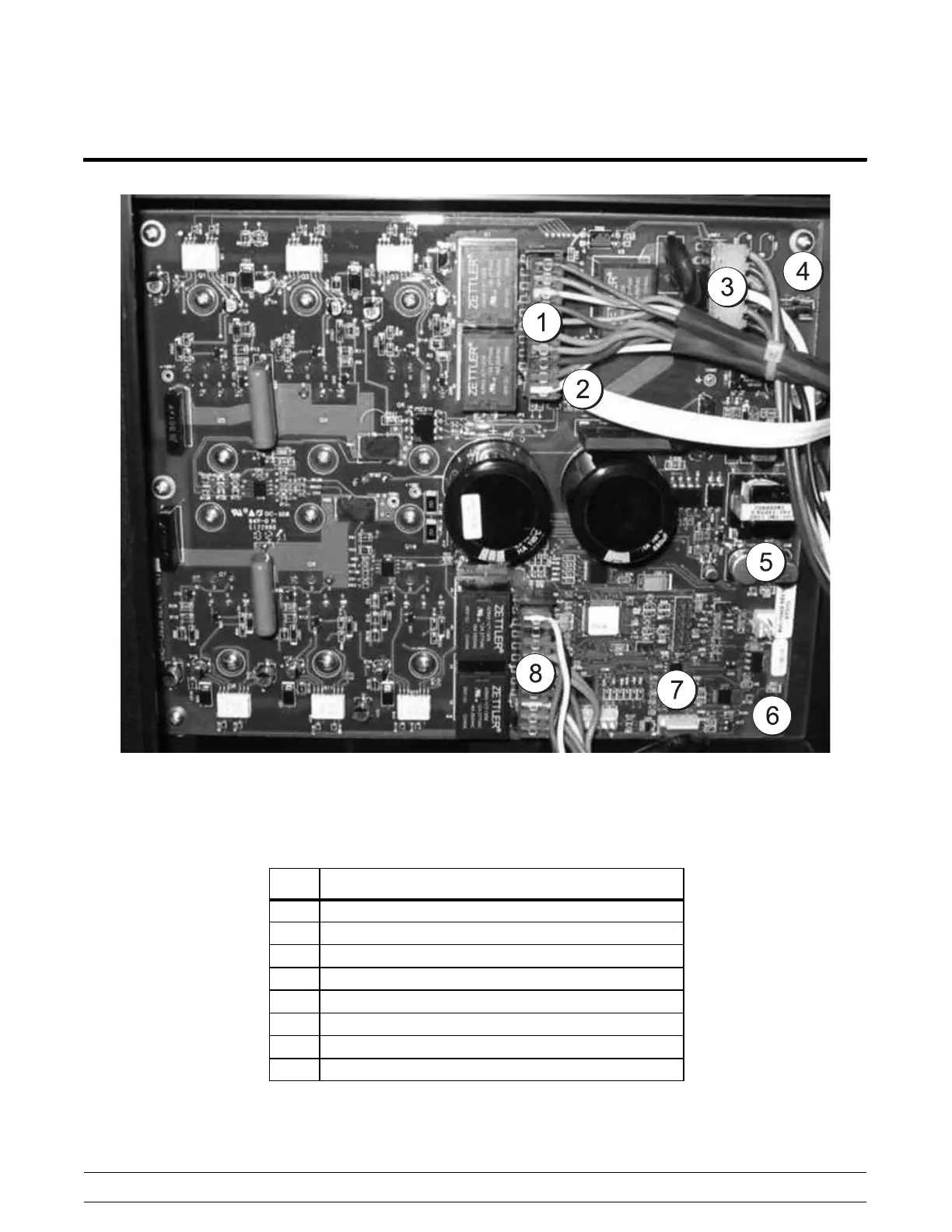

Blender Drive Board
Figure 40
Note: See page 43 for blender drive board LED indicator troubleshooting.
ITEM DESCRIPTION
1 KIT A.-MOTOR SHAVER
*2 DRAIN-MAIN W/SAFETY SWITCH
**3 POWER SUPPLY 115 VAC
4 FUSE-BOARD-DRIVER I.O.
5 LED-HEARTBEAT
6 LED-TROUBLESHOOTING
**7 COMMUNICATION CABLE TO DISPENSE BOARD
8 KIT A.-MOTOR BLENDER
* L ID-IN-PLACE SENSOR IS IN ICE HOPPER SUPPORT
** PART OF 066891 HARNESS
