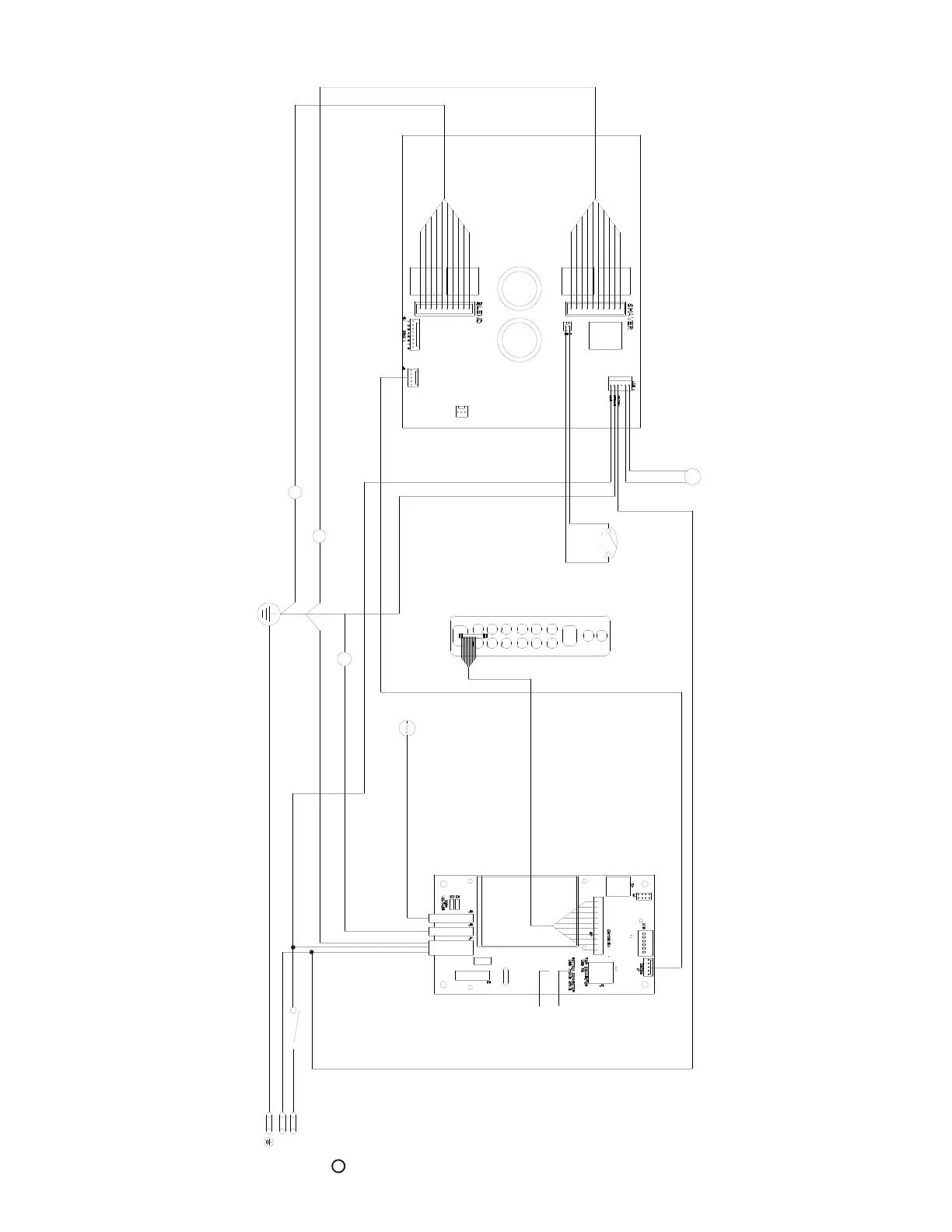

Taylor SB25 - Wiring Diagram

Model SB25
083087-12
08/14
Taylor Company
2014 Carrier Commercial Refrigeration, Inc.
c
GRN
SHAVER
MOTOR
CANE PUMP
BLK
M
M
M
BLENDER
MOTOR
BLK
1A
2A
HOPPER
SAFETY
SWITCH
USB A JACK
USB B JACK
WATER
SOLENOID
DATA PORT
GRN
GRN
GRN
WHT
GRN
BLK
L1
N
POWER SWITCH
DISPENSE
PCB
GRY
BLU
