9. Adjust the reed switches until the triggers are
functioning properly. Functioning triggers will
cause an audible click of the solenoid.

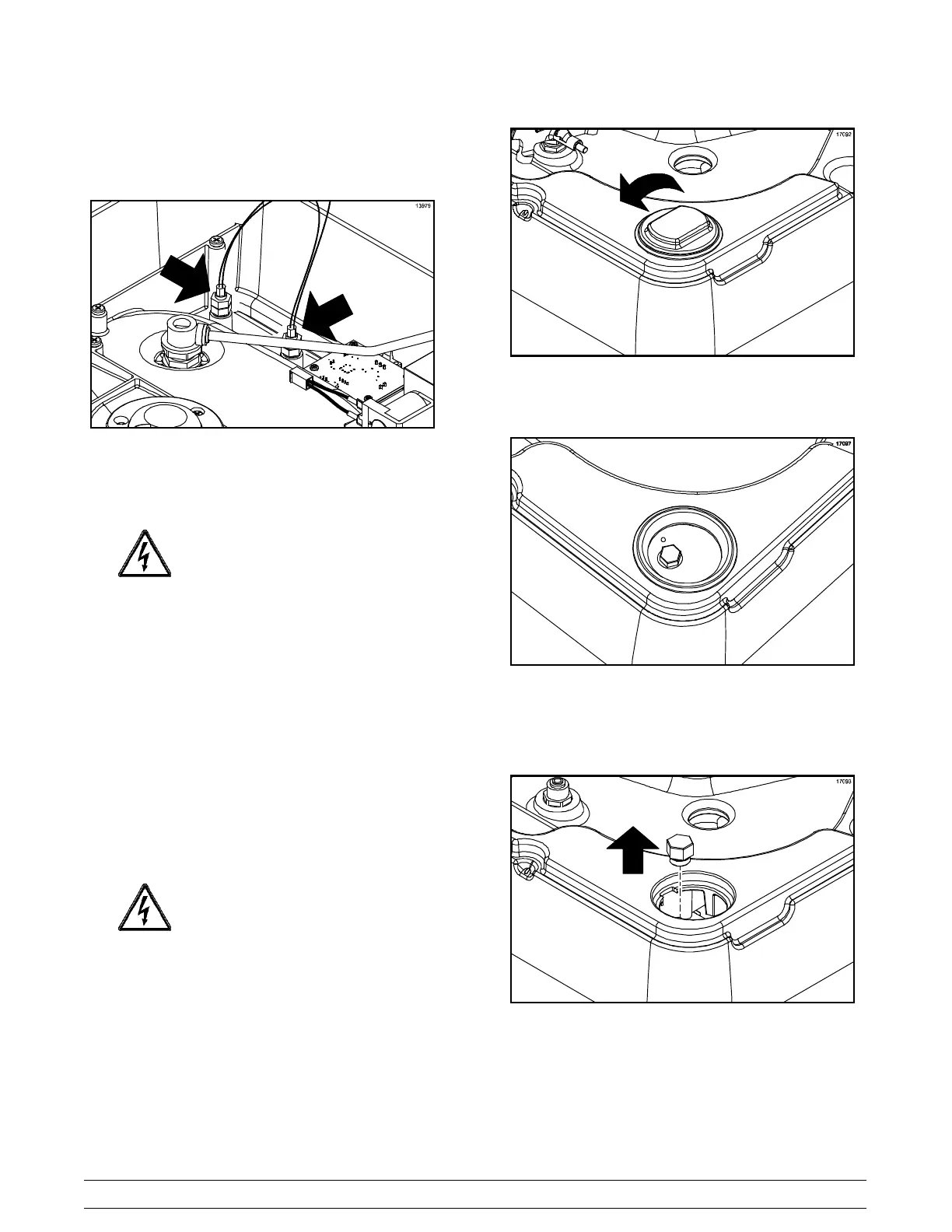

Figure 45
10. Swap the triggers and ensure that the triggers
will function in either position.
11.
Turn off the main power.
12. Remove the jumper.
13. Reassemble the unit.
Filter Screen
______________________________
The filter is designed to keep debris away from the
solenoid that triggers the flow of water through the
Rinse Station spray nozzle.
To clean or replace the filter screen, perform the
following steps.
1.
Turn off the main power to the unit.
2. Disconnect the power adaptor from the main
power jack.
3. Disconnect the water supply at the quick
connect fitting.
4. Remove the front pan assembly.
5. Remove the filter cover by turning the cover to
the left 1/4 turn.
Figure 46
Figure 47
6. Remove the hex cap on the filter.
Figure 48
7. Remove and clean or replace the screen.
8. Reassemble the unit.
