INSTALLATION 6 WAY LATCH
1
6 WAY LATCH

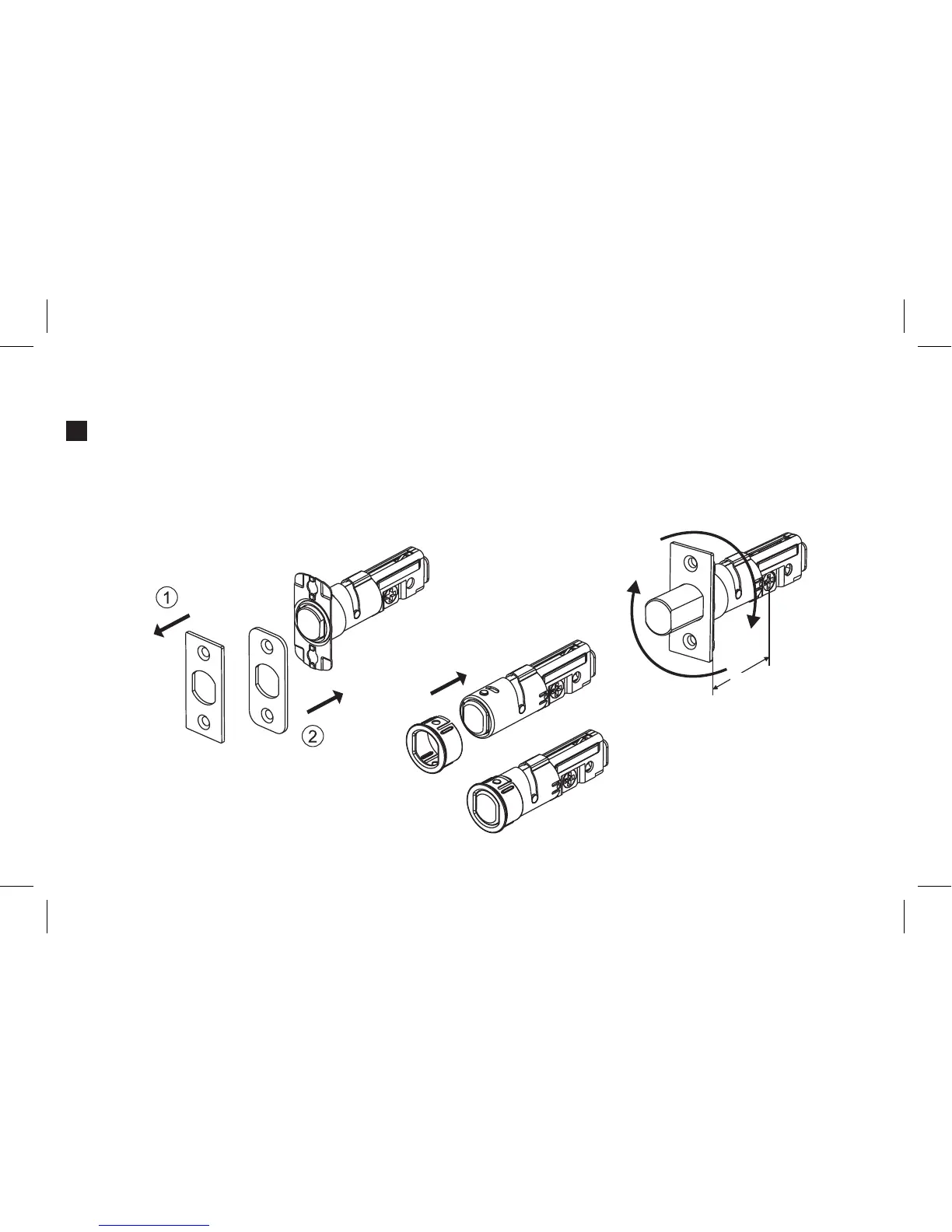

To Change Latch Faces
1. Use a flat-head screwdriver to separate
the faceplate form the backplate.
2. Snap the selected faceplate onto the
backplate.
Latch Backset Adjustment
To rotate the latch case as following
illustration for backset 2-3/4” (70 mm)
or reverse direction for 2-3/8” (60 mm)
Drive-in Installation
Make sure the round faceplate is properly
aligned as illustrated and snap it to the
latch case.
DRIVE-IN LATCH
2-3/4” (70 mm)
