TEMPLATE
CENTERLINE
MARK DOOR EDGE APPROXIMATELY
3” TO 6” (75 mm TO 150 mm) ABOVE
THE ENTRY KNOB OR LEVER
DOOR PREPARATION
1
MARK DOOR WITH TEMPLATE (ATTACHED SEPARATELY)
Note: If replacing an existing lock or installing in a pre-drilled door, begin with page 8.

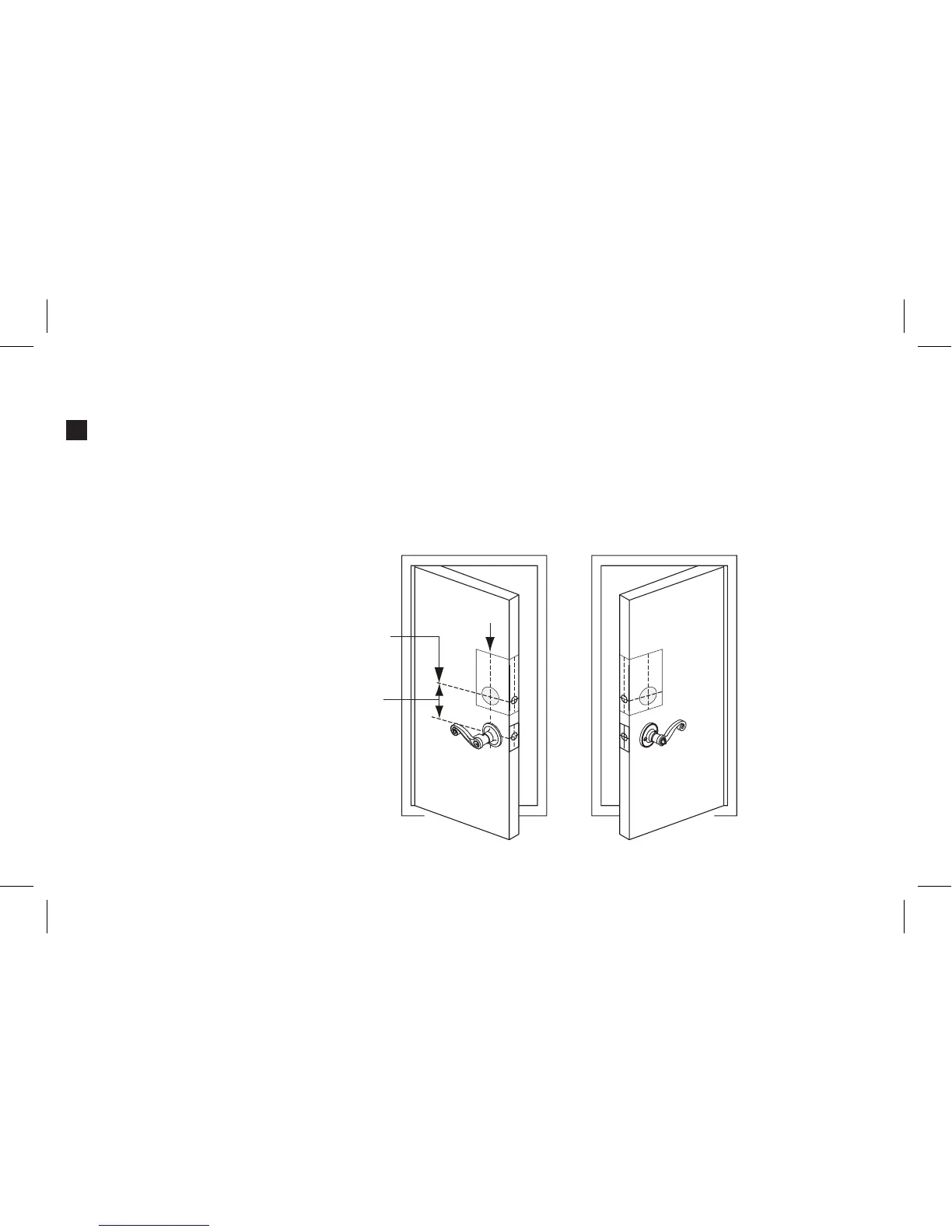

a. Use TEMPLATE to mark centerline on door for deadbolt about 3” to 6” (75 mm to 150 mm) above
the existing knob or lever.
b. Stand so door swings towards you. Align template on centerline and fold template as shown.
