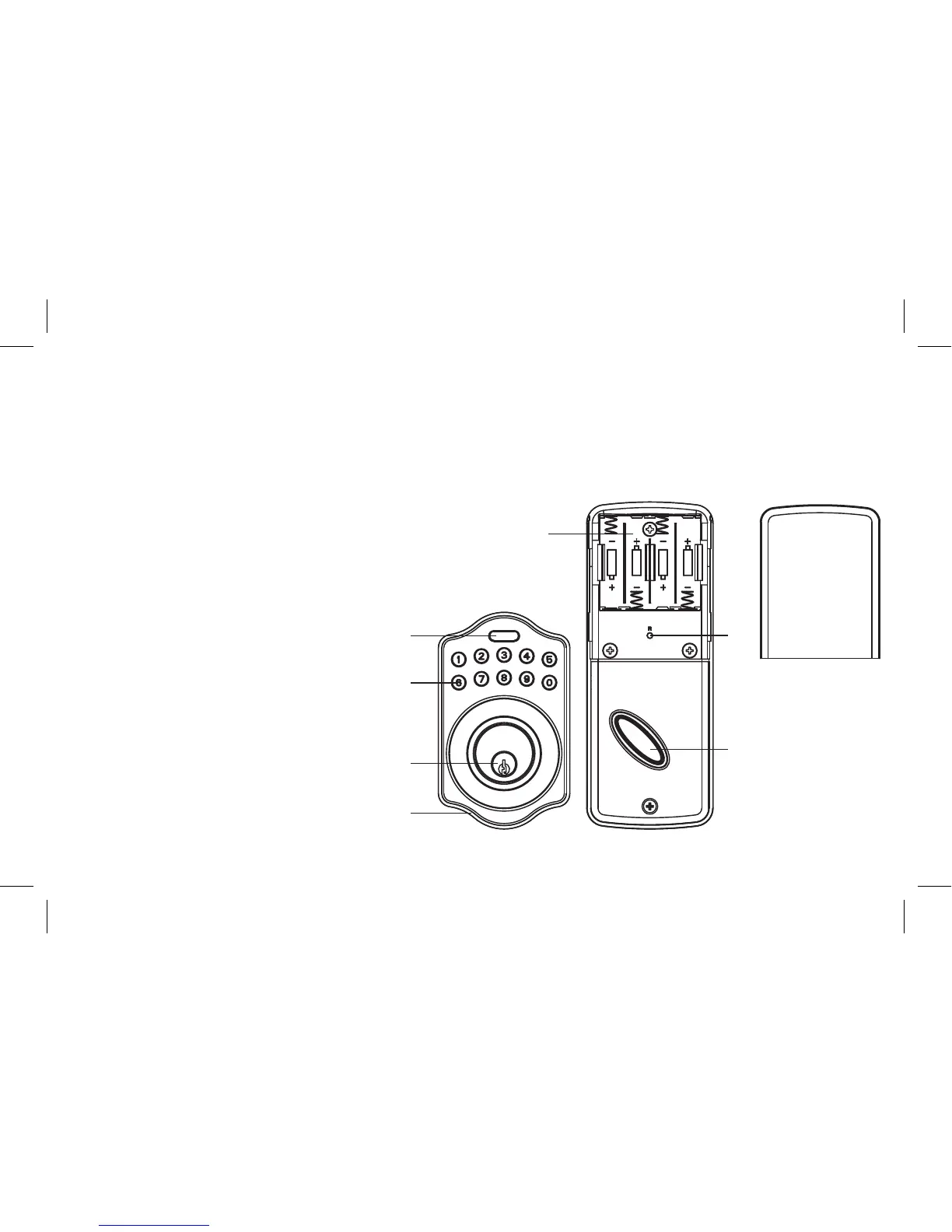

OVERVIEW OF FUNCTIONS
1. PROGRAMMING BUTTON
Programming Button is for entering codes,
clearing errors, and setting functions.
It’s also a “Lock” Button.
2. KEYPAD WITH NUMBER BUTTONS
For inputting codes, 4-10 digits in length.
3. CYLINDER
Retract/Expand latch bolt by key from outside.
4. RUBBER GASKET
To prevent water leaking through
exterior assembly.
5. BATTERY COVER
6. BATTERY HUB
Four (AA) Alkaline Batteries
(sold separately)
7. “R” BUTTON (RESET)
Restore default setting
8. TURN PIECE
Retract/Expand the latch bolt
from inside.
1
2
3
4
6
7
8
5
